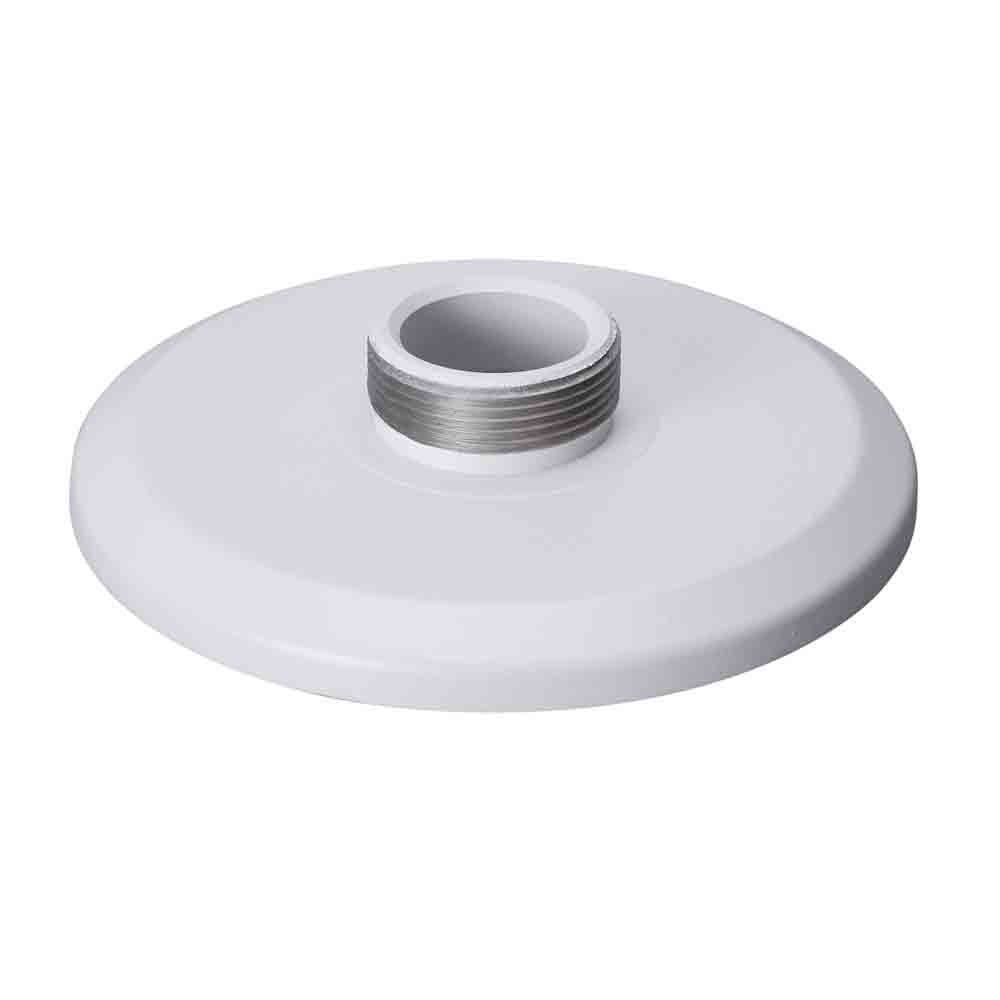

Dahua Hanging Mount bracket (PFA100/101/102/103)
Product Code PFA10X

Dahua Hanging Mount bracket (PFA100/101/102/103)

£15.00
0 reviews | Write a review

  • Description
  • Full Spec
  • Diagram

There are several different hanging mounts available from Dahua - please make sure you select the correct model you need. You can check by downloading the "bracket guide".

Key Features

  • Material: Aluminum
  • Mount Adapter
  • Neat & Integrated design

Compatible with

  • See "Bracket Guide" for compatible products

Download

PFA100 - Manufacturers Spec Sheet (PDF)

PFA101 - Manufacturers Spec Sheet (PDF)

PFA102 - Manufacturers Spec Sheet (PDF)

PFA103 - Manufacturers Spec Sheet (PDF)

Bracket Guide:

You can download the Dahua Bracket Guide here.

General
Model PFA100 PFA101 PFA102 PFA103
Material Aluminum
Dimension (W x H x D) Φ150.8mm x 37mm Φ159mm x 35mm Φ169mm x 37mm Φ133mm x 37mm
Pipe Thread G1 1/2”
Operating Temperature -40°C~+60°C
Humidity 0~90% RH
Load Bearing 3.0kg n/a n/a 3Kg
Weight 0.21kg 0.24kg 0.25kg 0.13kg

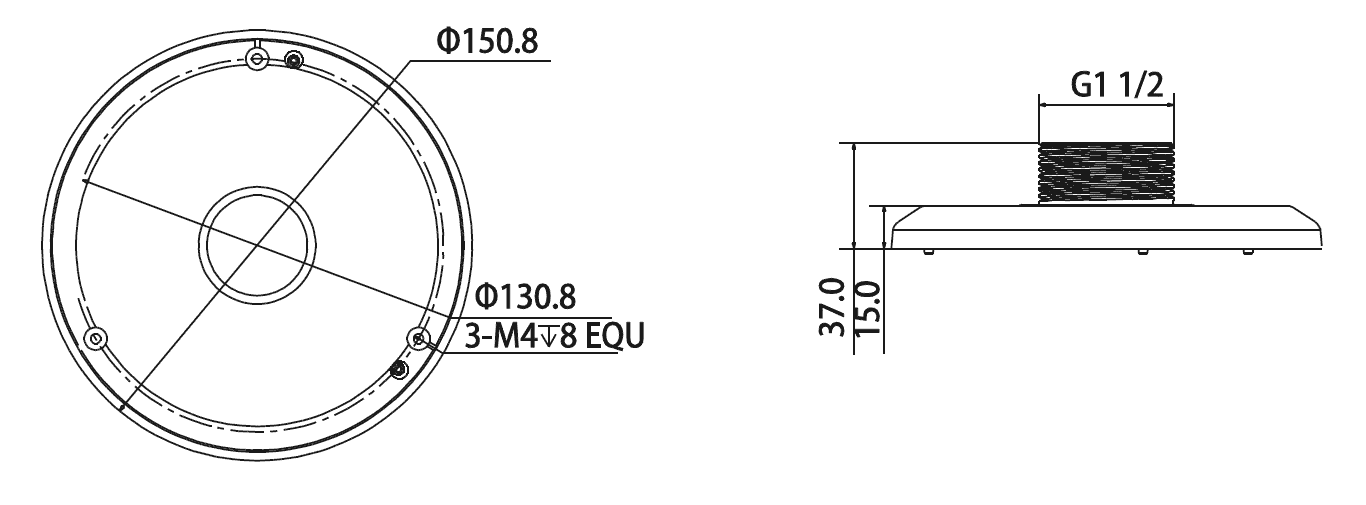

PFA100

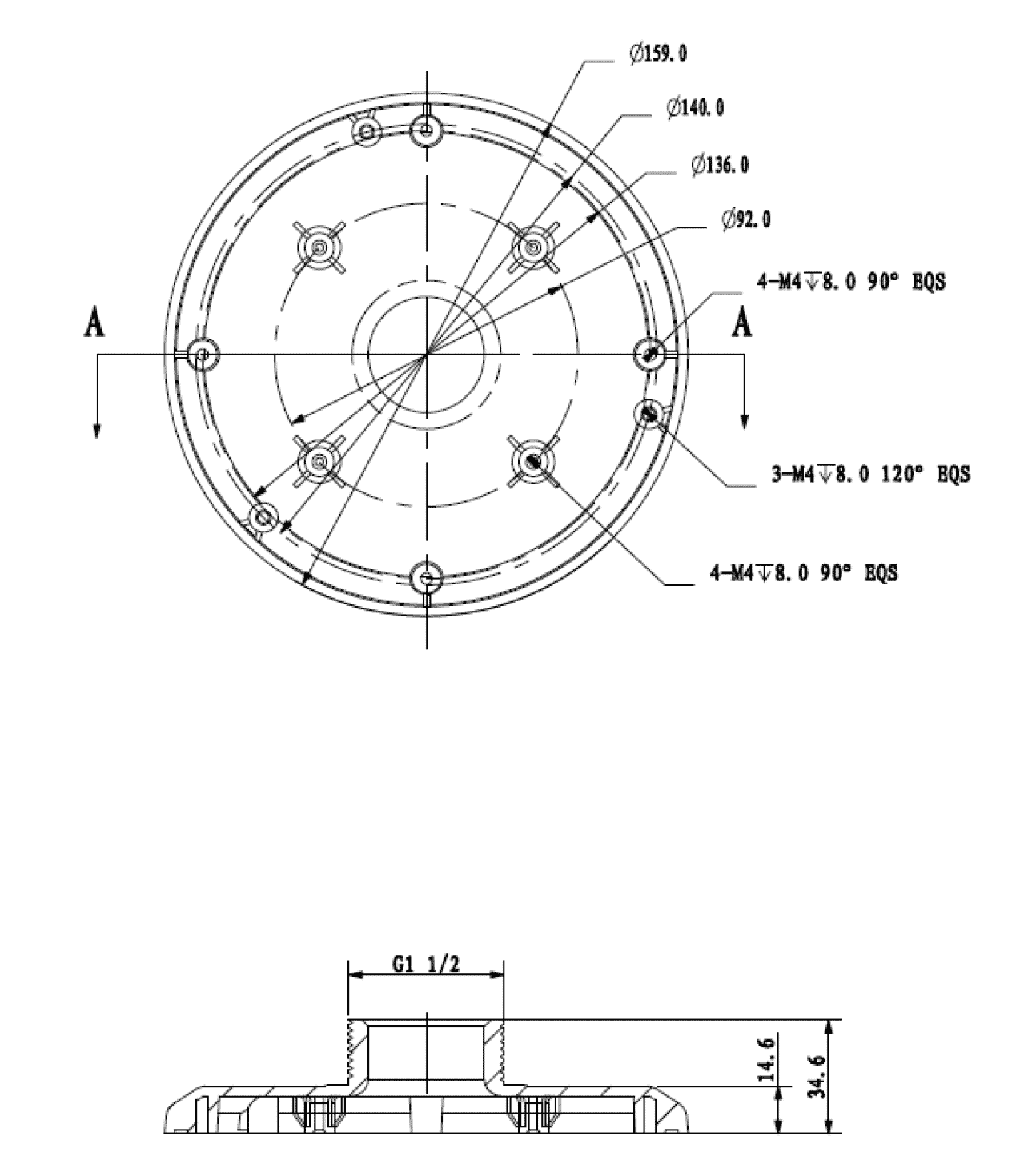

PFA101

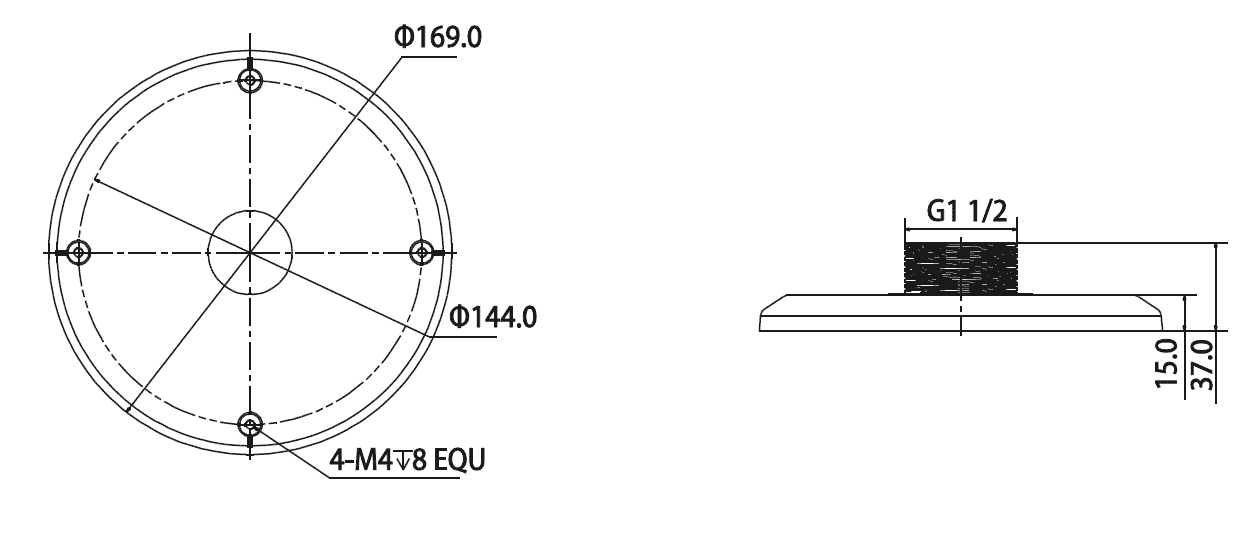

PFA102

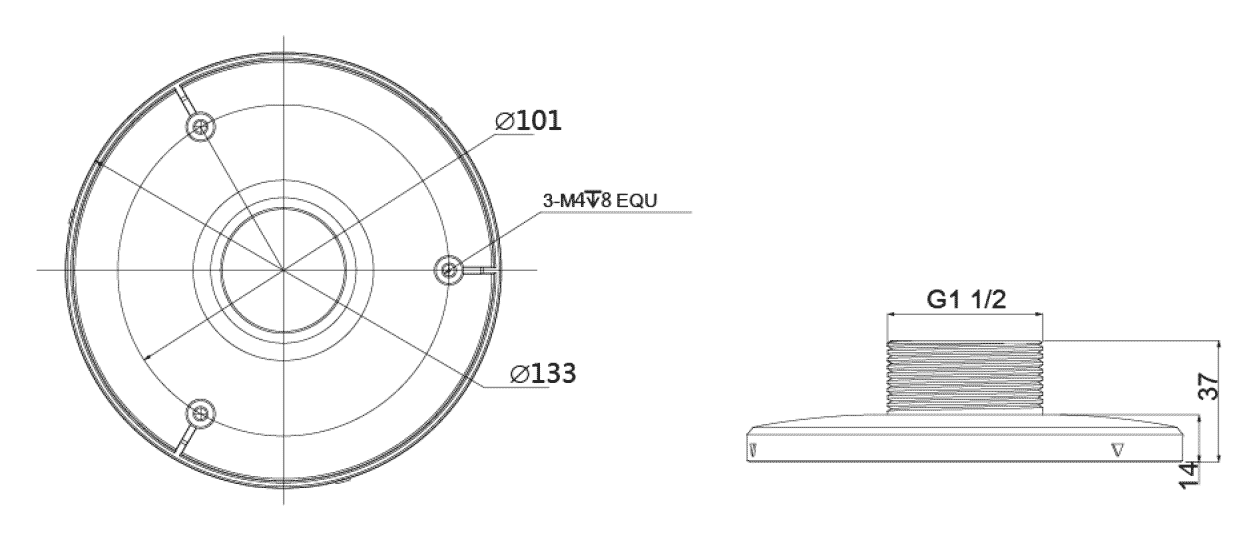

PFA103
