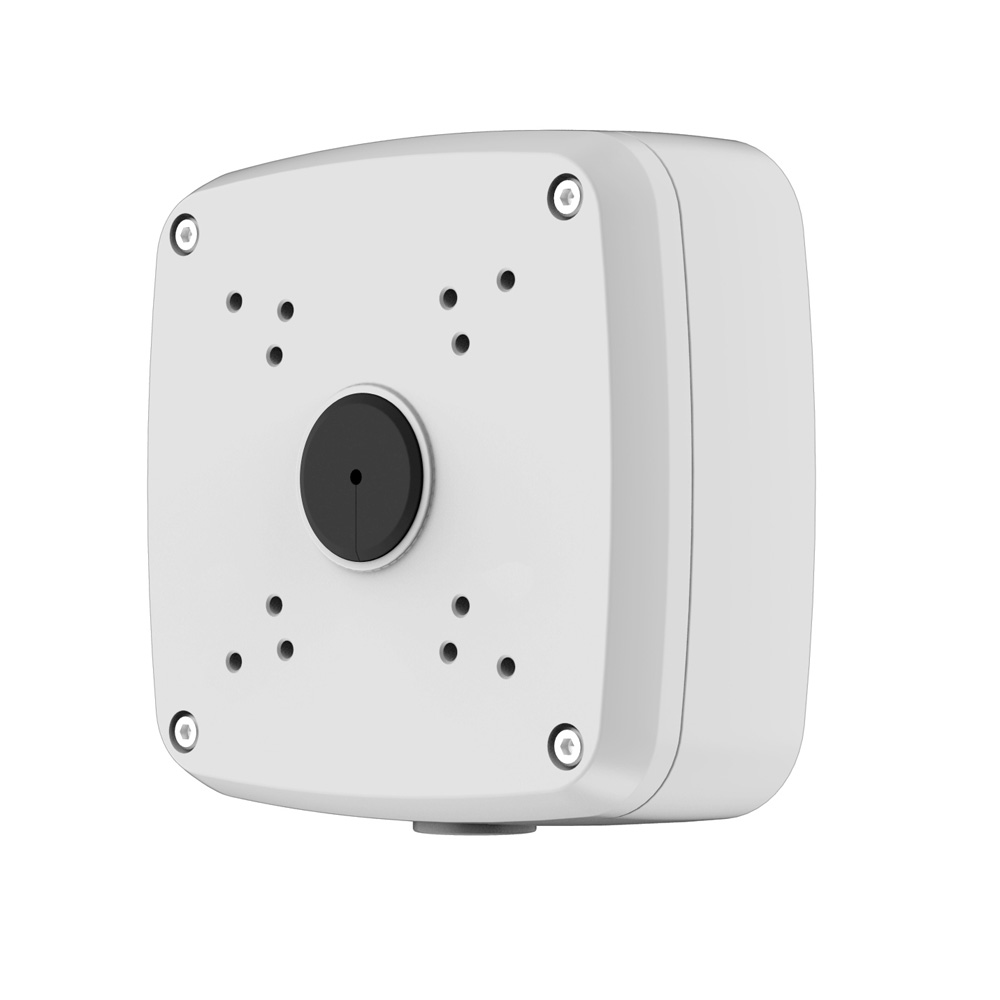

Dahua PFA121 Junction Box for Bullet / Dome Cameras
Product Code PFA121

Dahua PFA121 Junction Box for Bullet / Dome Cameras

Login for Price
0 reviews | Write a review

  • Description
  • Full Spec

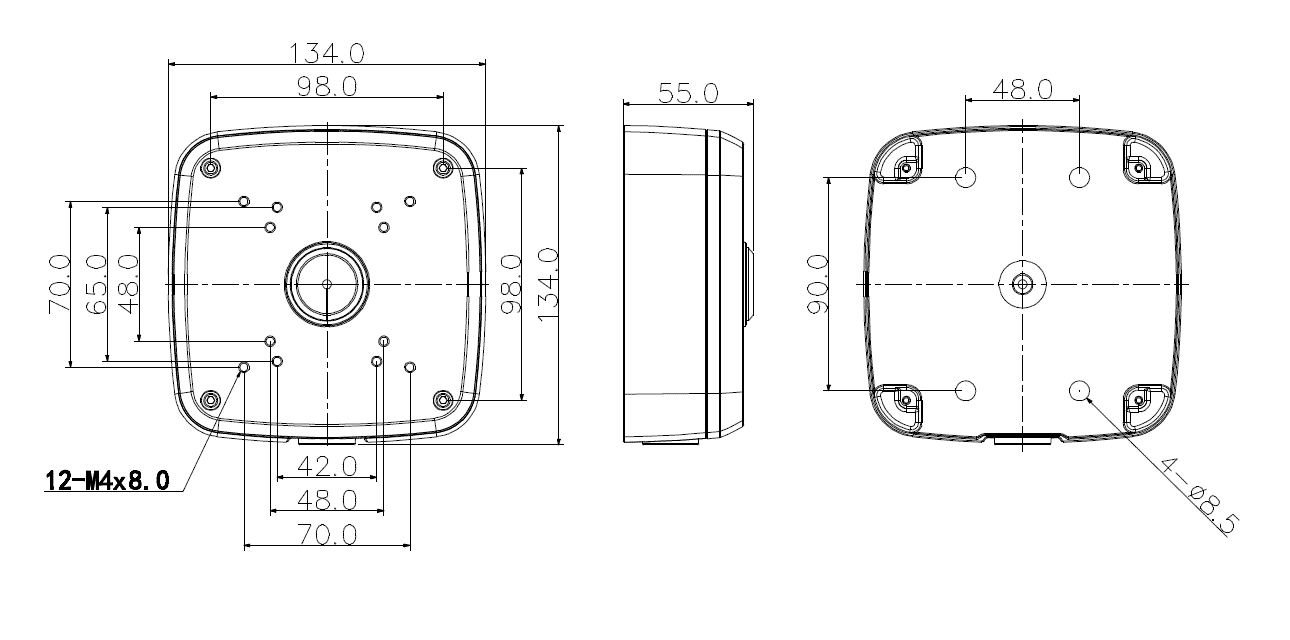

  • Diagram

Key Features

  • Material: Aluminum
  • Junction Box
  • Neat & Integrated design

Compatible with

  • Bullet Cameras:FW181I / HFW2120/2220/2221E / HFW4100/4120/4200/4220/4221/4300/4421E / HFW3220E-Z / HFW5100/5200/5300E-Z/VF, HFW8301E(-Z), HFW5121/5220/5221/5421/8231/8281/8331E-Z, HFW5200E-Z12
  • Dome Cameras: HDW1000/1100/1200/2120/2220M / HDW4120/4220/4421M
  • See "Bracket Guide" for more details.

Download

Manufacturers Spec Sheet (PDF)

Bracket Guide:

You can download the Dahua Bracket Guide here.

General
Material Aluminum
Dimension (W x H x D) 134mm x 134mm x 55mm
Pipe Thread M20(G1/2”)
Operating Temperature -40°C~+60°C
Humidity 0~90% RH
Load Bearing 3.0Kg
Weight 0.55kg
