DS-KB6403-WIP Hikvision 2 MegaPixel WiFi Video Doorbell #1DS-KB6403-WIP Hikvision 2 MegaPixel WiFi Video Doorbell #2DS-KB6403-WIP Hikvision 2 MegaPixel WiFi Video Doorbell #3
Product ID DS-KB6403-WIP

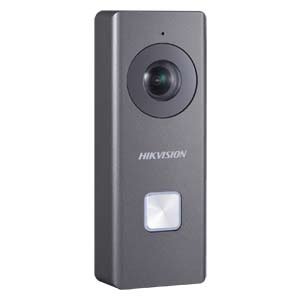

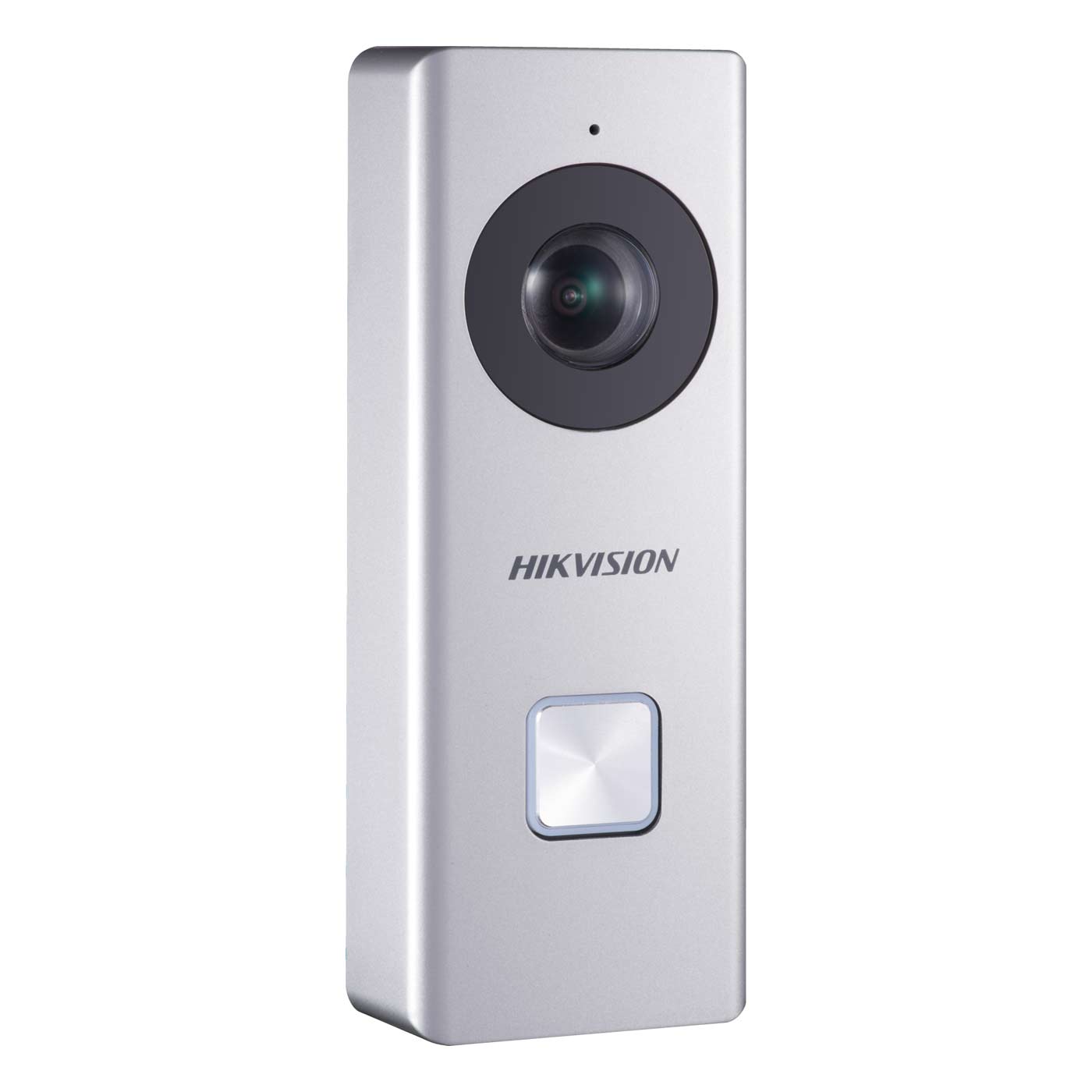

DS-KB6403-WIP Hikvision 2 MegaPixel WiFi Video Doorbell

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec

Comes with 3 different coloured shells - Grey, Silver & Ivory

Key Features

  • Video intercom function, supporting the audiovisual communication   with the mobile App directly
  • Self-adaptive IR supplement with max. 5-meter IR distance
  • High-performance embedded SOC processor
  • IP 54 standard
  • HD video surveillance with ultra-wide angle (180º) and high performance CMOS, up to 1080P
  • Noise suppression and echo cancellation
  • H.264 video compression standard
  • Low illumination
  • Supports voice prompt
  • Volume configuration via App
  • 12V DC Powered (PSU Required)


Manufacturers Spec Sheet (PDF)

Installation Guide

Image Sensor CMOS 2MP HD Colorful Camera
Light sensitivity Low Illumination
Lens f1.96 mm, F 2.2
Field of view 180º (Horizontal), 96º (Vertical)
Video compression standard H.264
Video streaming Main Stream: 1080P, Sub-Stream: VGA
WDR Support
Audio Two-Way, Full Duplex
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Network protocol TCP/IP, RTSP
Network interface 1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz
Motion Detection Supported
TF card Max. 128 G
Ingress protection level IP 54
Power Supply 12 VDC
Power Consumption Max. 0.6W
Working temperature -30° C to +50° C (-22° F to 122° F)
Dimensions 122.4 mm x 45.9 mm x 28.1 mm
