Product ID THC-B340-VF

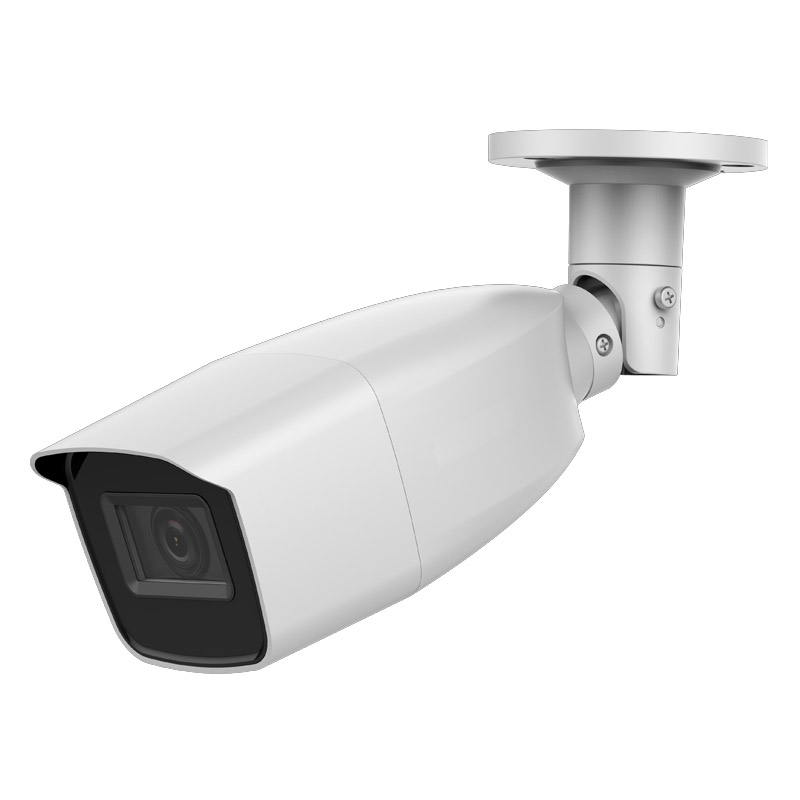

THC-B340-VF HiWatch by Hikvision HD-TVI 4MP Vari-Focal Bullet Camera with 40M IR Night Vision

In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram


The THC-B340-VF offers 4MP HD resolution at very competitive price, ideal for home or small business security. The camera can be installed indoors or outdoors and provides night vision up to a maximum of 40 metres.

The THC-B340-VF has a 2.8 to 12mm lens which provides an angle of view of 32.6° to 108.4° - suitable for many applications.

Key Features

  • 4 MP high-performance CMOS
  • 2560 × 1440 resolution
  • 2.8-12mm fixed lens - FOV 32.6° to 108.4°
  • Day/Night switch
  • up to 40m EXIR distance
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof


Manufacturers Spec Sheet (PDF)


We strongly advise using with HD-TVI recorders.

Image Sensor 4 MP CMOS image sensor
Effective Pixels 2560 (H) × 1440 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8-12mm - Angle of View: 32.6° to 108.4°
Lens Mount Φ14
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 4 MP@12.5fps, 4 MP@25fps, 1080p@25fps
AGC High/Medium/Low/Off
D/N Mode Auto/Color/BW (Black and White)
BLC Support
DWDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
HD Video Output 1 Analog HD output
Switch Button TVI/AHD/CVI/CVBS
Operating Conditions -40 °C to 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 5.2W
Protection level IP66
Material Front Cover: Metal
Main Body: Plastic
Bracket: Metal
IR Range up to 40m

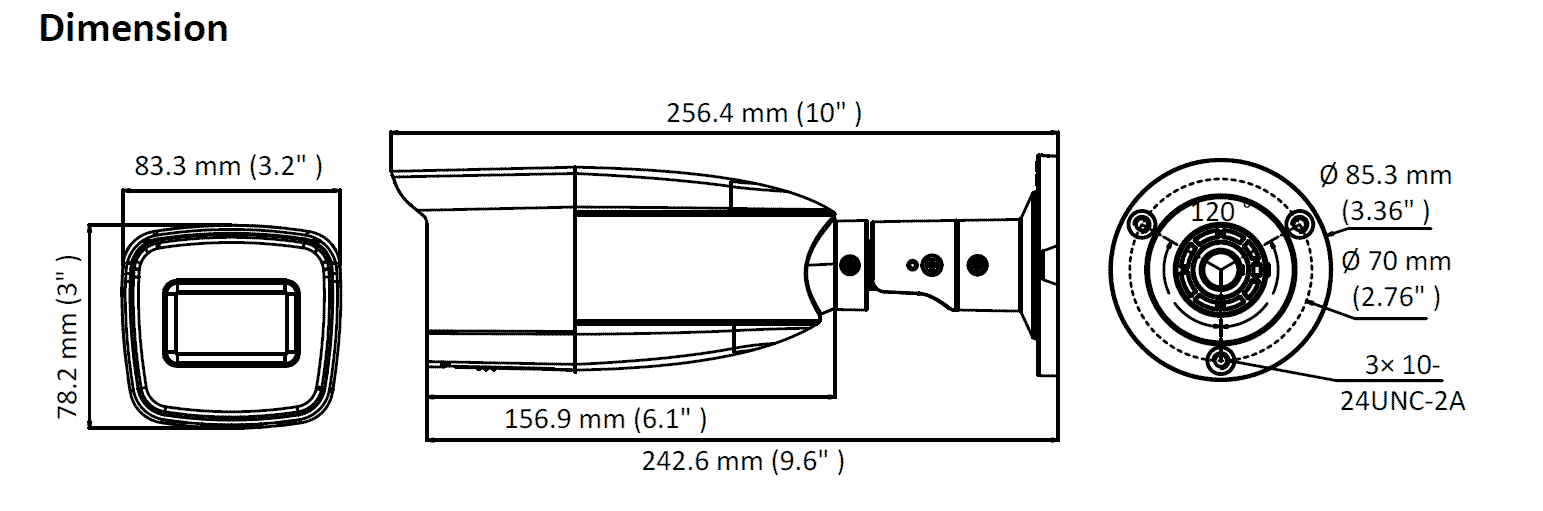

Dimensions 256.4 mm × 83.3 mm × 78.2 mm
Weight Approx. 605g

Product Reviews
Be the first to review this product
