Product ID THC-T223-M

THC-T223-M HiLook by Hikvision HD-TVI Ultra Low Light 1080P Dome Camera with 50M EXIR Night Vision

In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram


It offers 1080P HD resolution at very competitive price, ideal for home or small business security. The camera is nice and discreet, it can be installed indoors or outdoors and provides night vision up to a maximum of 50 metres.

The THC-T223-M has a 2.8mm lens which provides an angle of view of 106° - suitable for many applications.

On top of this it also has an Ultra Low Light image sensor which means it will stay as a colour image longer than most cameras, and when it does switch over to night vision this will be sharper and clearer than the standard version. This model also supports True 120dB WDR (Wide Dynamic Range), again improving the cameras ability to see better in different lighting levels.

Key Features

  • 2 Megapixel High Performance CMOS
  • 1920 × 1080 resolution
  • 2.8mm fixed lens - FOV 106°
  • Day/Night switch
  • up to 50m EXIR distance
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof
  • Ultra Low Light


Manufacturers Spec Sheet (PDF)


We strongly advise using with HD-TVI recorders.

Image Sensor 2 MP CMOS image sensor
Effective Pixels 1920 (H) × 1080 (V)
Min. Illumination 0.005 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Slow Shutter Max 16x
Lens 2.8mm - Angle of View: 106°
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080P @25fps
WDR 120dB
AGC High/Medium/Low/Off
D/N Mode Auto/Color/BW (Black and White)
BLC Support
WDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
HD Video Output 1 Analog HD output
Switch Button TVI/AHD/CVI/CVBS
Operating Conditions -40 °C to 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4.6W
Protection level IP66
Material Metal
IR Range up to 50m

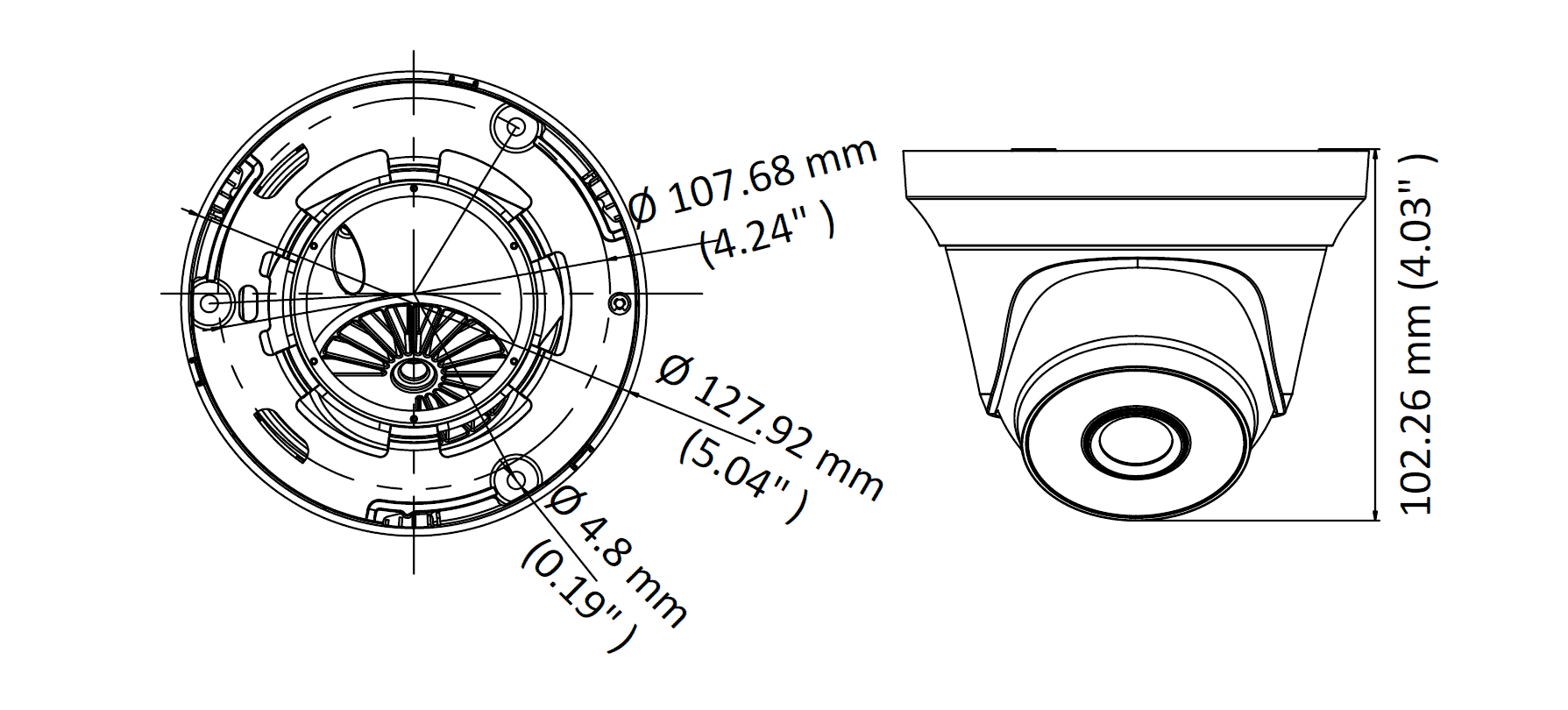

Dimensions Ø 127.92 mm × 102.26 mm
Weight Approx. 440g
