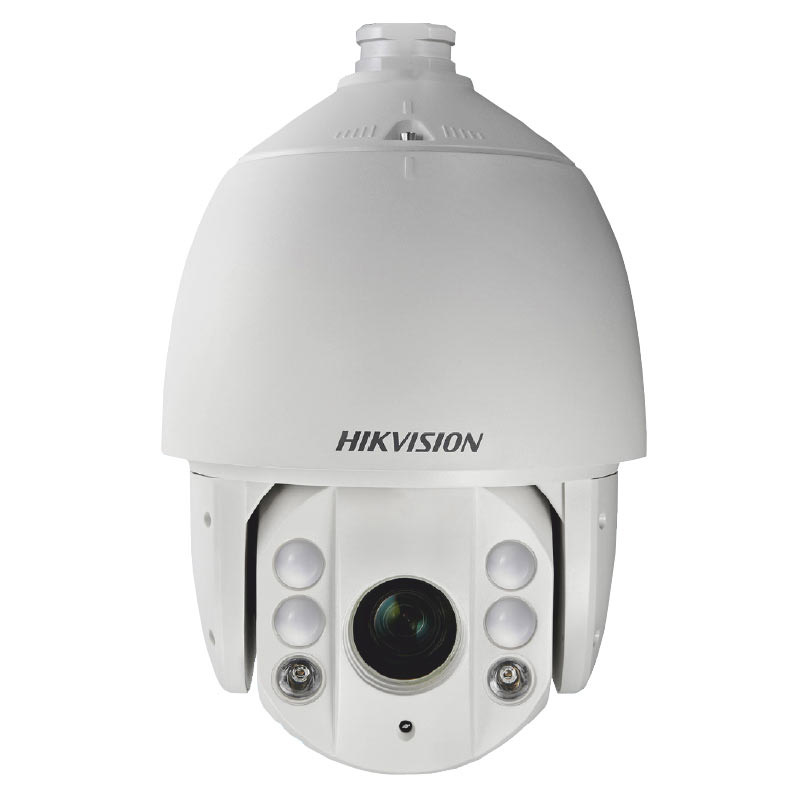

DS-2AE7230TI-A Hikvision HD-TVI 1080P Pan Tilt & 30X Zoom Camera with 120M Night Vision
Product ID DS-2AE7230TI-A

DS-2AE7230TI-A Hikvision HD-TVI 1080P Pan Tilt & 30X Zoom Camera with 120M Night Vision

Login for Price
0 reviews | Write a review
2 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

CCTV Camera Description

The Hikvision DS-2AE7230TI-A is an amazing camera, it provides full HD 1080P resolution and has full control of Pan Tilt & Zoom - with up to 30 Times Zoom! Some of the other great features of this CCTV camera include a 2MP CMOS image sensor, built in IR with a range of up to 120m and true day / night. 3D intelligent positioning is also very useful tool allowing users to track and zoom in on anything that may be deemed suspicious. Other more advanced features include 3d DNR (digital noise reduction), and privacy masking (the ability to hide certain objects from the camera).

Key features of DS-2AE7230TI-A

  • 2MP CMOS Image Sensor
  • Full HD 1080P Video Output
  • 30X optical zoom, 16X digital zoom
  • Privacy Masking, 3D DNR, D WDR, EIS
  • 3D intelligent positioning
  • True Day / Night

Download Hikvision Specification Sheet

Manufacturers Spec Sheet (PDF)

Compatibility

To make full use of the motorised pan tilt & zoom camera we strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 1/3" CMOS
Effective Pixels 1920 x 1080
Signal System PAL / NTSC
Min. Illumination Color: 0.02Lux@( F1.6, AGC ON) ; B / W: 0.002Lux@( F1.6, AGC ON), 0 Lux with IR
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S/N Ratio More than 50dB
3D DNR Support
Digital WDR Support
EIS Support
Backlight Compensation Support
Shutter Time 1/1s~1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-120mm, 30X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 58-1.7 degree(Wide-Tele)
Min. Working Distance 10-1500mm (Wide-Tele)
Max Aperture F1.6~F4.4
Pan and Tilt
Pan Range 360° endless
Pan Speed Pan Manual Speed: 0.1°-160° / s; Pan Preset Speed: 240° / s
Tilt Range -15°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°-120° / s; Tilt Preset Speed: 200° / s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication diagnosis Support
Infrared
IR Distance 120m
IR Intensity Automatically adjusted, depending on the zoom ratio
Input / Output
Monitor Output HD 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function HIKVISION_C(need UTC controller)
General
Menu Language English, Chinese
Power 24VAC, Max. 50W
Working Temperature / Humidity -30°C~+65°C / 90% or less
Protection Level IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection

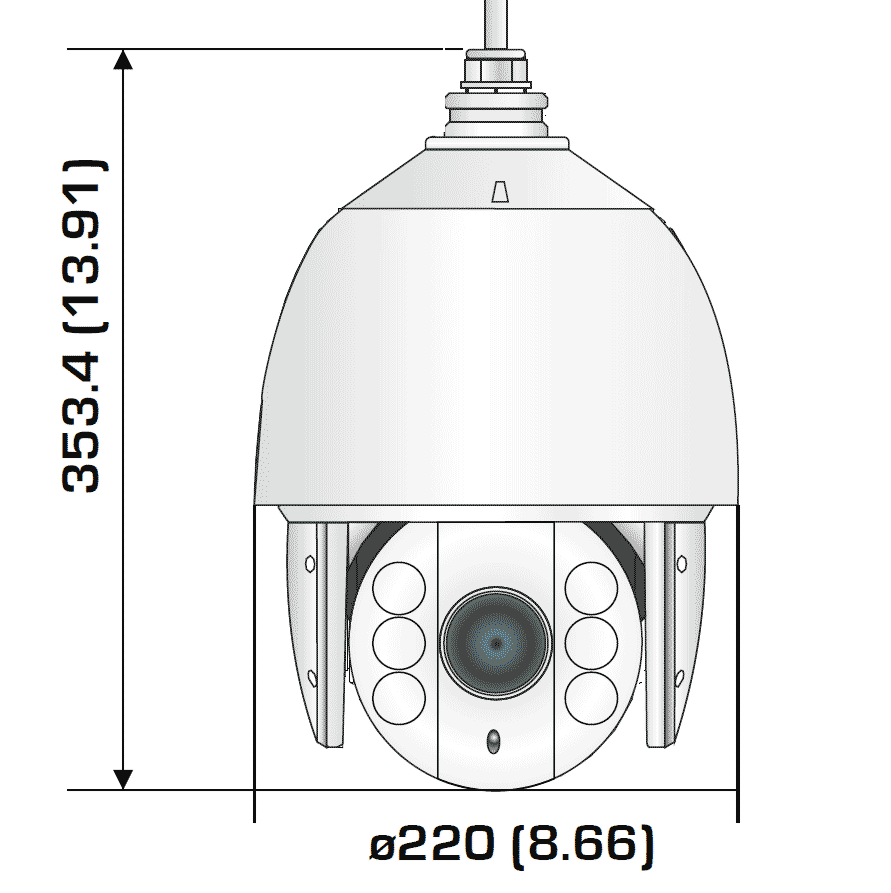

Dimensions Φ220 x 353.4mm
Weight 4.5kg
