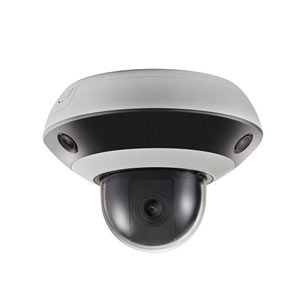

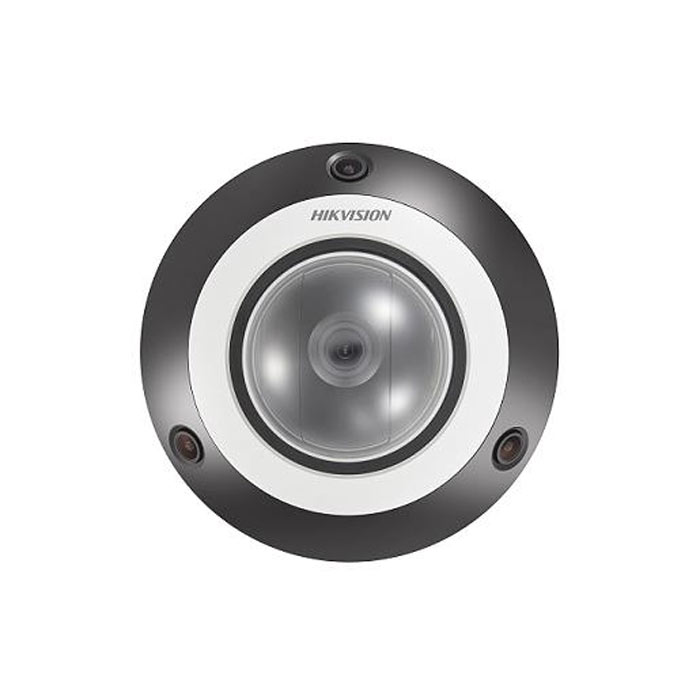

DS-2PT3326IZ-DE3 Hikvision 3x 1080P PanoVu series panoramic and PTZ camera with 10m Night Vision and Hi PoE

Product ID DS-2PT3326IZ-DE3
0 reviews | Write a review
Trade Only Item
DS-2PT3326IZ-DE3 Hikvision 3x 1080P PanoVu series panoramic and PTZ camera with 10m Night Vision and Hi PoE #1DS-2PT3326IZ-DE3 Hikvision 3x 1080P PanoVu series panoramic and PTZ camera with 10m Night Vision and Hi PoE #2
Trade Only Item
Quantity
-
+
2 Year Warranty
IP CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Description

The Hikvision DS-2PT3326IZ-DE3 is four cameras in one, which includes 3x fixed 2.0mm lenses that capture panoramic views in three directions (each lens covering 128.5°) and then 1x central PTZ with 2.8-12mm lens for capturing more zoomed in views for greater detail.

A great camera if you need to cover an entire room / area and can replace up to 4 normal IP cameras, whilst still having the option of zooming in for even more detail.

On top of this multi-views the DS-2PT3326IZ-DE3 also supports Micro SD card recording, so you can not only record on to your Hikvision NVR but you can have a second short term recording taking place on the camera itself. Perfect for high risk areas or as back up in case the NVR is compromised.

Be aware each lens takes up 1ch on your NVR - so you need 4 channels to utilise this camera, all this through 1x Cat5 cable! It also supports PoE+ so you can power it using a suitable PoE+ device via the same Cat5 cable.

Panoramic Camera

  • Three 1/2.8" progressive scan CMOS
  • Up to 3× 1920 x 1080 resolution @25fps
  • 3x 2.0mm Lens - Horizontal field of view: 128.5°
  • Min. illumination: Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR
  • IR distance: 10m

PTZ Camera

  • 1/2.8" progressive scan CMOS
  • Up to 1920 x 1080 resolution @25fps
  • 2.8 mm to 12 mm, 4× optical zoom - Horizontal field of view: 120°-56.6°
  • Min. illumination: Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR
  • IR distance: 10m

Download

Manufacturers Spec Sheet (PDF)

Panoramic Camera
Image Sensor Three 1/2.8" Progressive Scan CMOS
Max. Image Resolution 3x 2MP lens
Min. Illumination Color: 0.05 Lux @(F2.0, AGC ON), B/W: 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Lens 2.0mm/F1.6, horizontal field of view: 128.50°
Audio Exception Detection Support
Main Stream 16:9
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704×576,640×480,352×288)
Image Compressio H.265/H.264/MJPEG
Others 10m IRm, 3D DNR, HLC, Motion Detection, Video Tampering Detection
Tracking PTZ Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Image Resolution 2MP
Min. Illumination Color: 0.05 Lux @(F2.0, AGC ON), B/W: 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Focal Length 2.8 to 12mm, 4× optical zoom
Main Stream 16:9
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704×576,640×480,352×288)
Image Compressio H.265/H.264/MJPEG
Others Optical WDR, Digital Defog, HLC, Smart IR, EIS, 3D DNR
Pan and Tilt (Tracking PTZ Camera)
Range Pan: 350°, Tilt: 0° to 90°
Speed Pan Manual Speed: 0.1°/s to 30°/s (Configurable), Pan Preset Speed: 30°/s
Tilt Manual Speed: 0.1°/s to 30°/s (Configurable), Tilt Preset Speed: 30°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 54 patterns, with the recording time not less than 10 minutes per pattern
Park Action Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
Scheduled Task Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output
Power-off memory Support
System Integration
Ethernet 1 RJ45 10M / 100M Ethernet interface / PoE+
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Operating Conditions -10 °C ~ 50 °C (14°F ~ 122°F) humidity 90% or less (non-condensing)
Power Supply DC12V (Max 24W) / PoE+ (Max 25W)
Protection Level IP54 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Weather Proof Ratings n/a - Indoor ONLY
Impact Protection n/a

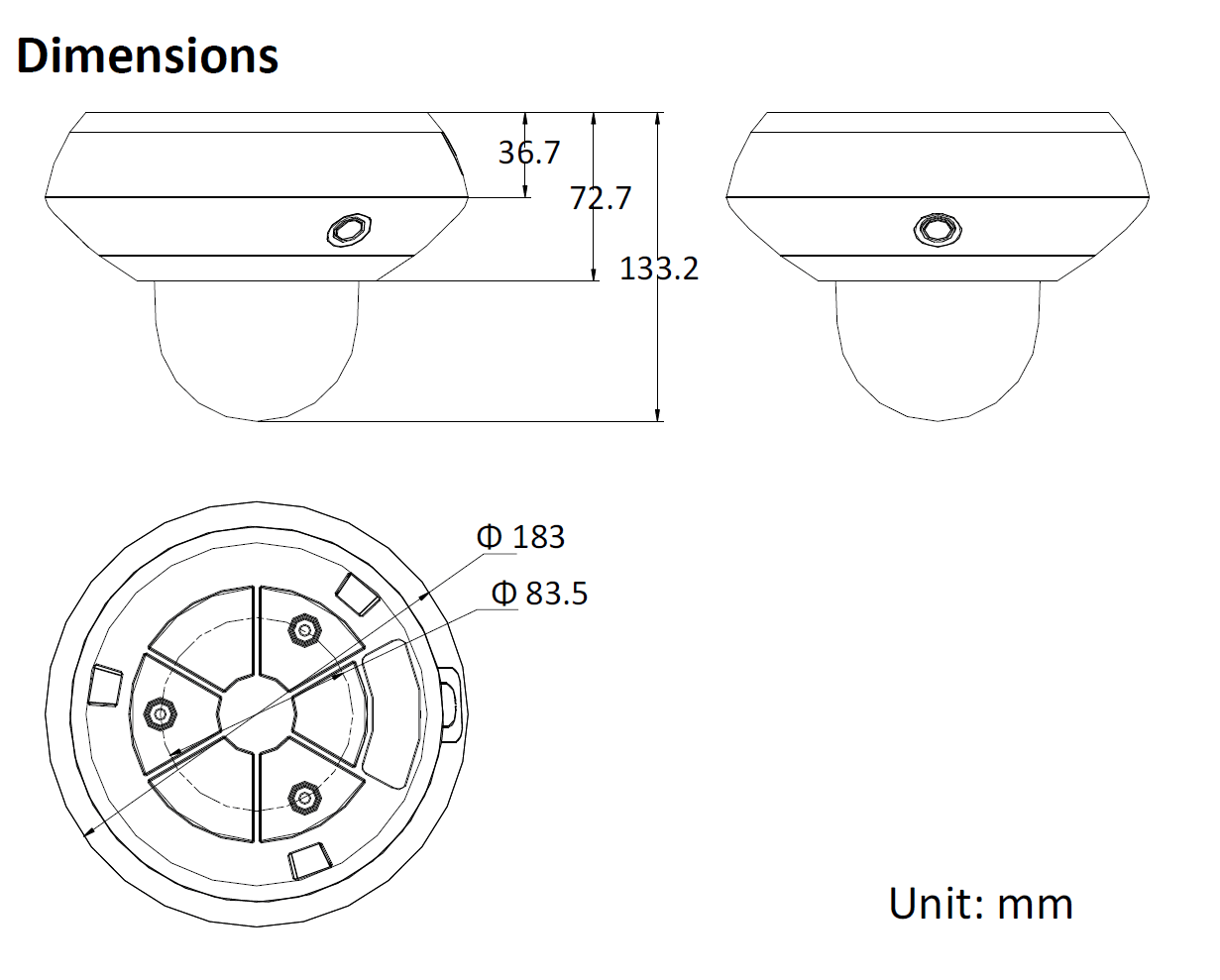

Dimensions Camera: Φ183 × 133.2 mm
Package: 150 × 150 × 141
Weight Approx. 900g

dvr dimensions
