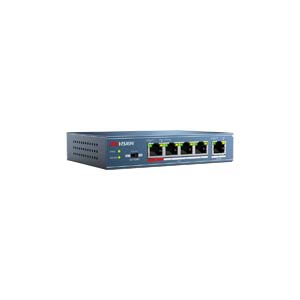

DS-3E0105P-E Hikvision 4 Ports 100Mbps Unmanaged PoE Switch with 1 x Uplink
Product ID DS-3E0105P-E

DS-3E0105P-E Hikvision 4 Ports 100Mbps Unmanaged PoE Switch with 1 x Uplink

Trade Only Item
In Stock 0
0 reviews | Write a review
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

Description

DS-3E0105P-E is an 4 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc.

Key Features

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • 4 x 10/100Mbps Auto-MDIX PoEports
  • Provides up to 30 watts per PoE port
  • PoE power budget 58W
  • 4 kV surge protection for PoE ports
  • IEEE 802.3x flow control support
  • Plug-and-play installation
  • 1 Gbps switching fabric
  • 448 Kbits RAM Data Buffer
  • 1K MAC address entries

Download

Manufacturers Spec Sheet (PDF)

Ports
Network Ports 5
PoE Port 4, 10/100Mbps RJ45 ports
Uplink Port 1, 100M Ethernet Port
Standard
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity 1Gbps
Max. Forwarding Rate 0.74Mpps
High Priority Ports Port 1
Forwarding Mode Store-and-forward
MAC Address Table 1k
Flow Control IEEE802.3x full duplex
PoE
PoE Standard IEEE802.3af, IEEE802.3at
PoE Power Budget 58W
Working Mode Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply 51V DC, 1.25A
Power Consumption Max. 63W
Surge Protection 4KV
Working Conditions 0 °C – 40 °C; Humidity 10-90% (non-condensing)
Storage Conditions -40 °C – 70 °C; Humidity 5-90% (non-condensing)
Dimensions 132 mm x 93.3mm x 27.6mm
Weight Approx. 299g
