DS-7604NI-K1-4P Hikvision 4 Channel 4K NVR with 4 PoE ports

Product ID DS-7604NI-K1-4P

Trade Only Item

In Stock 0

DS-7604NI-K1-4P Hikvision 4 Channel 4K NVR with 4 PoE ports

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Free Shipping

Summary
Full Spec

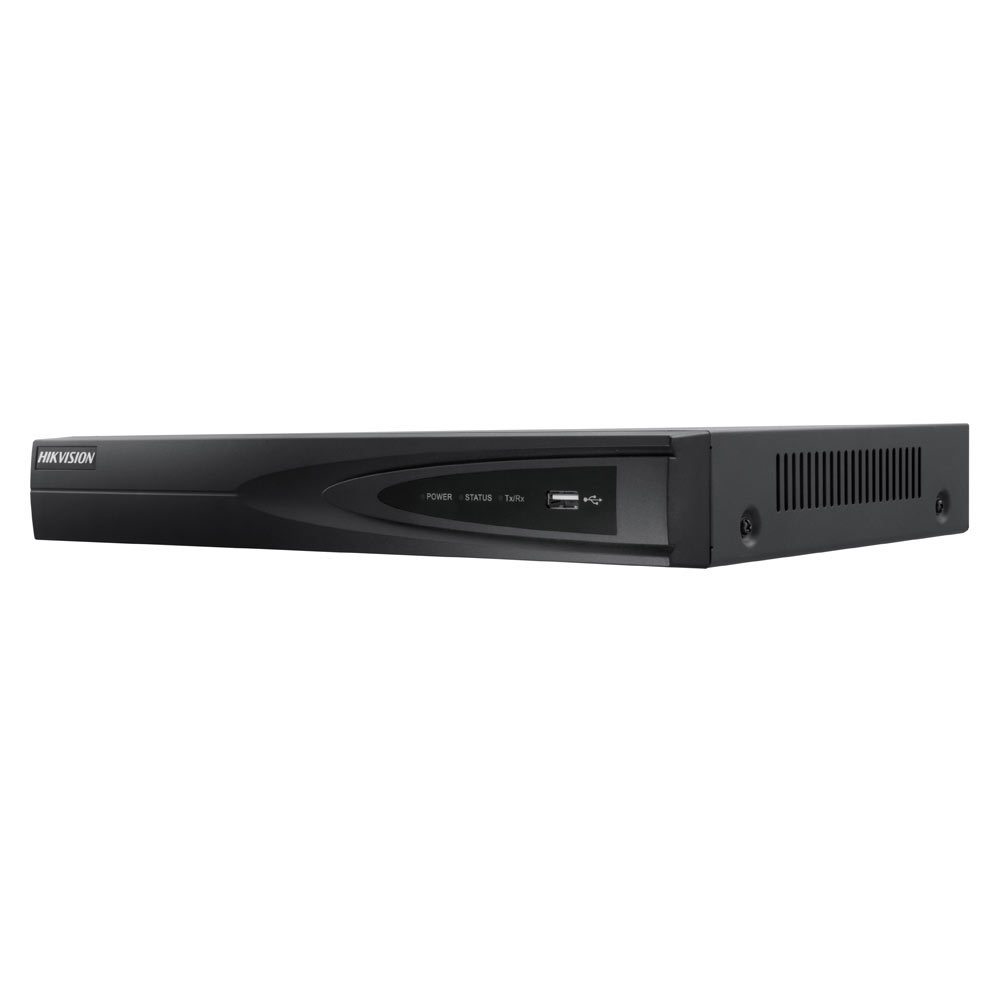

The DS-7604NI-K1-4P is a Hikvision 4 channel 4K NVR with 4 built in PoE ports.

Each camera plugs straight in with one network cable. It records up to 8MP (4K) per channel and has a 4K HDMI output. The hard drive isn't included. It works with the free Hik-Connect app.

Key CCTV Recorder Features

4CH Video Input
40Mbps incoming bandwidth
Up to 8 Megapixels (4k UHD) resolution recording
HDMI (HMDI at up to 4K(3840x2160)) and VGA Output
Plug & Play with up to 4 independent PoE network interfaces
Support H.265/H.264/MPEG4 video formats

Download Hikvision Specification Sheet

Manufacturers Spec Sheet (PDF)

Video/Audio Input
IP video input	4CH
Two-way audio input	1CH, RCA (2.0 Vp-p, 1 kΩ)
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	80Mbps
Video/Audio Output
HDMI output	1-ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output	1-ch, RCA (Linear, 1 kΩ)
VGA Output	1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz
Decoding
Live view / Playback	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability	4-ch@1080P
Hard Disk
SATA	1 SATA interface for 1 HDD
Capacity	Up to 6TB capacity for each HDD
External Interface
Network interface	1 x RJ-45 10/100Mbps self-adaptive Ethernet interface
USB interface	2 × USB 2.0
Alarm Input	n/a
Alarm Output	n/a
PoE
Interface	4 independent 10 /100 Mbps PoE Ethernet interfaces
General
Power supply	48 VDC
Consumption	Max 10W
Working temperature	0 °C ~ +40 °C
Working humidity	10% ~ 90%
Chassis	315mm chassis
Dimensions (W x D x H)	315 × 240 × 48 mm
Weight	Approx. 1Kg (without hdd)
