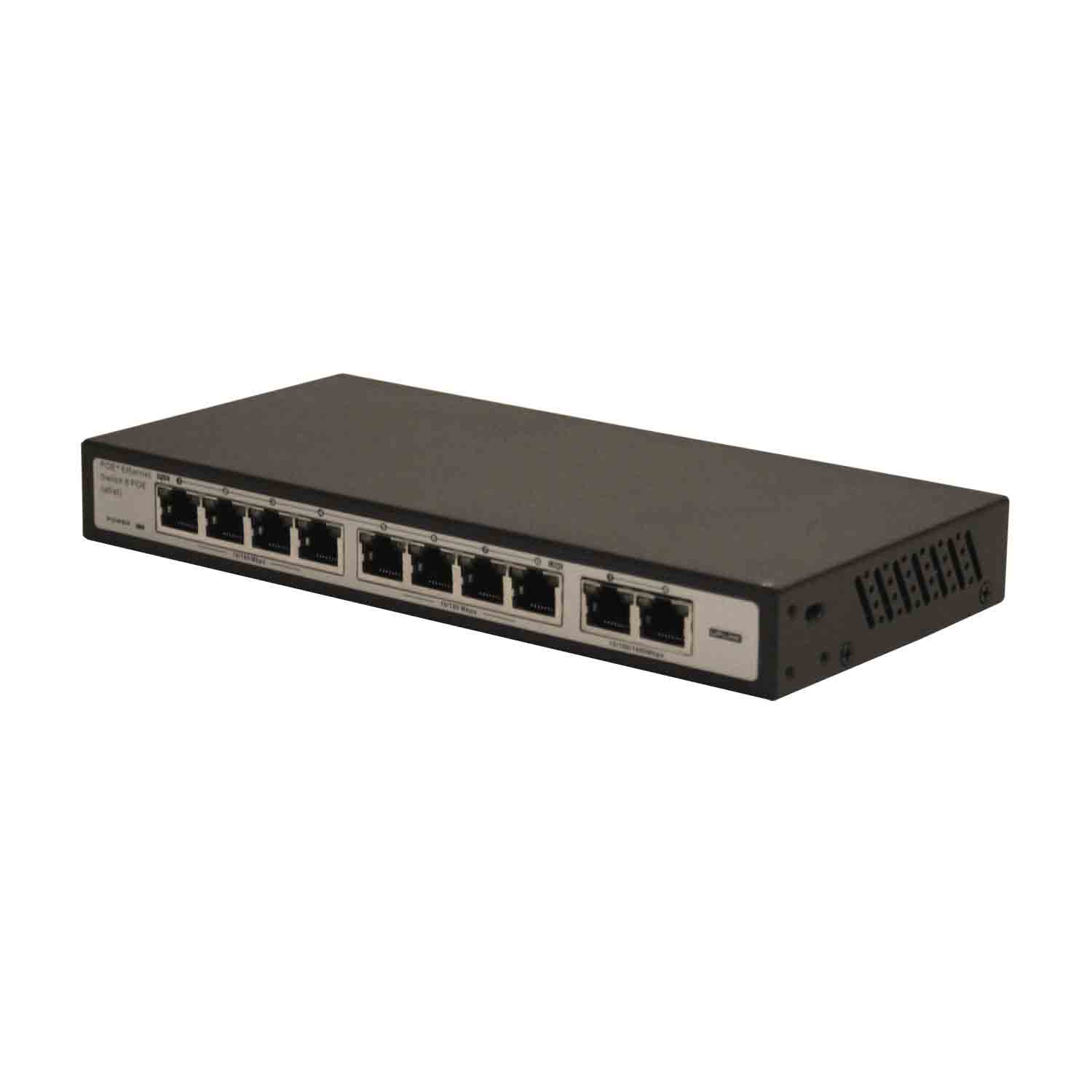

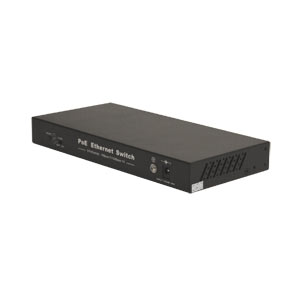

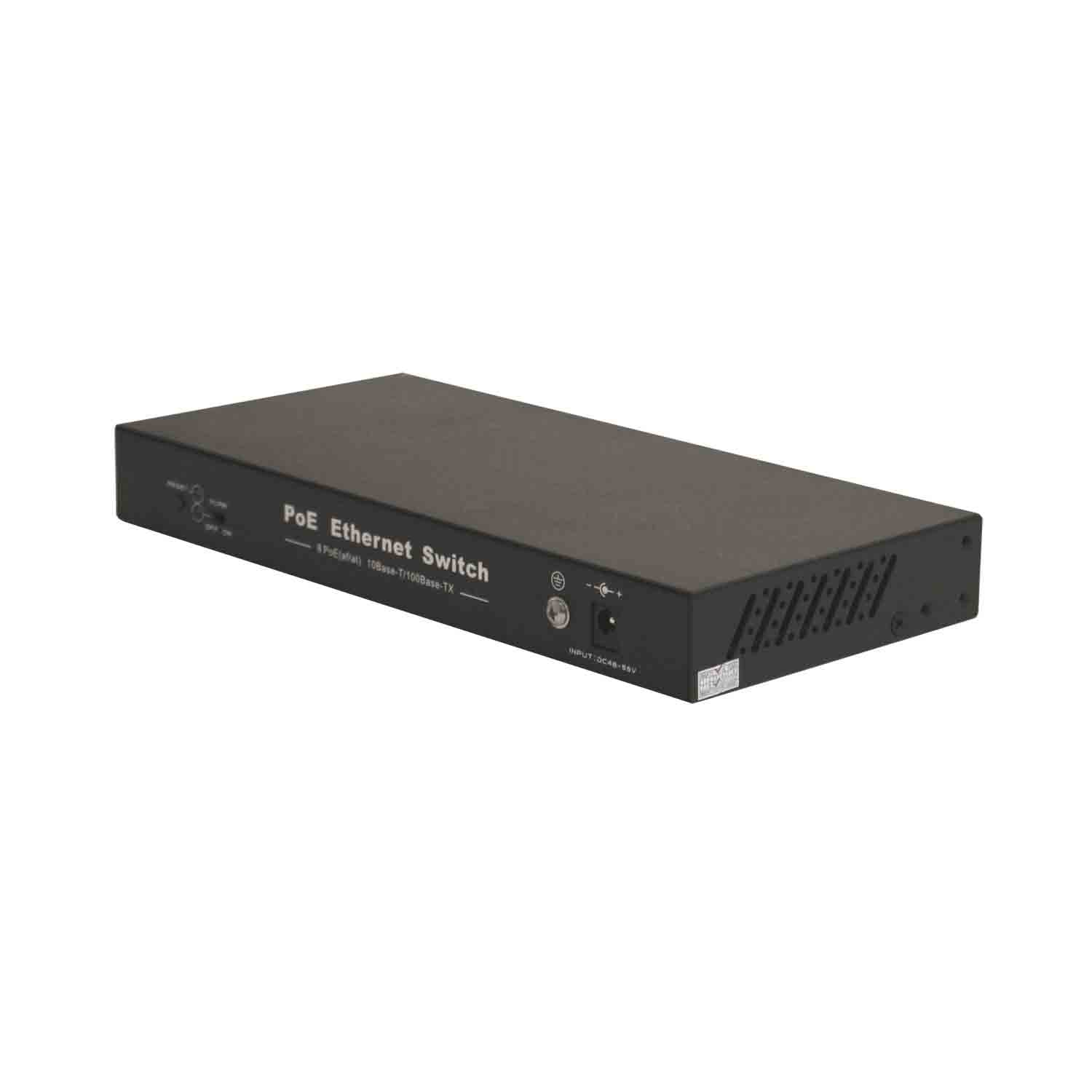

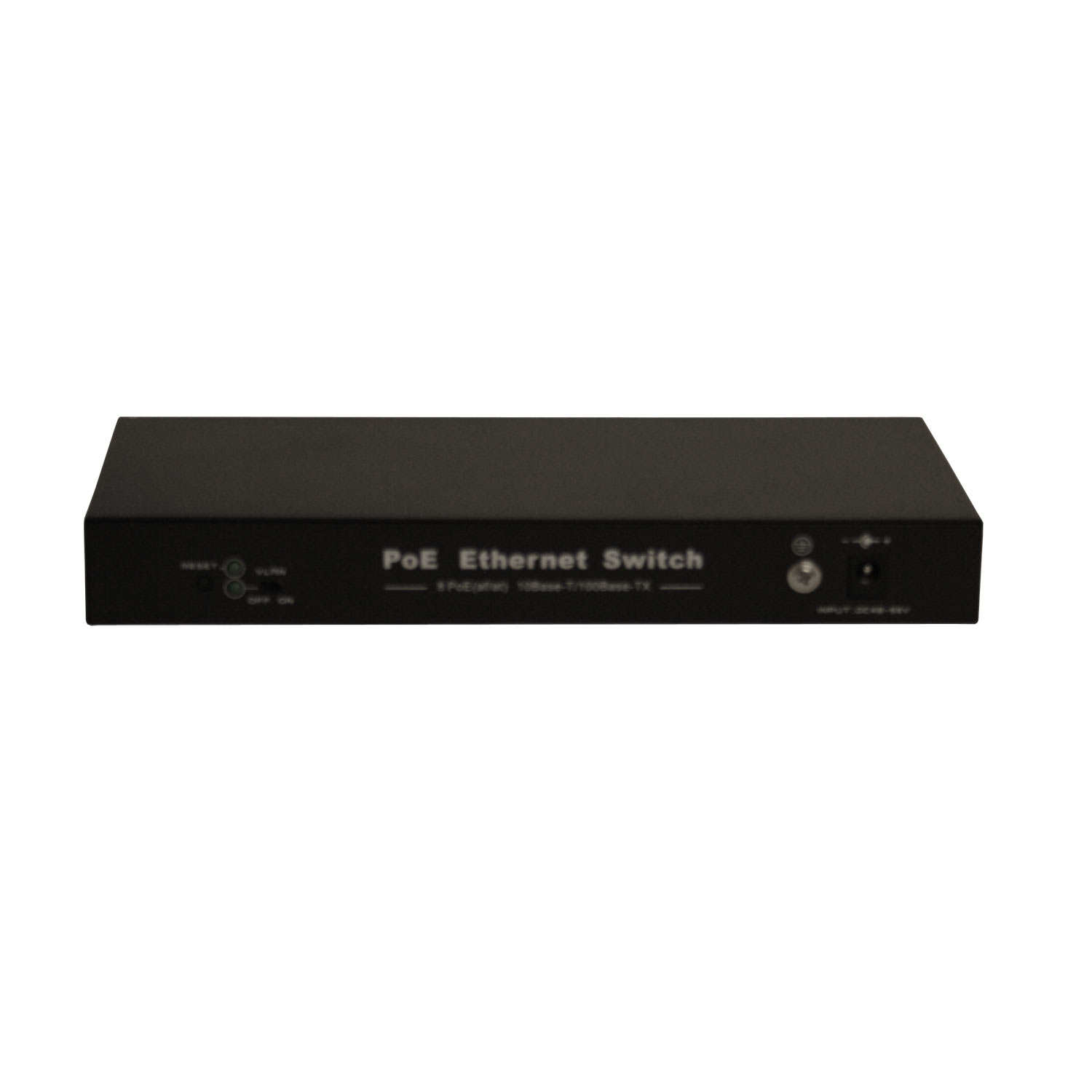

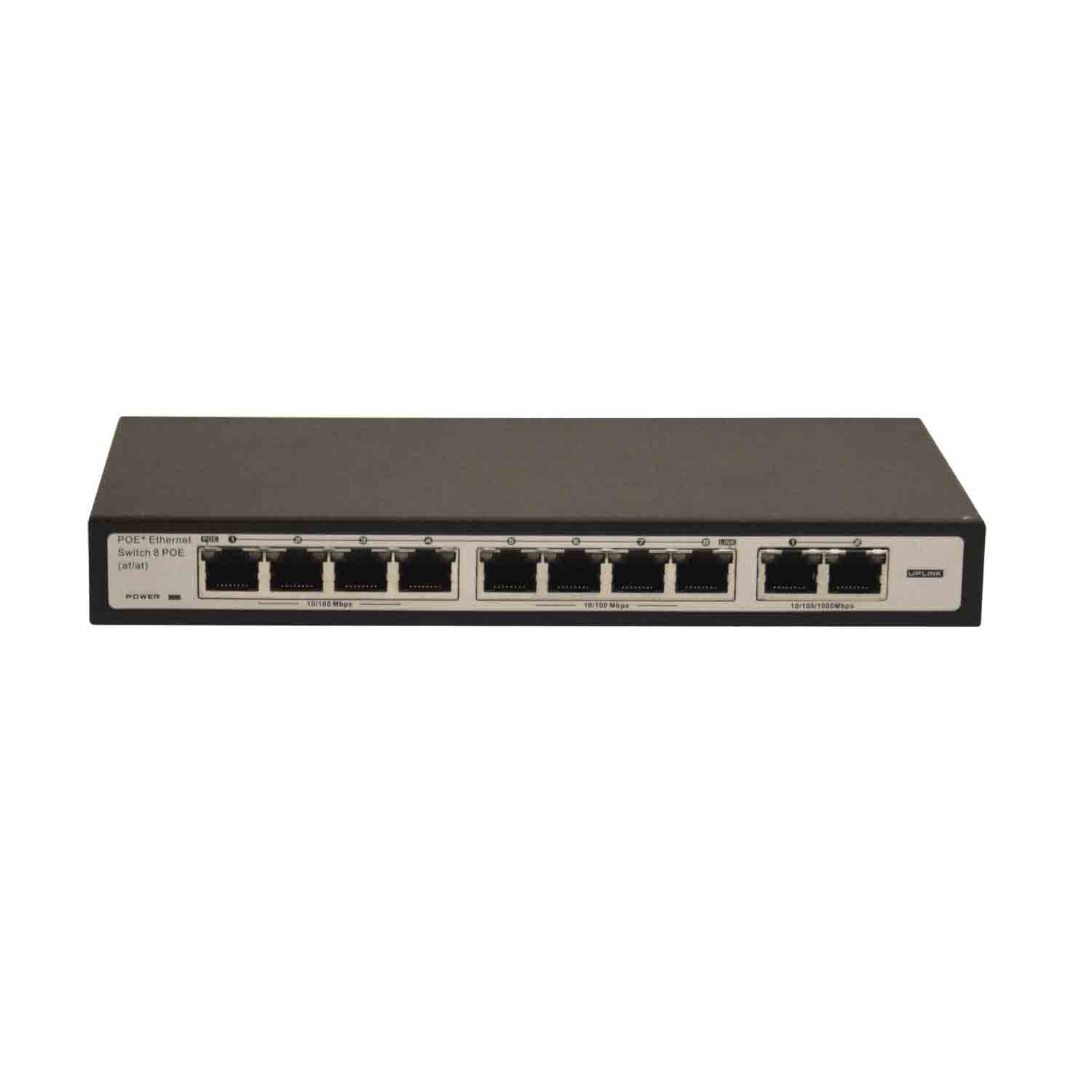

FS-S1008EP-2G Folksafe 8 Ports 100Mbps Unmanaged PoE Switch with 2 x 1000Mbps Uplink
Product ID FS-S1008EP-2G

FS-S1008EP-2G Folksafe 8 Ports 100Mbps Unmanaged PoE Switch with 2 x 1000Mbps Uplink

£119.00
In Stock 0
Sold out

0 reviews | Write a review
1 Year Warranty
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

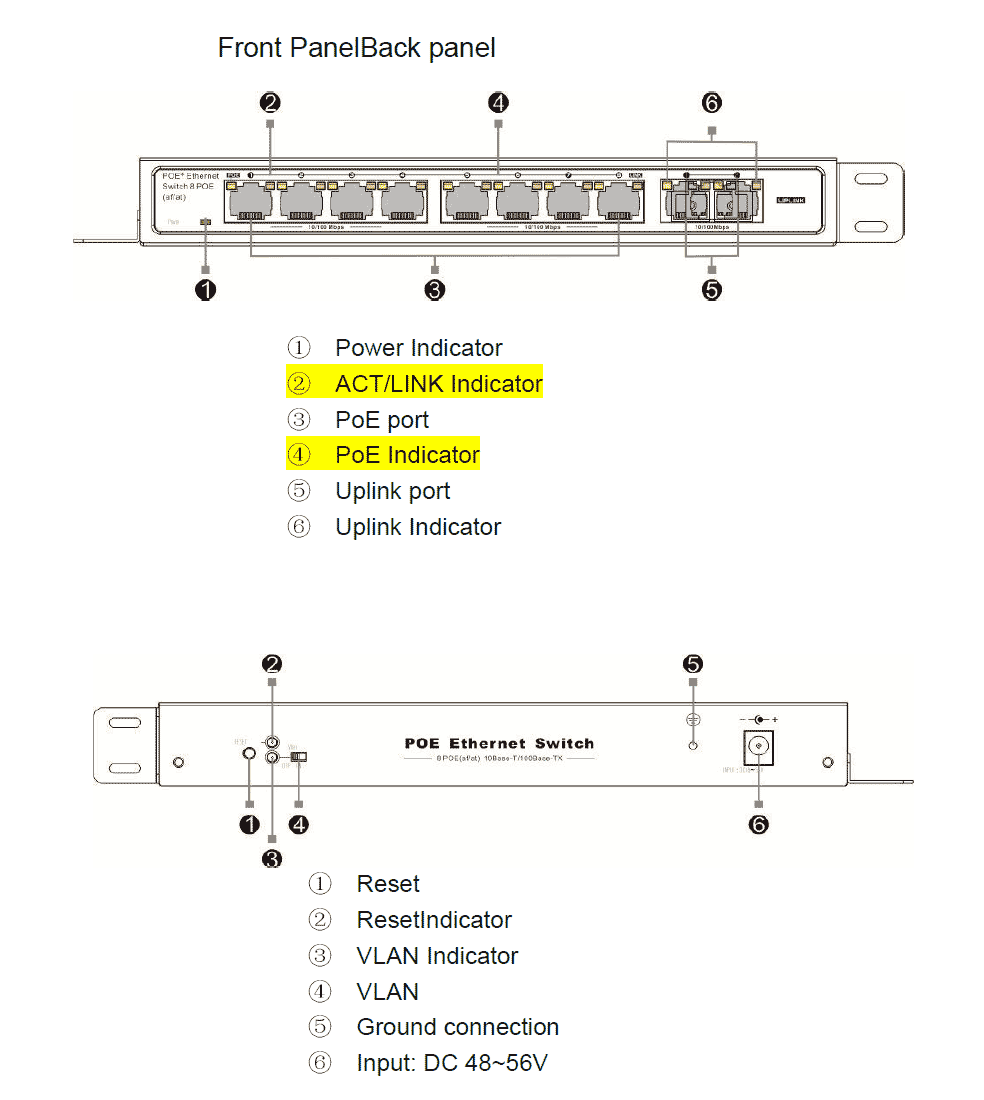

  • Diagram

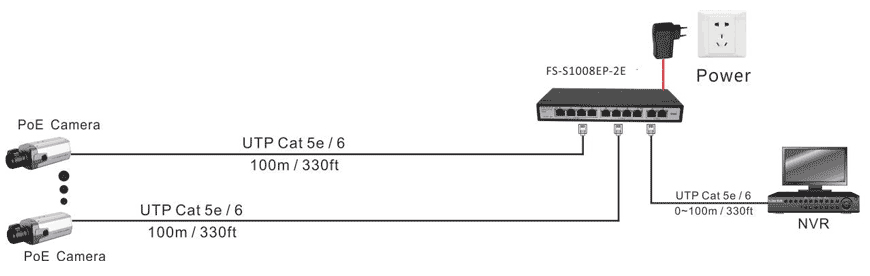

  • Wiring Diagram

Description

FS-S1008EP-2G is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 8 x 100Mbps Ethernet ports and 2 x 100Mbps uplink port, support VLAN function, can effectively prevent whole system from broadcast storm so that make the data transfer more safe.

This PoE network switch.can meet customers' general demands. PoE network switch with PoE function, designed for high-definition network cameras' internet access. It provides 8 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.

Applications

  • Provide 8 x 100Mbps Ethernet ports, 2 x 1000Mbps up-link port
  • Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power high-power infrared cameras.
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z,IEEE802.3af/at standards.
  • Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX
  • Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
  • Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping power supply; Easy to maintain system; Help monitoring pictures recover quickly.
  • Various LED display functions can real-timely display the device's current working conditions, and help prompt facility and remove trouble easily.
  • Excellent lightning protection, lightning capacity up to 4KV
  • Easy to install and operate on walls or on the desktops

Download

Manufacturers Spec Sheet (PDF)

Model FS-S1008EP-2G
Power Supply Mode Power Adaptor
Voltage Range DC48-56V
Power Consumption Switch < 5W, PoE Ports < 120W
Network Ports 1-8 Ethernet Ports: 10/100Mbps
2 Uplink Ports: 10/100/1000Mbps
Transmission Distance 1-8 Ethernet Ports: 100m
Uplink Ports: 100m
Transmission Media 1-8 Ethernet Ports: Cat5e/Cat6
Uplink Ports: Cat5e/Cat6
PoE Agreement IEEE802.3 af/at standards
PoE Power Supply Mode End-span method
PoE Power Supply Wattage Each Port < 30W, Total < 120W
Network Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z
Swap Mode Store and forward
Data-Caching Mechanism 1M
MAC Address list 1K
Power indicator Light 1 Power Light (red)
Optical Fibre Port indicator 1 fibre link indication light (green), Green light keeps on when fibre port is well connected, blinking when receiving data
PoE Indicator 8 PoE indicator light (yellow)
PoE Network Port LED 1-8 Port (green light on RJ45 jack) blinking when receiving data
Reset Indication 1 restart indication light (green), light on when press the button
