Product ID DS-7616NI-M2-16P

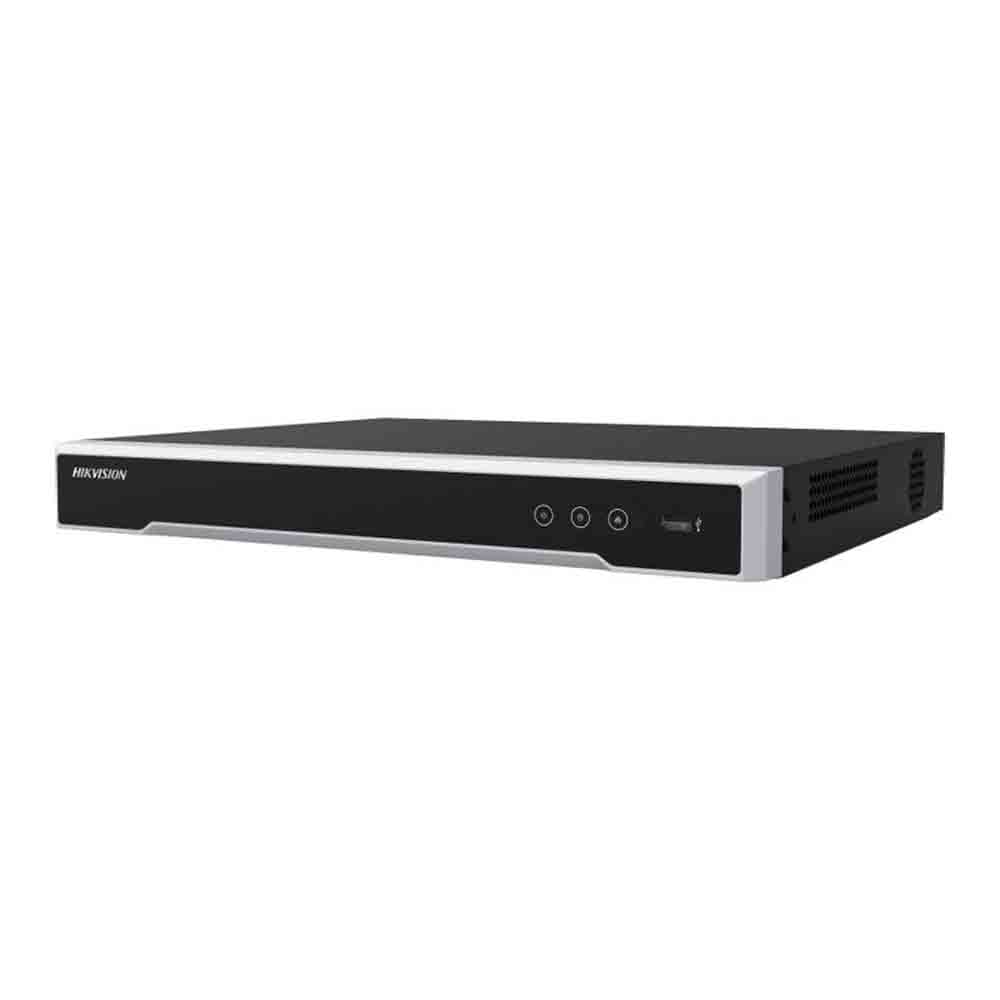

Hikvision DS-7616NI-M2-16P 16 Channel 32MP UHD "M Series" NVR with 16 PoE

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty
IP CCTV

Free Shipping

  • Summary
  • Full Spec

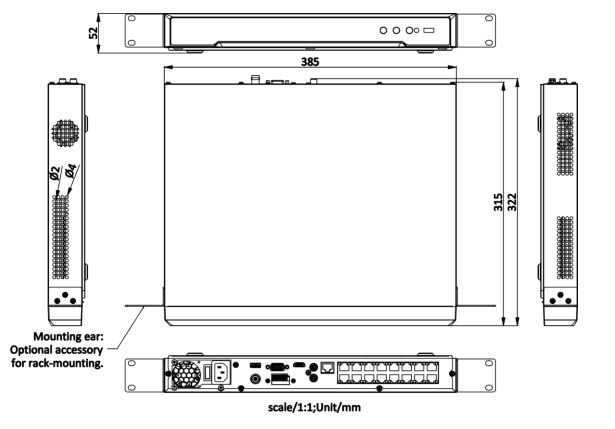

  • Diagram

Key Features

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 16-ch IP camera inputs
  • Up to 16-ch@4MP decoding capacity
  • Up to 256 Mbps incoming bandwidth

Download

Manufacturers Spec Sheet (PDF)

Video and Audio
IP Video Input 16-ch
Up to 32 MP resolution
*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode HDMI/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Synchronous Playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 16 TB capacity for each HDD
Alarm In/Out 4/1
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
Weight ≤ 3 kg (without HDD, 2.2 lb.)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
