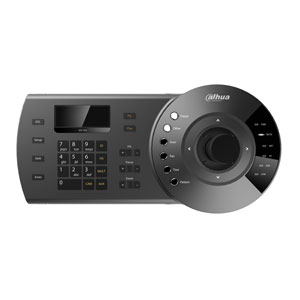

Dahua Control Keyboard
Product ID NKB1000

Dahua Control Keyboard

Login For Prices
In Stock 0
0 reviews | Write a review

  • Summary
  • Full Spec

Key Features

  • RS485, RS422, USB, RS232 & Network
  • Three Dimensional Joystick Control of PTZ Functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
  • Auxiliary Functions
  • On-Screen Menu & User Operation Procedure Tips


Manufacturers Spec Sheet (PDF)

Compatible with

  • for use with the Dahua High Speed Dome, Dahua Standalone DVR, Dahua Network High Speed Dome, Network Video Server
Keyboard Keypanel Electromechanical
Joystick 3-axis, vector-solving, with twisting, return to-center head
Keyboard Connector RJ-45,RS232,RS485,RS422,USB
Keyboard Communication Direct Mode, Network Mode
Direct Mode Interface: RS232/RS485
DVR Protocol: DH2
Network Mode Interface: RJ45
DVR/Network Dome:
IP Address/Port/Protocol
Display LCD, 75.2mm x 33.85mm
Power Supply Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
Power Consumption 5W
Working temperature -10°C ~ +55°C
Working humidity 10% ~ 90%
Atmosphere Pressure 86kpa~106kpa
Size 330mm x 160(140)mm x 37.5(21)mm (WxDxH) (height: 100mm including joystick)
Weight 2.5Kg
