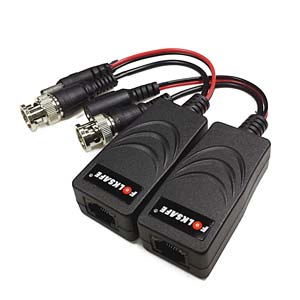

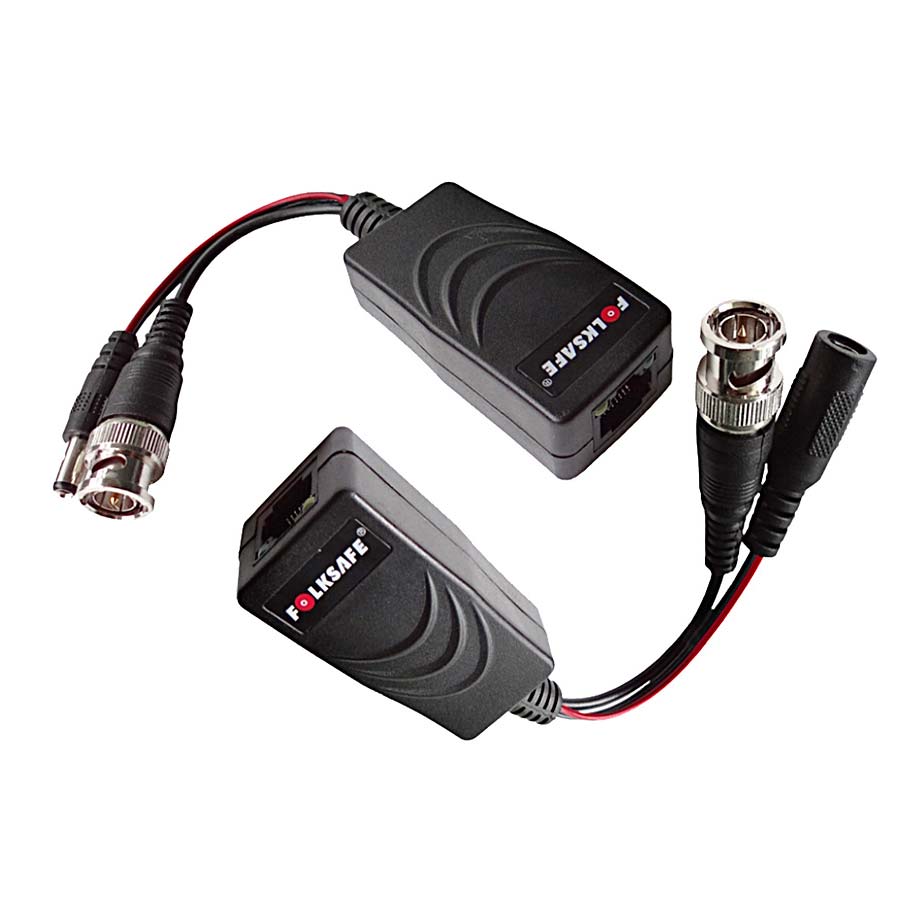

Pair of FolkSafe HD CCTV BNC to RJ45 Video and Power baluns
Product ID FS-HD4301VP

Pair of FolkSafe HD CCTV BNC to RJ45 Video and Power baluns

£9.60
In Stock 0
Sold out

0 reviews | Write a review
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

Description

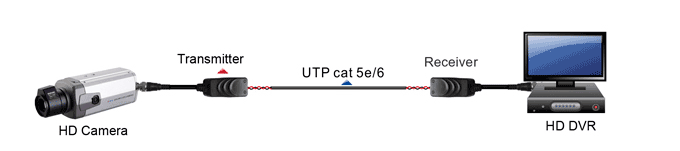

The FS-HD4301VP is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported.

The FS-HD4301VP is compatible with all HD-TVI, HD-CVI and AHD analog camera. Used in pairs, FS-HD4301VP eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the FS-HD4301VP allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-HD4301VP Transmitter and Receiver has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

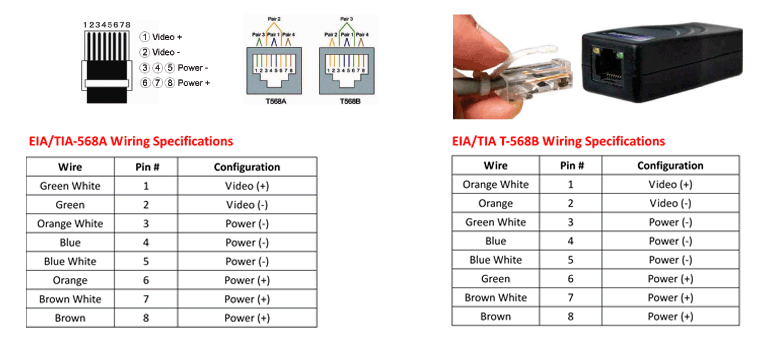

Wire and Cable Recommendations

The FS-HD4301VP is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG..Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.

For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.

Key Features

  • Single Channel HD Video & Power Transmitter & Receiver (12V/24V DC/AC)
  • Real-time transmission over UTP cat5e/6
  • NTSC, PAL & SECAM video format compatible
  • Compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras
  • HD‐TVI 720P:300m, 1080P:200m over UTP cat5e/6
  • HD‐CVI 720P:430m, 1080P:210m over UTP cat5e/6
  • AHD 720P:300m, 960P:200m over UTP cat5e/6
  • Male BNC with extended 5.9inch(150mm)mini‐coax pigtail
  • RJ45 Jack for UTP cable
  • Built-in TVS (Transient Voltage Suppressor) for surge protection
  • Wave Filter Design, Anti-Static Design
  • Lightning protection design Grade:III
  • 60dB crosstalk and noise immunity
  • Exceptional interference rejection
  • ABS engineering plastic housing

Model FS-HD4301VP
Product name Single channel passive video & Power transmitter and receiver
Video Video format PAL, NTSC, SECAM
Operating frequency DC to 42mhz
Max distance HD-TVI 720p: 300m HD-CVI 720p: 430m AHD 720p: 300m
HD-TVI 1080p: 200m HD-CVI 1080p: 210m AHD 960p: 200m
Common-mode/differential-mode rejection 15KHz to 42MHz 60dB typ
Impedance coax, male BNC 75 Ohm unbalanced
UTP, RJ45 100 Ohm balanced
Attenuation 1.5 dB typ max
Wire type Network wiring One unshielded twisted pair (for each video signal) 24-16AWG (0.5-1.31mm)
Category type 2 or better
Impedance 100 ± 20 ohms
DC loop resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Power transmission 12v/24v, DC/AC, via UTP cat5/6
Connector Video input/output Male BNC connector
Video input/output RJ45 Jack
Protection Surge protection Renewable solid state surge protection
Video input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
Video output 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
Mechanical Housing ABS plastic
Body color black
Dimensions (L x W x H) 60.4 x 29 x 20.4mm (BNC connector & cable excluded)
Net weight 60g
Environmental Operating temperature -20ºC ~ 70ºC
Relative humidity 0~95% (non-condensing)
Storage temperature -40ºC ~ 150ºC
