» HDoC CCTV Cameras

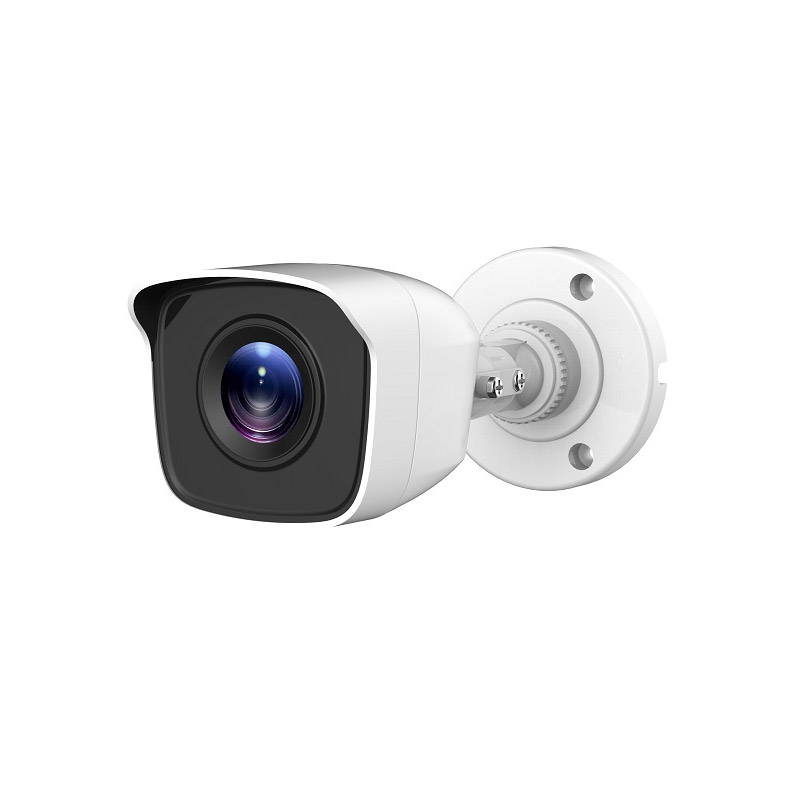

THC-B140-M HiWatch by Hikvision HD TVI 4MP Metal Bullet Camera with 20M IR Night Vision

Product ID THC-B140-M

0 reviews | Write a review

£28.00

THC-B140-M HiWatch by Hikvision HD TVI 4MP Metal Bullet Camera with 20M IR Night Vision

Add Plug n Play Cable

No

20m

Add Power Supply

No

Yes

£28.00

Quantity

-

+

3 Year Warranty

Free Shipping

Summary
Full Spec
Diagram

Description

The THC-B140-M is a HiWatch by Hikvision 4MP metal bullet camera for HD-TVI (coax) CCTV systems.

The 2.8mm lens gives a wide 100 degree view and infrared night vision reaches up to 20m.

It works on TVI, AHD, CVI or analogue recorders and is weatherproof (IP66).

Key Features

4 MP high-performance CMOS
2560 × 1440 resolution
2.8mm fixed lens - FOV 100°
Day/Night switch
up to 20m EXIR distance
Switchable TVI / AHD / CVI / CVBS
IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with HD-TVI recorders.

Camera
Image Sensor	4 MP CMOS image sensor
Effective Pixels	2560 (H) × 1440 (V)
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25 s to 1/50,000 s
Lens	2.8mm - Angle of View: 100.2°
Lens Mount	M12
Day & Night	ICR
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization	Internal synchronization
Video Frame Rate	1080p@25fps, 4 MP@25fps
Menu
AGC	High/Medium/Low/Off
D/N Mode	Auto/Color/BW (Black and White)
BLC	Support
DWDR	Support
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
HD Video Output	1 Analog HD output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC
Power Consumption	Max. 4W
Protection level	IP66
Material	Metal
IR Range	up to 20m

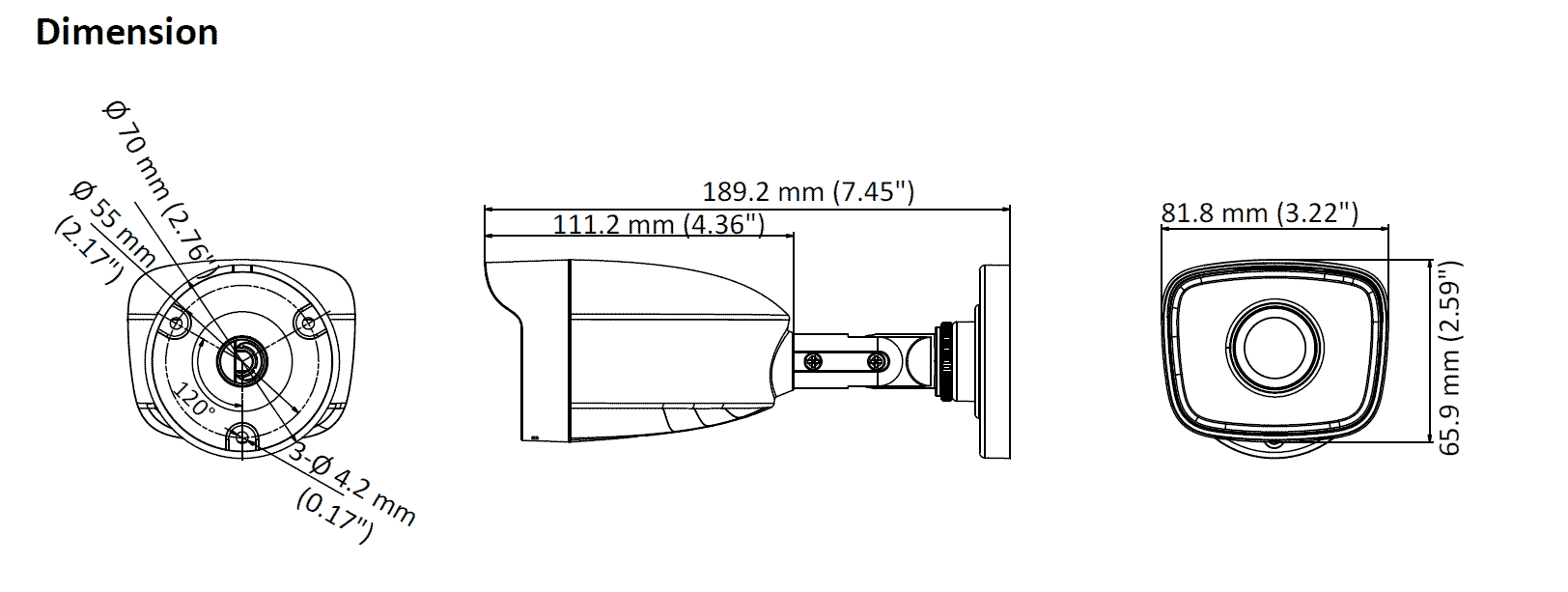

Dimensions	65.9 mm × 189.2 mm × 81.8 mm
Weight	Approx. 290g
