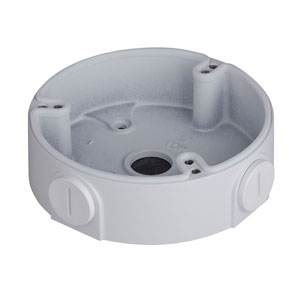

Dahua PFA137 Junction Box for Dome Cameras
Product ID PFA137

Dahua PFA137 Junction Box for Dome Cameras

Login For Prices
0 reviews | Write a review

  • Description
  • Full Spec

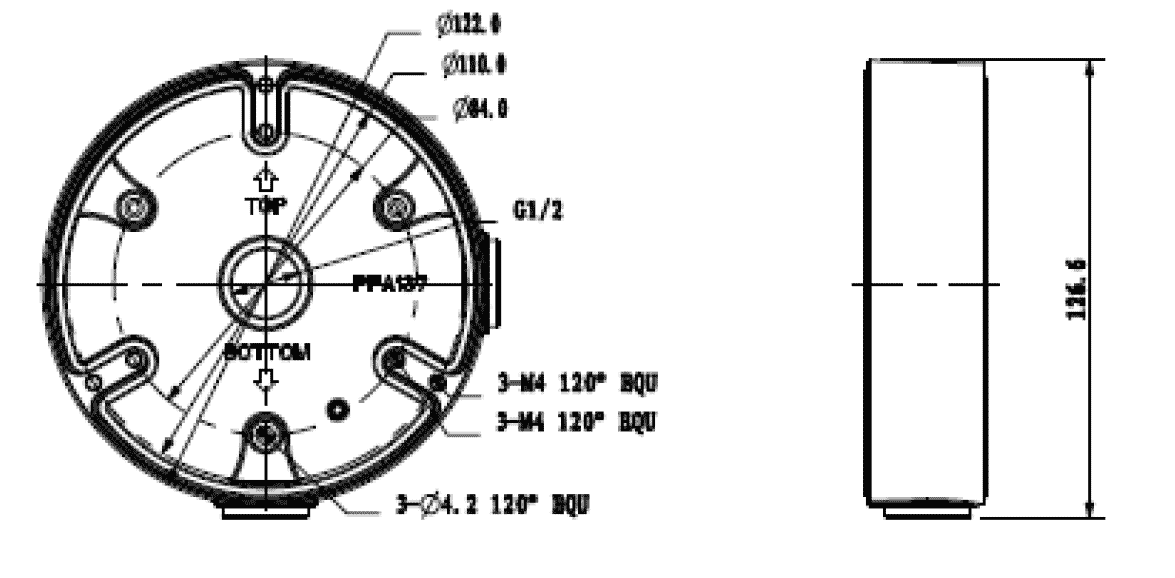

  • Diagram

Key Features

  • Material: Aluminum
  • Junction Box
  • Neat & Integrated design

Compatible with

  • Dome Cameras: HDW2120/2220/2221R-Z / HDW2120/2220/2320R-Z(S) / DBW181R-VF / HDBW1100/1200/2120/2220R-VF, HDBW2120/2220/2221R-Z / HDBW2100/2200/2300R-Z/VF, HDBW2101/2120/2201/2220/2320R-ZS/VFS
  • PTZ Cameras: SD22204I-GC / SD22204T-GN(-W)
  • See "Bracket Guide" for more details.

Download

Manufacturers Spec Sheet (PDF)

Bracket Guide:

You can download the Dahua Bracket Guide here.

General
Material Aluminum
Dimension (W x H x D) φ122 x 33.8mm
Inch Thread M20(G1/2”)
Operating Temperature -40°C~+60°C
Humidity 0~90% RH
Load Bearing 1.0Kg
Weight 0.18kg
