Product ID PFB302S

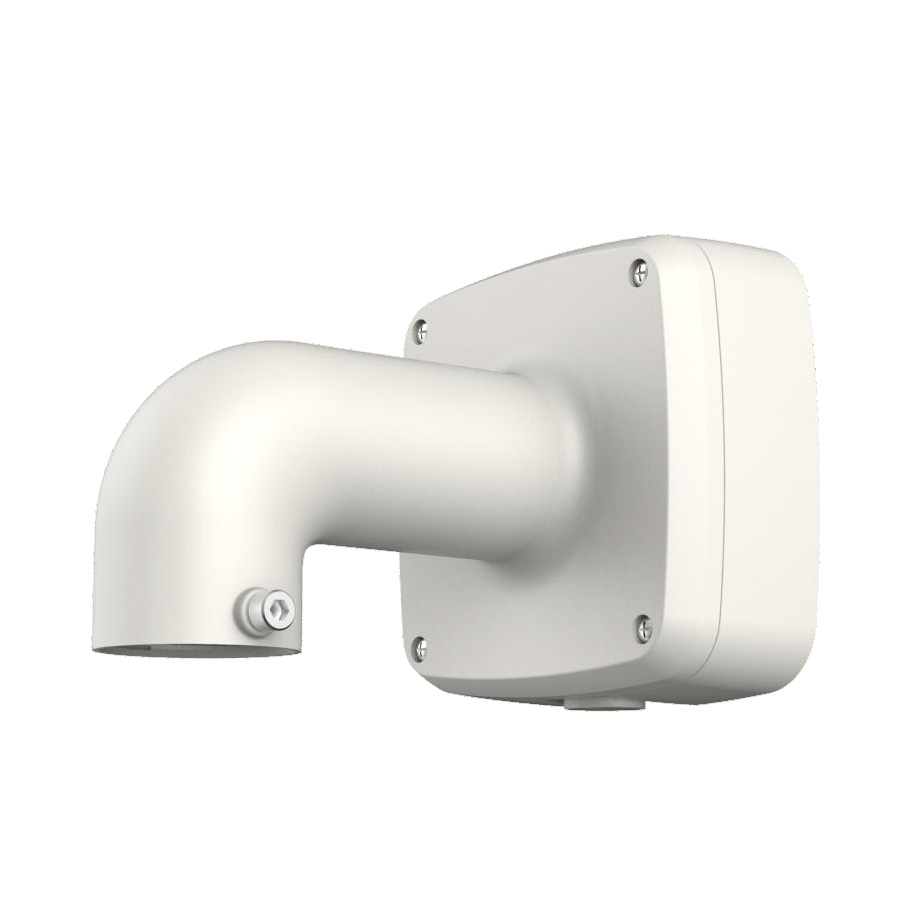

Dahua PFB302S Wall Mount Bracket for Dome / Mini PTZ Range

In Stock 0
0 reviews | Write a review

Free Shipping

  • Description
  • Full Spec
  • Diagram

Key Features

  • Material: Aluminum
  • IP66 Wall Mount Bracket
  • Neat & Integrated design
  • Junction box function

Compatible with

  • Dome Cameras (requires PFA101): HDBW3231E-Z / HDBW5121/5220/5221/5421/8231/8331E-Z
  • Dome Cameras (requires PFA100): HDB(W)5100/5200/5202/5300/5302/5502,HDB(W)8301(-Z), HDB(W)8281-Z / HDBW3220E-Z / EB(W)8600/81200
  • PTZ Cameras (requires PFA101): SD32203S-HN
  • PTZ Cameras (requires PFA102): SD4223/23C-H / SD42112/212I-HC / SD42212S-HN,SD42212T-HN
  • PTZ Cameras (requires PFA103): SD29204S-GN(-W)
  • See "Bracket Guide" for more details.


Manufacturers Spec Sheet (PDF)

Bracket Guide:

You can download the Dahua Bracket Guide here.

Material Aluminum

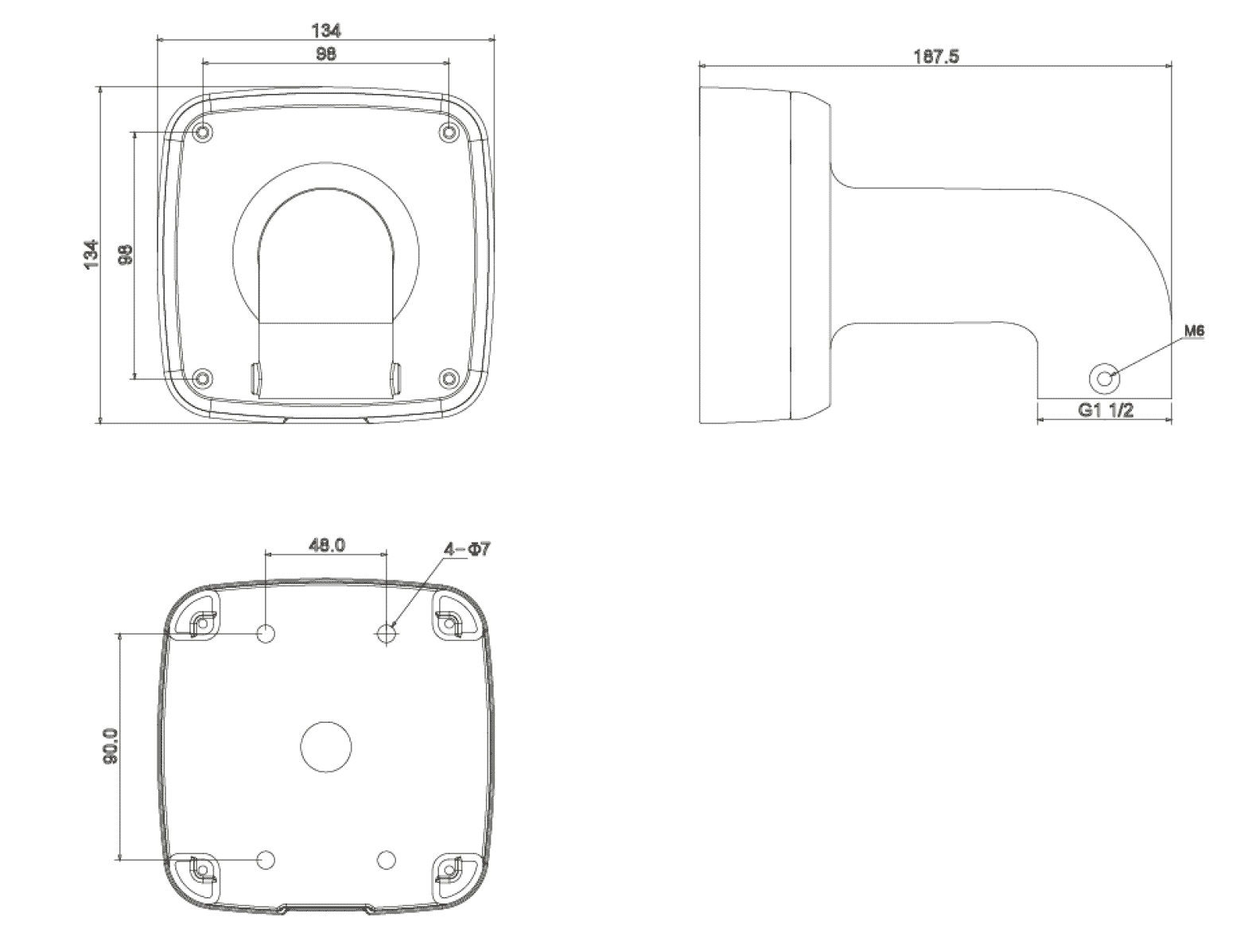

Dimension (W x H x D) 134mm x 134mm x 187.5mm
Pipe Thread G1 1/2”, M20(G1/2”)
Operating Temperature -40°C~+60°C
Humidity 0~90% RH
Load Bearing 3Kg
Weight 0.70kg
