Clearance DS-2CE56D0T-IT3 Hikvision Eco Range HD TVI 1080P Turret Camera with 40M EXIR Night Vision (12 Month / 16mm Lens)

Product ID DS-2CE56D0T-IT3

0 reviews | Write a review

Trade Only Item

In Stock 3

**Clearance** DS-2CE56D0T-IT3 Hikvision Eco Range HD TVI 1080P Turret Camera with 40M EXIR Night Vision (12 Month / 16mm Lens)

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

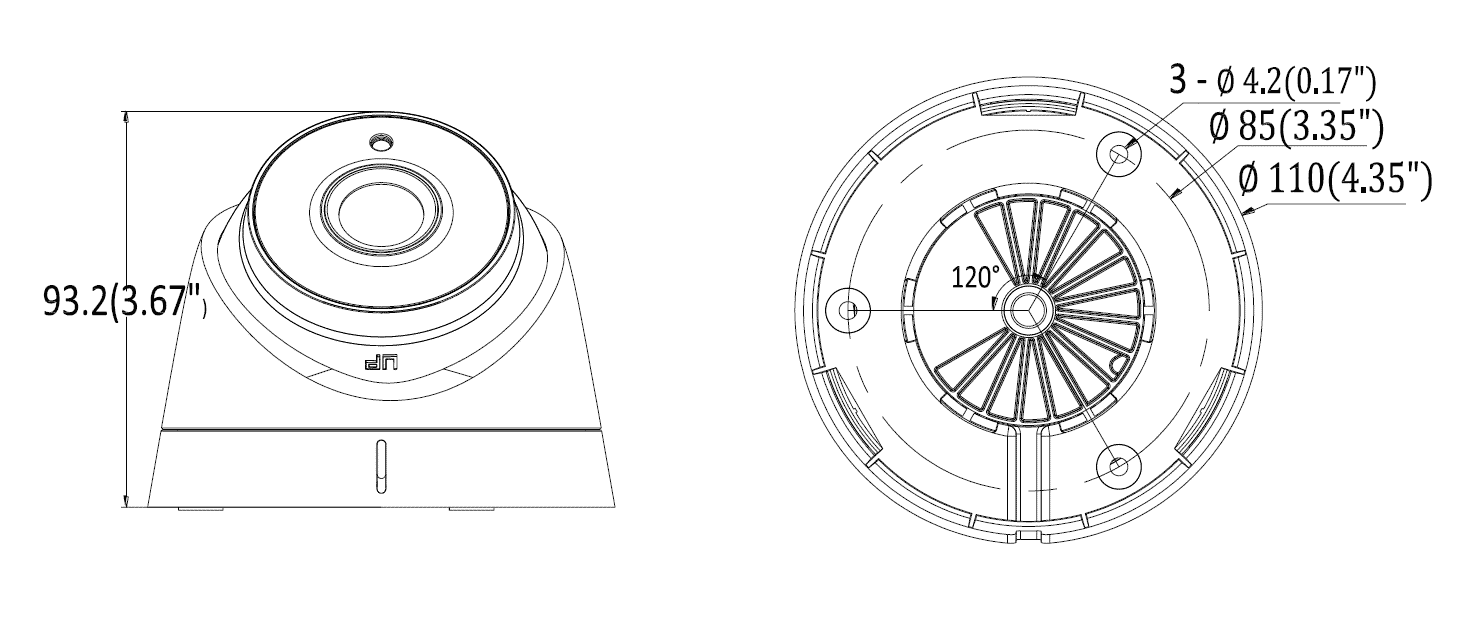

Diagram

Description

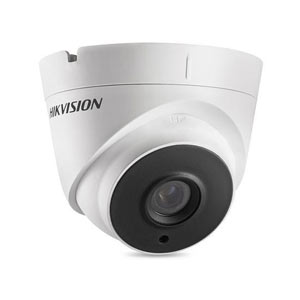

The DS-2CE56D0T-IT3 is a Hikvision Eco range 1080p turret camera for HD-TVI (coax) CCTV systems. It's a clearance item with a 12 month warranty.

It has EXIR infrared night vision up to 40m and is weatherproof (IP66). Please check the lens options above, as some sizes have sold out. A smaller lens gives a wider view, a larger lens a closer view of something further away.

3.6mm - 82.2° angle of view - SOLD OUT
8mm - 37.7° angle of view - SOLD OUT
12mm - 24.2° angle of view - SOLD OUT
16mm - 18.8° angle of view

All in all, one of the best value HD cameras currently available.

Key Features

1080P HD-TVI Camera
True Day/Night, Smart IR
EXIR technology, up to 40m IR distance
IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Lens Options

Please make sure you select 1080P HD resolution when viewing above footage.

The above footage demonstrates how the lens size will change the angle of view - and give you a better idea which lens to choose.

As you can see the smaller the lens the wider the angle of view - so you can see much more of the scene with the 3.6mm lens, but of course if you are focusing on subjects further away - then the bigger lenses are better options.

Please note the camera was located in exactly the same spot for all this footage - that is approx 3m high and 4m from the first car.

Camera
Image Sensor	2MP CMOS Image Sensor
Effective Pixels	1920(H) x 1080(V)
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25 s to 1/50,000 s
Lens	3.6mm - Angle of View: 82.2° (Optional: 8mm - 37.7° / 12mm - 24.2° / 16mm - 18.8°)
Lens Mount	M12
Day & Night	ICR
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization	Internal synchronization
Video Frame Rate	PAL: 1080p@25fps
HD Video Output	1 Analog HD output
S/N Ratio	Over 62dB
General
Operating Conditions	-20 °C - 45 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC
Power Consumption	Max. 4W
Weather Proof Ratings	IP66
IR Range	up to 40m
Dimensions	Ø 110 × 93.2 mm
Weight	Approx. 350g
