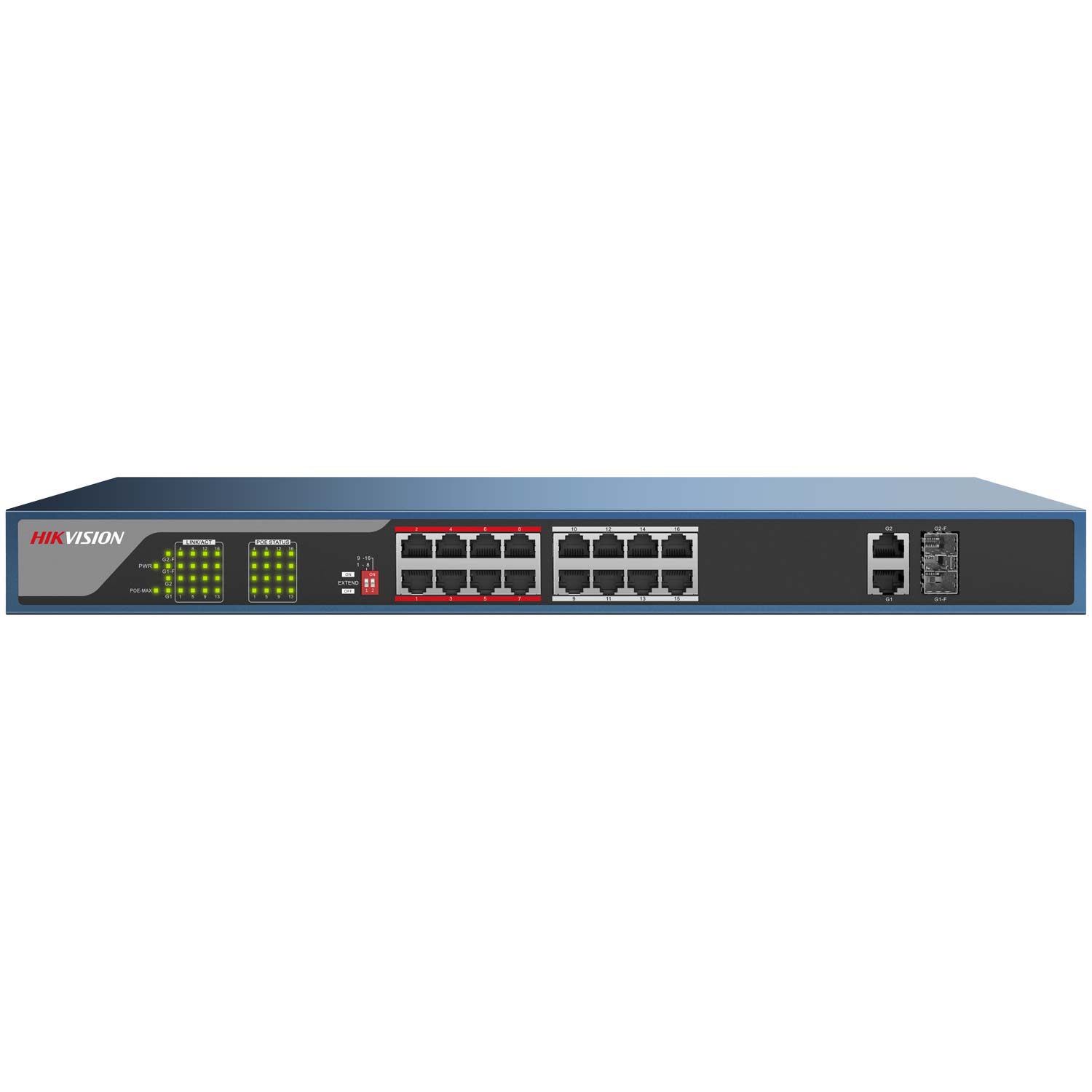

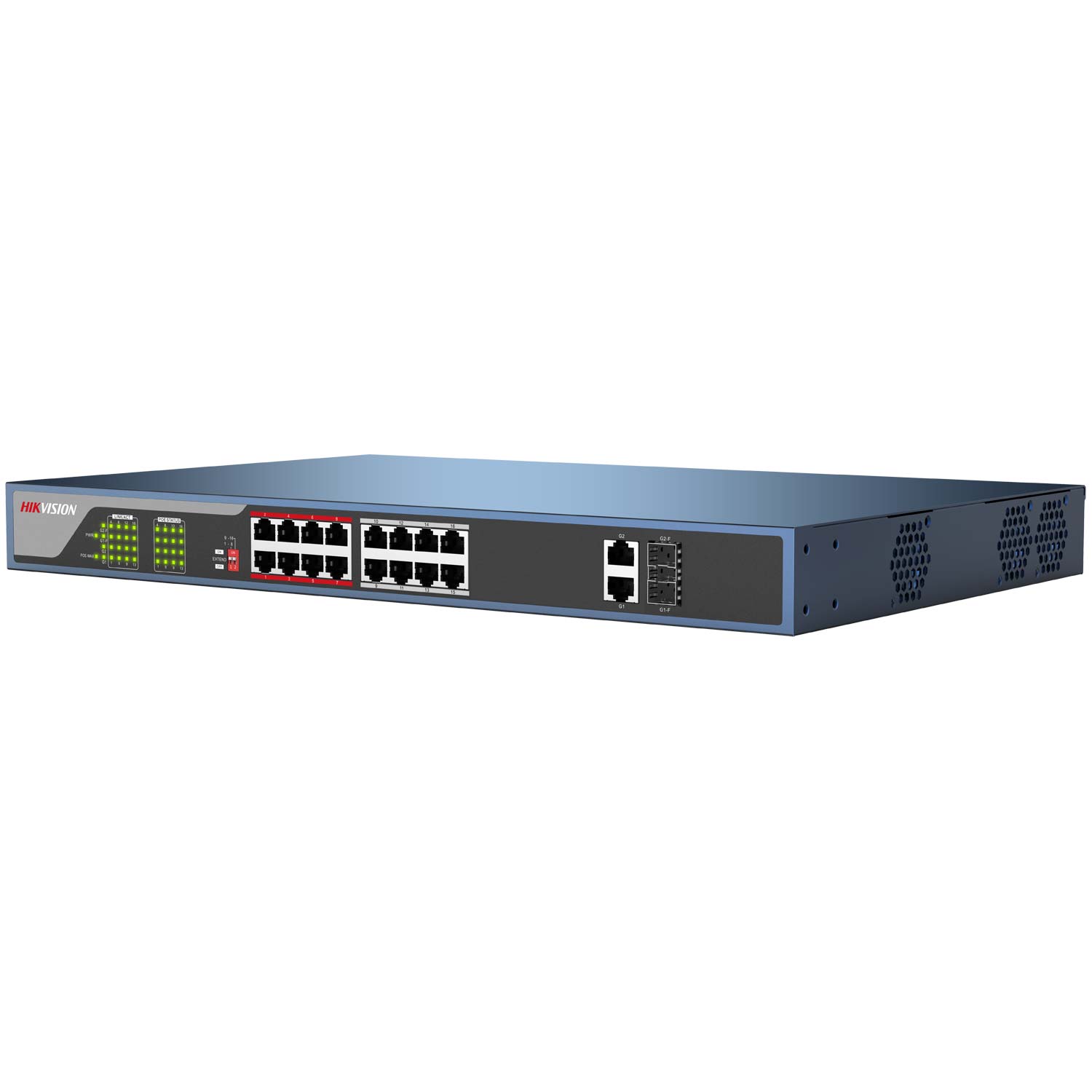

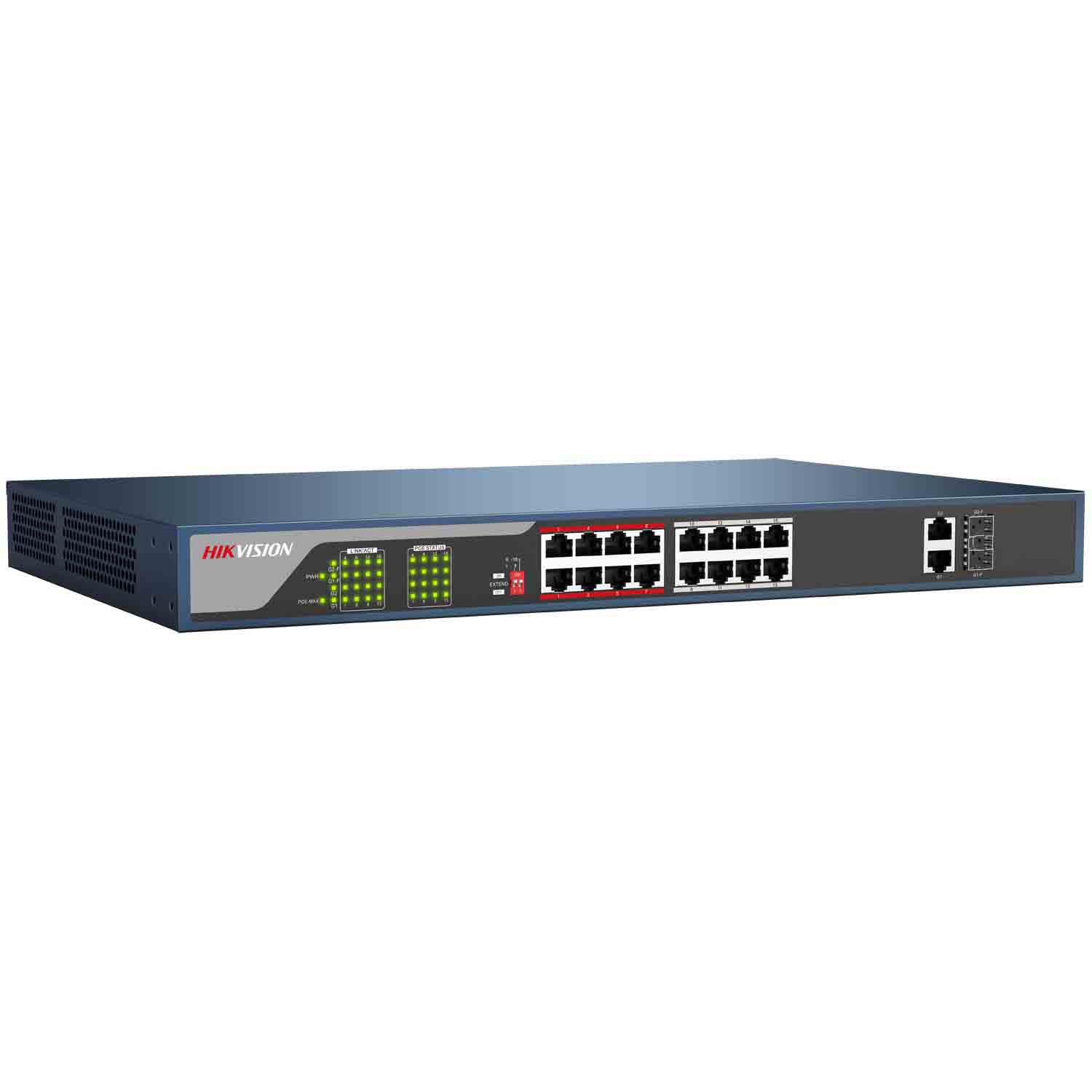

DS-3E0318P-E Hikvision 16 Ports 100Mbps Unmanaged PoE Switch with 2 x Gig Uplink

Product ID DS-3E0318P-E
0 reviews | Write a review
Trade Only Item
DS-3E0318P-E Hikvision 16 Ports 100Mbps Unmanaged PoE Switch with 2 x Gig Uplink #1DS-3E0318P-E Hikvision 16 Ports 100Mbps Unmanaged PoE Switch with 2 x Gig Uplink #2DS-3E0318P-E Hikvision 16 Ports 100Mbps Unmanaged PoE Switch with 2 x Gig Uplink #3
Trade Only Item
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec

Description

The DS-3E0318P-E is a Hikvision 16 port PoE switch with 2 gigabit uplink ports.

It powers up to 16 IP cameras, with up to 30W per port and 230W in total. It has surge protection and needs no setup.

Key Features

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • 16 x 10/100Mbps Auto-MDIX PoEports
  • Provides up to 30 watts per PoE port
  • PoE power budget 230W
  • 4 kV surge protection for PoE ports
  • IEEE 802.3x flow control support
  • Plug-and-play installation
  • 7.2 Gbps switching fabric
  • 2.75 MbitsRAM Data Buffer
  • 4K MAC address entries

Download

Manufacturers Spec Sheet (PDF)

Ports
Network Ports 18
PoE Port 16, 10/100Mbps RJ45 ports
Uplink Port 2, 1000M Combo Port
Standard
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity 7.2Gbps
Max. Forwarding Rate 5.36Mpps
High Priority Ports Ports 1-8
Forwarding Mode Store-and-forward
MAC Address Table 4k
Flow Control IEEE802.3x full duplex
PoE
PoE Standard IEEE802.3af, IEEE802.3at
PoE Power Budget 230W
Working Mode Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply 100-240V AC, 50/60Hz
Power Consumption Max. 250W
Surge Protection 4KV
Working Conditions 0 °C – 40 °C; Humidity 10-90% (non-condensing)
Storage Conditions -40 °C – 70 °C; Humidity 5-90% (non-condensing)
Dimensions 440mm x 285mm x 43mm
Weight Approx. 3.72Kg
