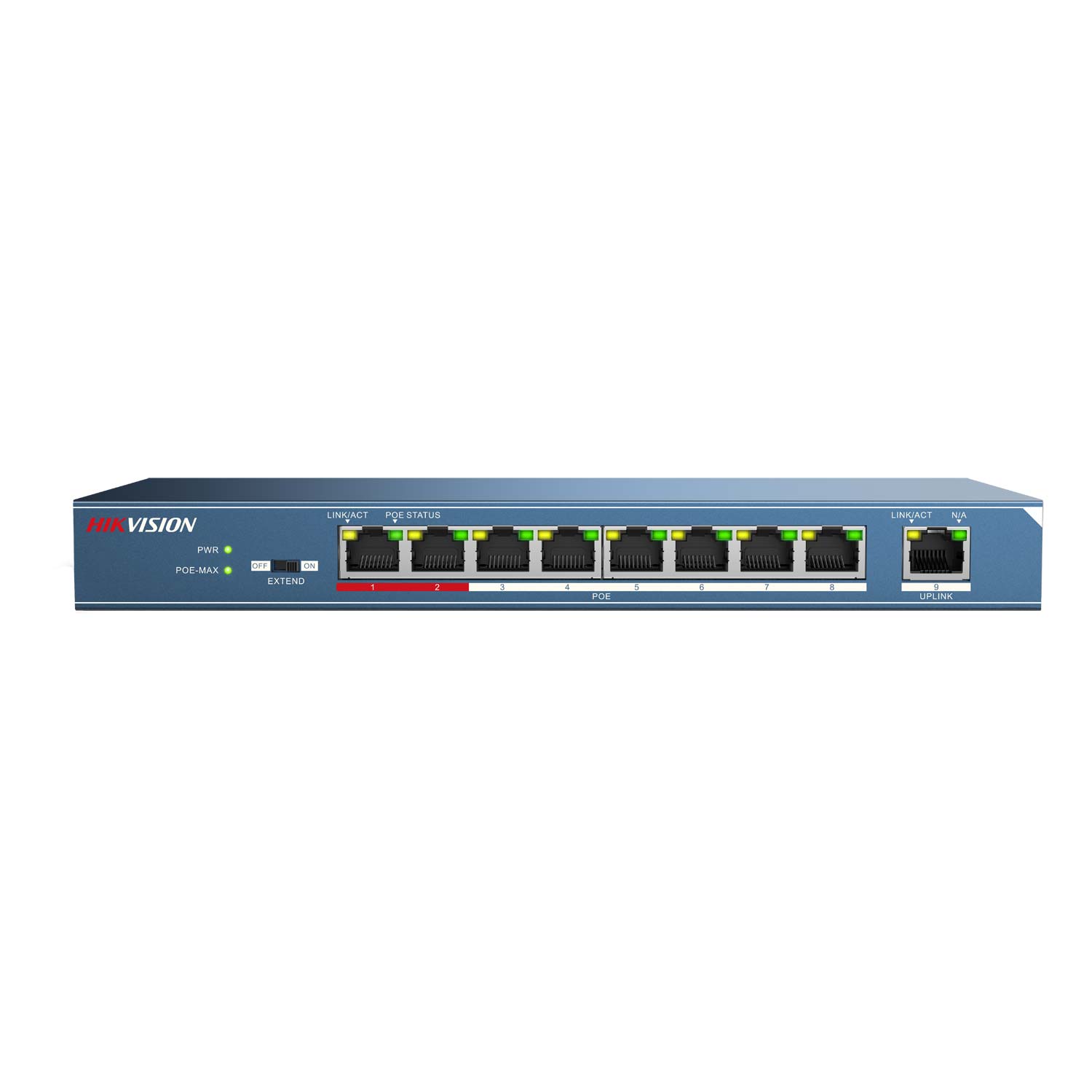

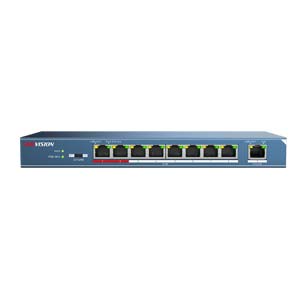

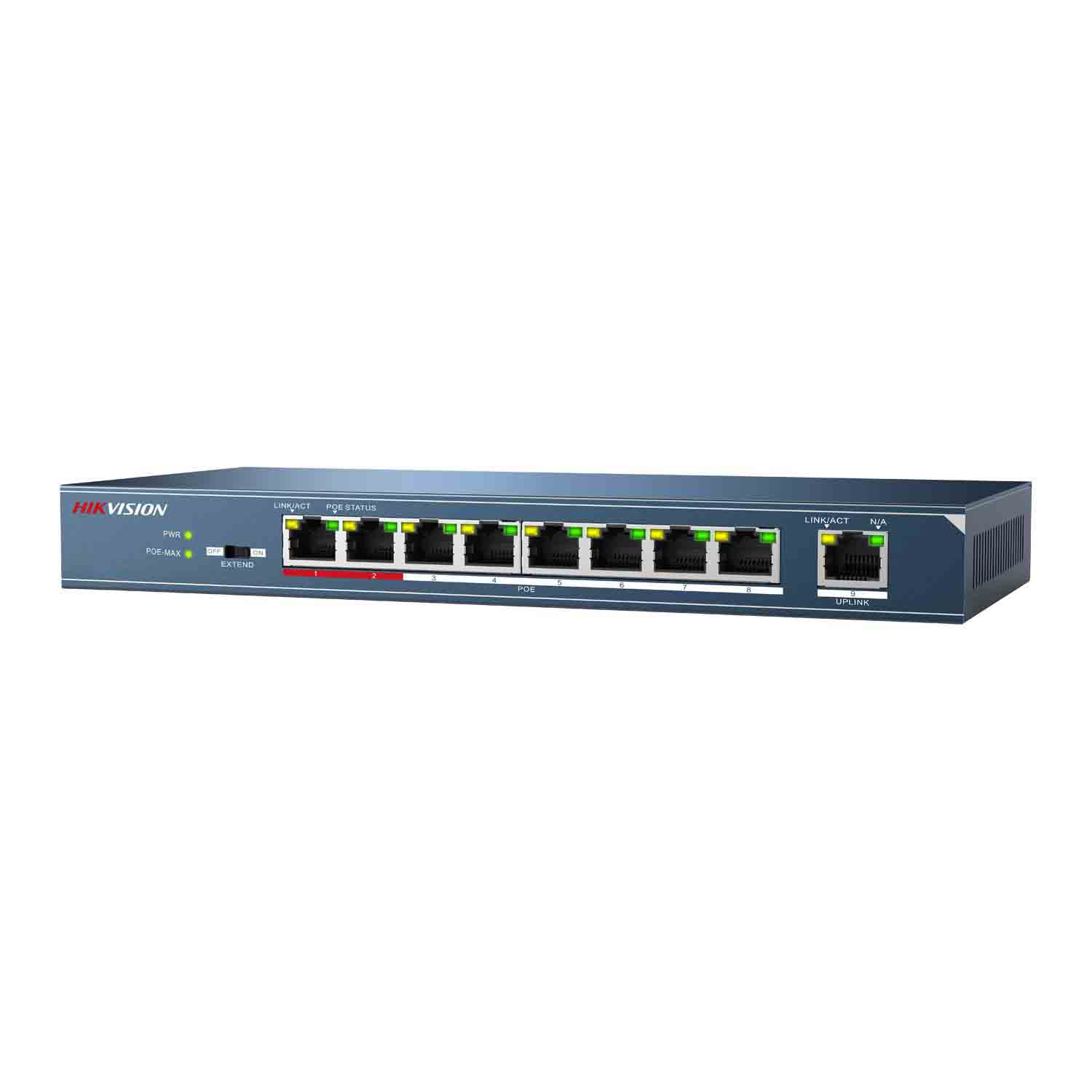

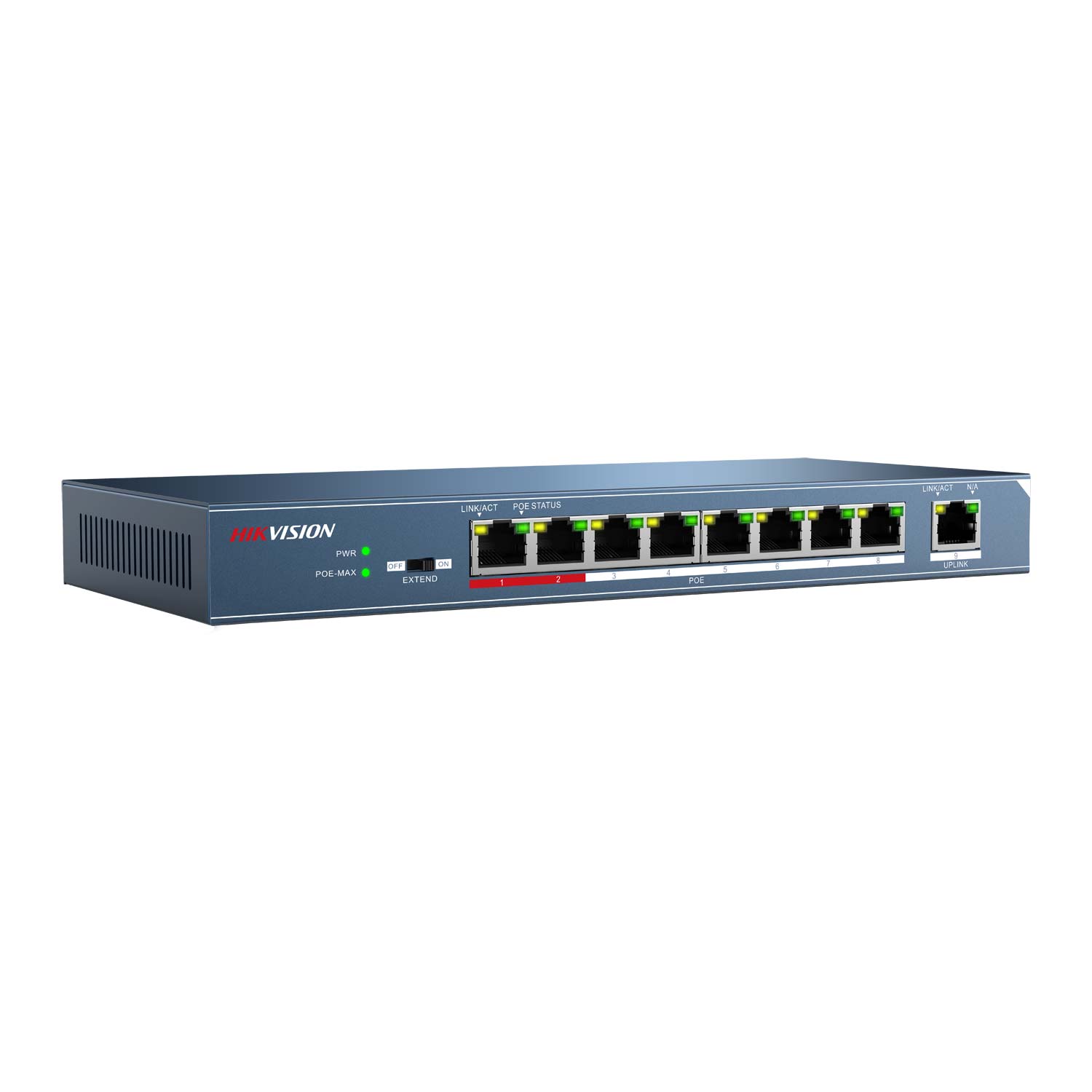

DS-3E0109P-E Hikvision 8 Ports 100Mbps Unmanaged PoE Switch with 1 x Uplink
Product ID DS-3E0109P-E

DS-3E0109P-E Hikvision 8 Ports 100Mbps Unmanaged PoE Switch with 1 x Uplink

Trade Only Item
0 reviews | Write a review

  • Summary
  • Full Spec


DS-3E0109P-E is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc.

Key Features

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • 8 x 10/100Mbps Auto-MDIX PoEports
  • Provides up to 30 watts per PoE port
  • PoE power budget 123W
  • 4 kV surge protection for PoE ports
  • IEEE 802.3x flow control support
  • Plug-and-play installation
  • 1.8 Gbps switching fabric
  • 1.25 MbitsRAM Data Buffer
  • 4K MAC address entries


Manufacturers Spec Sheet (PDF)

Network Ports 9
PoE Port 8, 10/100Mbps RJ45 ports
Uplink Port 1, 100M Ethernet Port
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Switching Capacity 1.8Gbps
Max. Forwarding Rate 1.34Mpps
High Priority Ports Ports 1-2
Forwarding Mode Store-and-forward
MAC Address Table 4k
Flow Control IEEE802.3x full duplex
PoE Standard IEEE802.3af, IEEE802.3at
PoE Power Budget 123W
Working Mode Extend On:250m,10M,CAT 5e
Extend Off:100m
Power Supply 51V DC, 2.5A
Power Consumption Max. 127W
Surge Protection 4KV
Working Conditions 0 °C – 40 °C; Humidity 10-90% (non-condensing)
Storage Conditions -40 °C – 70 °C; Humidity 5-90% (non-condensing)
Dimensions 235mm x 103mm x 27mm
Weight Approx. 570g
