DS-7204HTHI-K1 Hikvision 4 Channel 8MP (4K) HD TVI Hybrid DVR with CVBS (Turbo4.0)

Product ID DS-7204HTHI-K1

0 reviews | Write a review

Trade Only Item

In Stock 3

DS-7204HTHI-K1 Hikvision 4 Channel 8MP (4K) HD TVI Hybrid DVR with CVBS (Turbo4.0)

DS-7204HTHI-K1 Hikvision 4 Channel 8MP (4K) HD TVI Hybrid DVR with CVBS (Turbo4.0) #1

DS-7204HTHI-K1 Hikvision 4 Channel 8MP (4K) HD TVI Hybrid DVR with CVBS (Turbo4.0) #2

DS-7204HTHI-K1 Hikvision 4 Channel 8MP (4K) HD TVI Hybrid DVR with CVBS (Turbo4.0) #3

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

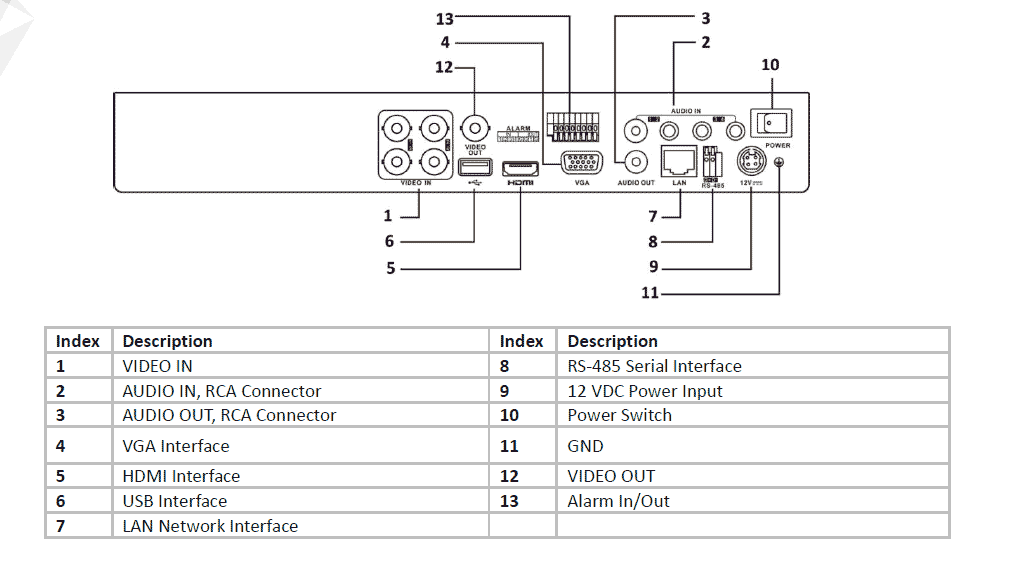

Diagram

The DS-7204HTHI-K1 is a Hikvision 4 channel 4K (8MP) Turbo HD DVR for HD-TVI (coax) CCTV systems.

It records up to 8MP and has a 4K HDMI output. It accepts TVI, AHD, CVI and analogue cameras, plus 2 IP cameras, and uses H.265+ compression to save hard drive space. The hard drive isn't included. It works with the free Hik-Connect app.

Key CCTV Recorder Features

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
Connectable to 2 x H.265+/H.265/H.264+/H.264 IP cameras
Up to 8 MP resolution for recording
VGA output at up to 1920 x 1080P resolution
HDMI output at up to 4K (3840 × 2160) resolution
Long transmission distance over coax cable
Support up to 4-ch synchronous
Internet & Smart Phone compatible

Download Hikvision DS-7204HTHI-K1 Specification Sheets

Manufacturers Spec Sheet (PDF)

Video / Audio Input
Audio Input	4ch
Video compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input	4CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Camera Types	Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL
Video Input Interface	BNC (1.0 Vp-p, 75 Ω)
Audio compression	G.711u
Audio input	4ch RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
CVBS output	1-ch, BNC(1.0Vp-p,75 Ω), resolution:PAL:704x576
VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution	8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate	Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps Sub-stream: WD1/4CIF/CIF@25fps
Video bit rate	32 Kbps - 16 Mbps
Stream type	Video, Video & Audio
Audio output	1-ch, RCA (Linear, 1 KΩ)
Audio bit rate	64 Kbps
Dual-stream	Support
Synchronous playback	4ch
Network Management
Remote Connections	32
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8 TB capacity for each disk
External Interface
Network interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface	Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0
Serial interface	RS-485 half-duplex
Alarm in/out	4/1
General
Power supply	12v DC
Consumption	Max 15W
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Dimensions (W x H x D)	315 × 242 × 45 mm
Weight	Approx. 1.5Kg
