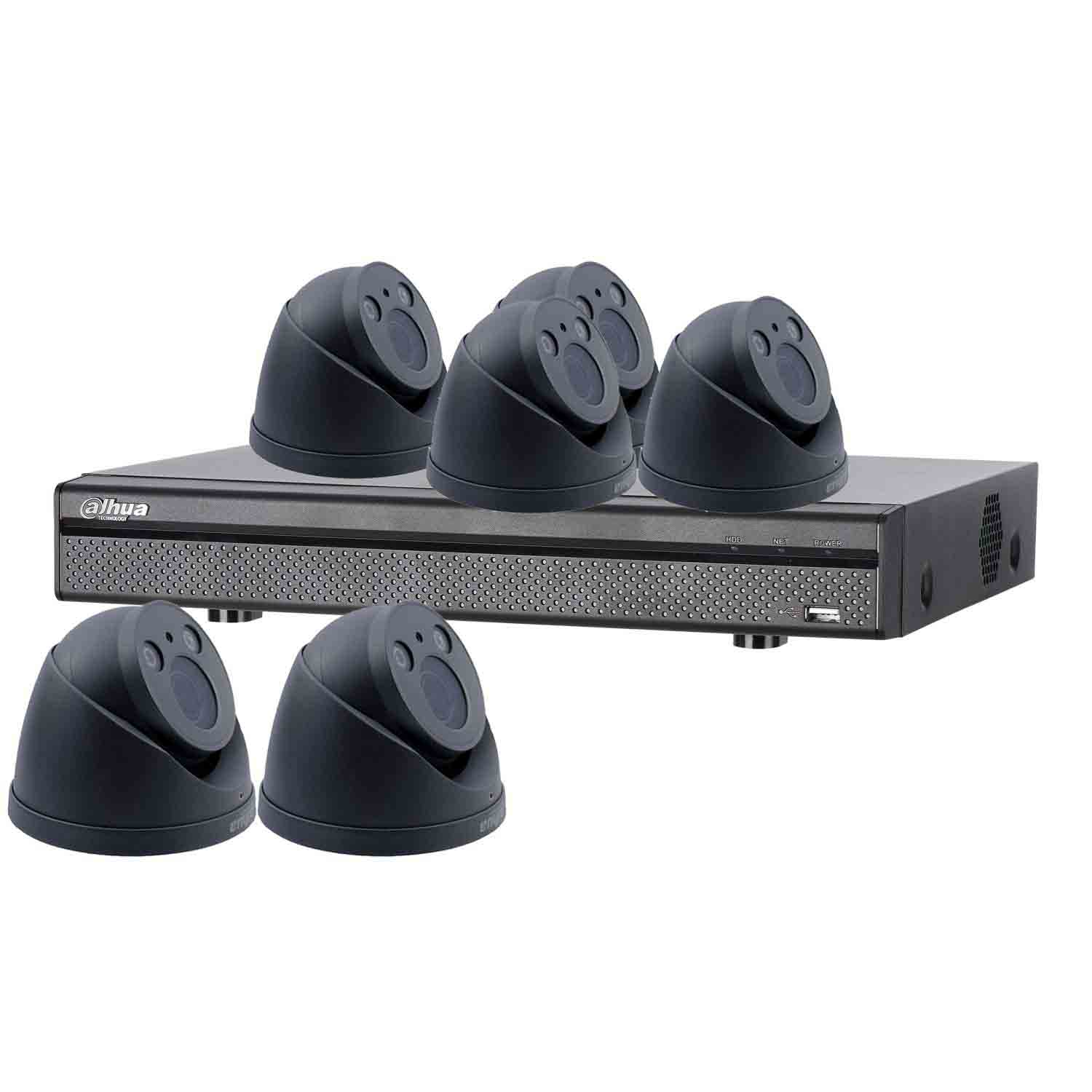

Dahua 4MP 120dB WDR 8 Channel Kit with 6 x HD CVI 60M IR Motorised Zoom Cameras (Grey)
Product ID HDC634

Dahua 4MP 120dB WDR 8 Channel Kit with 6 x HD CVI 60M IR Motorised Zoom Cameras (Grey)

Login For Prices
In Stock 0
0 reviews | Write a review
3 Year Warranty

  • Summary
  • Full Spec
  • Options Help


This is a 6 Camera CCTV System capable of recording 4MP High Definition images at 15fps per camera.

Although this system comes with 6 cameras, the DVR can accept up to 8 video feeds - so you can add more cameras in the future if you want to expand your security. These could be standard definition Analogue CCTV Cameras, 720P or 1080P HD-CVI Cameras and even Dahua IP Cameras.

The cameras have a motorised vari-focal lens of 2.7 ~ 12mm - this is a great feature that can make installation even easier, as you may not need to set the lens during the installation but can instead adjust the zoom from the dvr - it will automatically re-focus when ever you adjust the zoom.

The cameras also boasts IR night vision, meaning that it can see for up to 60 metres in complete darkness, thanks to the IR LEDs attached to it. These will automatically change the camera’s mode to night vision when the light drops to a certain level, meaning that monitoring continues in a seamless manner, even when the light is falling.

The cameras also provide 4MP better than HD images in true colour during the day thanks to its IR Cut Removable (ICR) filter - which as the name suggests filters out any IR light - which can saturate colour - during day mode.

A 1000GB DVR is able to store footage from all 6 cameras, at 15 frames per second, for approximately 2 days before it will start to overwrite. So be sure to choose plenty of HDD Storage from the drop down options.

Internet / SmartPhone

All of our Dahua systems can be connected to your router and configured so you can remote view them over the internet from a PC / Mac or even your iPhone / Android.

PC / Mac software usually comes on a CD with the DVR or can always be downloaded from the Dahua website here - called Pro Surveillance Software (PSS).

For your iPhone or Android phone you can visit your app store and download iDMSS (itunes) or gDMSS (android store).

Watching the Footage

Apart from viewing your system over the network or internet, the DVR also has a VGA and HDMI output meaning you could connect a computer monitor (VGA) and / or HD TV (HDMI) directly to the DVR. If required, using the options above, you can add a HD or VGA Monitor to your system. It also has 2 USB ports (1 for USB mouse (included in package) and 1 for easy exporting of data).

When viewing your footage on one of these monitors you can select multiple views including one camera full screen and a split view of all cameras at once.

Key Benefits


4MP Resolution - 2X high definition

Capture the evidence you need with crystal clear 4 Megapixel footage!

lens size

Motorised Zoom Lens

A Motorised Zoom lens allows you to adjust the zoom of the camera remotely from the DVR, a 2.7 ~ 12mm lens will give you an angle of view of approx 26° - 98°.

IP rated for outdoor use

Weather Proof

The cameras are IP67 rated, meaning they are weather proof and can be installed indoors or outdoors.

view your cctv over internet

Remote View

Once configured you can keep an eye on your property from anywhere in the world via computer or smartphone! Need help setting this up? call us for advice

Indoor or Outdoor use

True Colour Images

Not only do you get great night vision but these cameras also have a built in ICR (IR Cut Filter Removable) which blocks infrared light during daylight so you get true colour images!

Click on the "Options Help" tab for information about what cables come with the kit and hard drive recording times.

Sample Footage

Please make sure you select the highest resolution when viewing this footage.

There are several short clips showing actual footage of the Dahua HAC-HDW2401R-Z-G 4MP HD-CVI Camera in action, as you can see the camera provides exceptional image quality - with the added motorised zoom feature it makes this a very good option for many sites.

The first three clips we have the lens set to its widest angle (2.7mm lens) - the final three clips are at its most Zoomed in (12mm lens), this gives you very good knowledge of the kind of views capable from this camera.

Click on below images to see full specifications of cameras & DVR (opens in new page).
