5MP HiLook by Hikvision 4ch HDoC CCTV Kit with 4x Vandal Dome Cameras with 20M IR Night Vision

About the HLT413-5MP-BF

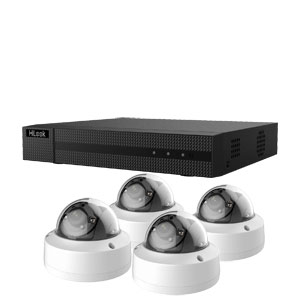

The HLT413-5MP-BF is a HiLook by Hikvision 4 camera HD-TVI (HDoC) CCTV kit. It comes with a 4 channel DVR and four 5MP vandal resistant dome cameras. As with all our kits, you can add cables, hard drives and a monitor as you need them.

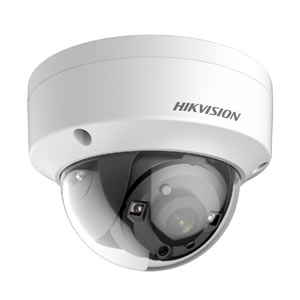

The cameras capture 5MP video with an 80 degree view from the 3.6mm lens, and infrared night vision reaches up to 20m. The domes are impact rated (IK10) and weatherproof (IP67), so they suit lower mounting positions. They can be powered down the coax cable (PoC).

The DVR powers the cameras down the same coax cable as the video (PoC), so you don't need a power supply at each camera. View the cameras on your phone with the free HiLookVision app.

Camera Features

• 5 Megapixel high-performance CMOS
• 3.6mm fixed lens - FOV 80.1°
• Analog HD output, up to 5MP resolution
• True Day/Night, OSD Menu, 2D DNR
• EXIR technology, up to 20m IR distance
• IP67 weatherproof, IK10
• Up the Coax(HIKVISION-C Protocol)
• PoC.af (Power over Coax)

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 4 Channel DVR
• Support HD-TVI, AHD, HD-CVI and analog cameras
• Supports 2 x IP Camera
• 1080P resolution real-time recording
• 5MP recording @ 12fps
• HDMI and VGA output at up to 1920x1080P resolution
• Supports h.265+
• Support up to 4-ch synchronous playback
• Internet & Smart Phone compatible

DVR Spec

Manufacturers Spec Sheet (PDF)
