Description

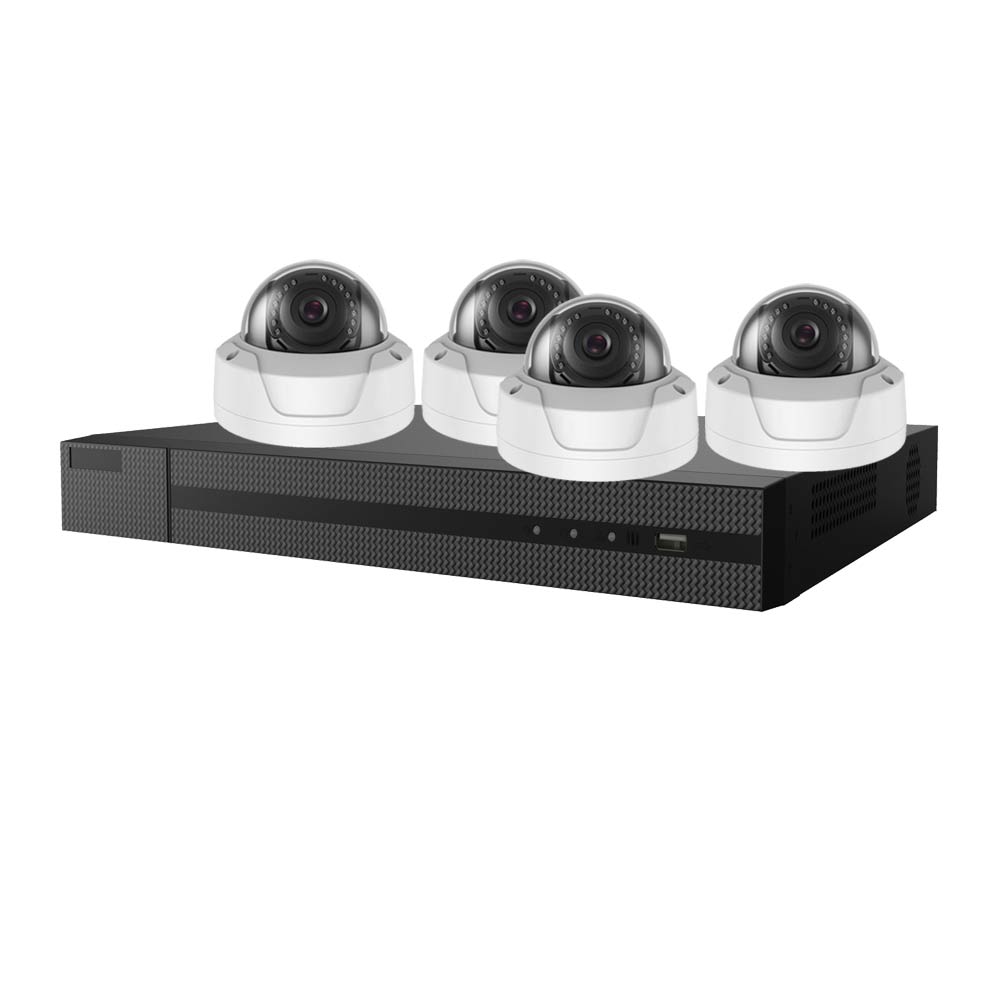

This is a 2.0 Megapixel / 1080P HD 4 camera IP CCTV system by HiLook.
Night Vision
The cameras provide amazing image quality in full colour during the day and when it gets dark the camera will
automatically switch over to night vision mode - where it can see in total darkness up to 30 metre's.
Indoor or Outdoor?
The Cameras can be installed indoors or outdoors thanks to its IP67 weatherproof housing, however its always best to install glass domes in such a way the rain does not
stick on the glass - as this can affect the vision.
Sleek Modern Design + IK10 Vandal Resistant
The cameras are quite small and compact so should not stand out like a sore thumb - they are also IK10 impact rated meaning they can take quite a beating, ideal if you need to position the camera low down where it might be subject to some vandalism.
Easy Installation
On top of the better than HD resolution, this is a PoE (Power over Ethernet) System. That means if the cameras are connected
directly to the PoE ports on the rear of the recorder - they do NOT need a power supply, but will be powered directly from the NVR.
This has many benefits, not least it can make installation extremely easy as all you need to do is run 1 Ethernet cable from each
camera to the recorder. Be aware PoE has a maximum working distance of 100 metre's.
The cameras can be mounted on a ceiling and then pointed in the desired direction, if mounted vertically on a wall cameras can only look directly forward.
Important Note: This is a 2 Axis camera, this means the camera is ideally suited for being mounted on a ceiling -
if you need to mount the camera on a wall it is advised you use the DS-1272ZJ-110
Wall mount bracket. If you do not use the wall mount bracket the camera will only be able to point directly forward when
mounted on a wall.
Internet / SmartPhone
All of our HiLook IP systems can be connected to your router and configured so you can remote view them over the internet from a PC /
Mac or even your iPhone / Android.
PC / Mac software usually comes on a CD with the NVR or can always be downloaded from the
HIKVision website here - called iVMS-4200.
For your iPhone or Android phone you can visit your app store and download iVMS-4500, or the new version is called "Hik-connect".
Watching the Footage
Apart from viewing your system over the network or internet, the NVR also has a VGA and HDMI output meaning you could connect
a computer monitor (VGA) and / or HD TV (HDMI) directly to the NVR. If required, using the options above, you can add a HD or VGA Monitor to your
system.
When viewing your footage on one of these monitors you can select multiple views including one camera full screen and a split
view of all cameras at once.
Click on the "Options Help" tab for information about what cables come with the kit and hard drive recording times.
