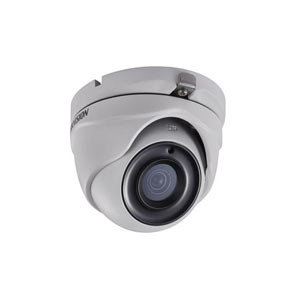

DS-2CE56D8T-ITM Hikvision HD TVI Ultra Low Light 1080P Turret Camera with 20M EXIR Night Vision

Product ID DS-2CE56D8T-ITM

0 reviews | Write a review

Trade Only Item

DS-2CE56D8T-ITM Hikvision HD TVI Ultra Low Light 1080P Turret Camera with 20M EXIR Night Vision

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Diagram

Description

The DS-2CE56D8T-ITM is a Hikvision 1080p ultra low light turret camera for HD-TVI (coax) CCTV systems.

Ultra low light means it holds a clear picture in very dim conditions before switching to infrared. EXIR night vision reaches up to 20m, and it copes well with bright backgrounds (120dB WDR).

It's weatherproof (IP67), and its settings can be changed from the recorder over the coax cable.

Key Features

2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR 2.0, up to 20m IR distance
IP67 weatherproof
Up the Coax(HIKVISION-C)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor	2MP CMOS Image Sensor
Effective Pixels	1920(H) x 1080(V)
Min. Illumination	Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	1/25 s to 1/50,000 s
Lens	2.8mm - Angle of View: 103.5°
Lens Mount	M12
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Wide Dynamic Range	120dB
Video Frame Rate	PAL: 1080p@25fps
HD Video Output	1 Analog HD output
Synchronization	Internal synchronization
Up the Coax	Support
Menu
Auto White Balance	Auto/MWB
BLC	Support
AGC	Support
Language	English / Chinese
Functions	Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions	-40 °C - 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC
Power Consumption	Max. 3.5W
Weather Proof Ratings	IP67
IR Range	up to 20m
Communication	Up the coax Protocol: HIKVISION-C(Coaxitron)

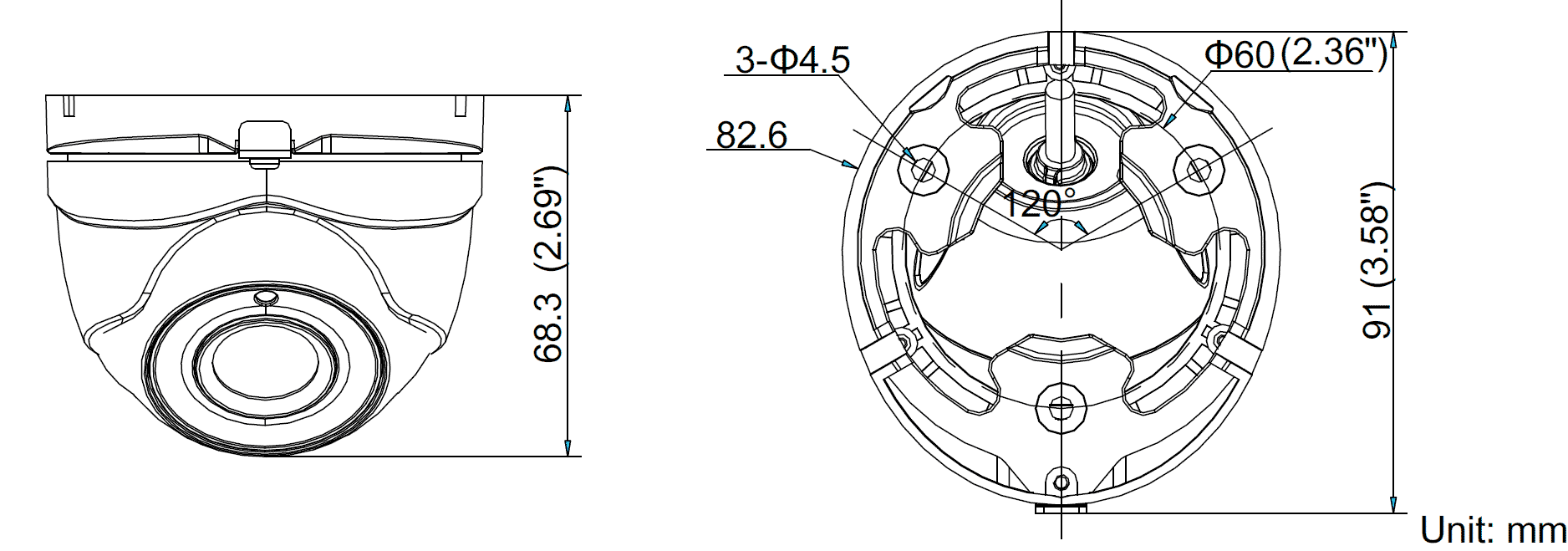

Dimensions	91mm x 82.6mm x 68.3mm
Weight	Approx. 350g
