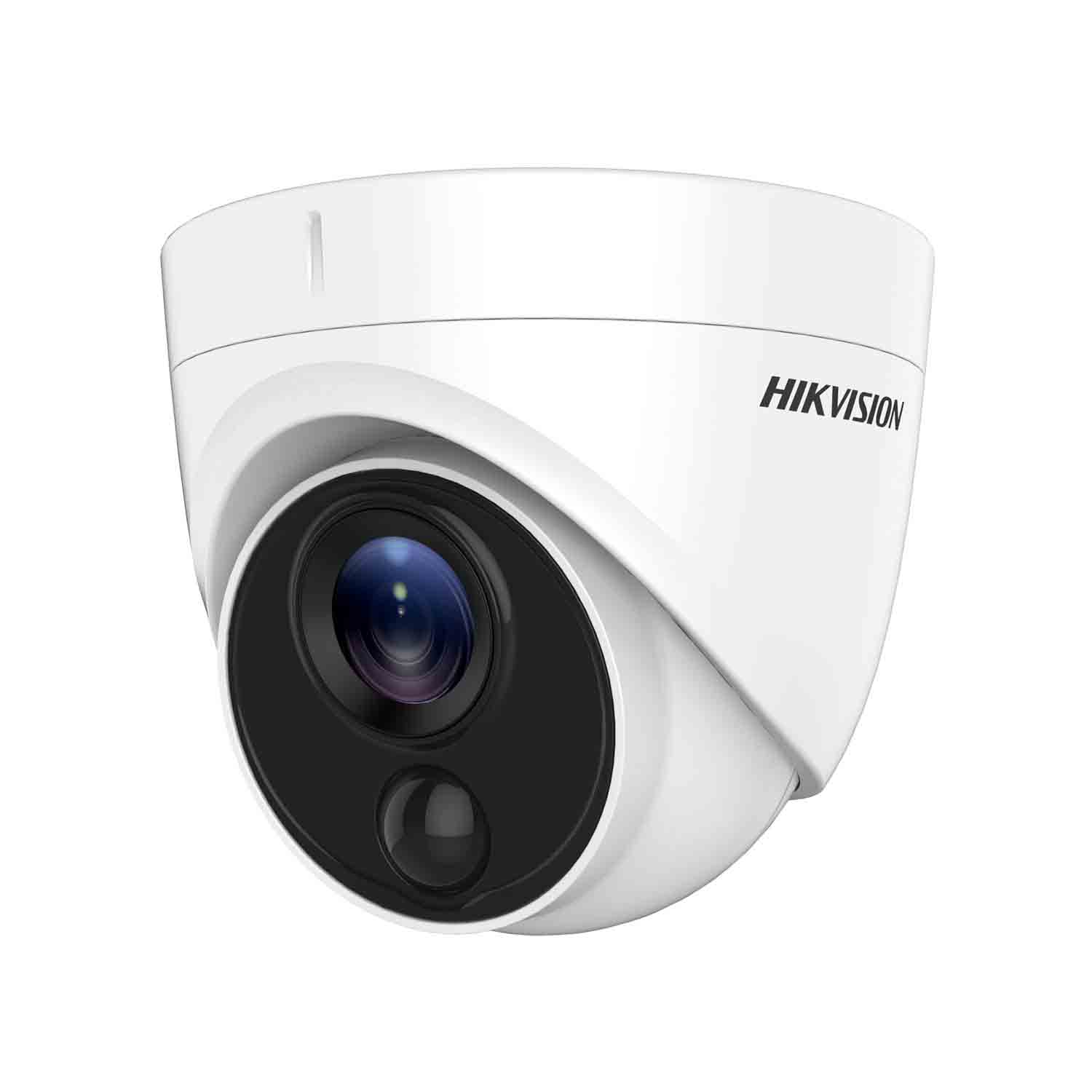

DS-2CE71D8T-PIRLO Hikvision HD-TVI 2MP Ultra Low Light Turret Camera with 20M EXIR, PIR with White Light Alarm
Product ID DS-2CE71D8T-PIRLO

DS-2CE71D8T-PIRLO Hikvision HD-TVI 2MP Ultra Low Light Turret Camera with 20M EXIR, PIR with White Light Alarm

Trade Only Item
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec

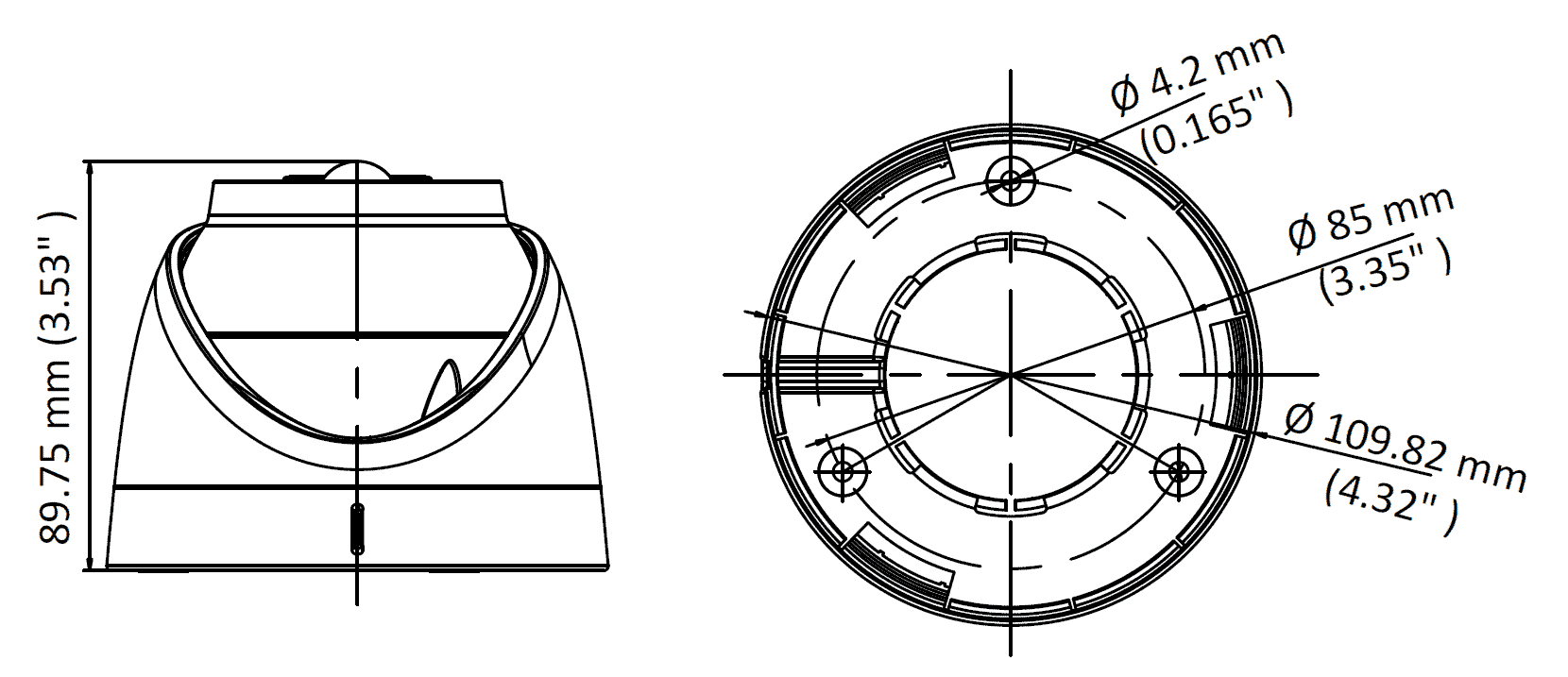

  • Diagram

Key Features of the DS-2CE71H0T-PIRL

  • 2 Megapixel CMOS
  • Ultra Low Light
  • 1920 × 1080 resolution
  • 2.8mm fixed lens - FOV 103.5°
  • PIR detection, strobe light alarm, alarm out
  • 130 dB true WDR, 3D DNR
  • Smart IR, up to 20 m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1920(H) x 1080(V)
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 103.5°
Lens Mount M12
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Wide Dynamic Range 130dB
Synchronization Internal synchronization
Menu
White Light Alarm / Off
Auto White Balance Auto/MWB
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
AGC Support
Language English / Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Alarm 1 alarm out
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 3.9W
Weather Proof Ratings IP67
IR Range up to 20m
PIR Angle and Range Angle: 110°, Range:11 m
White Light Range up to 20m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimensions Φ109.8mm x 89.75 mm
Weight Approx. 327g
