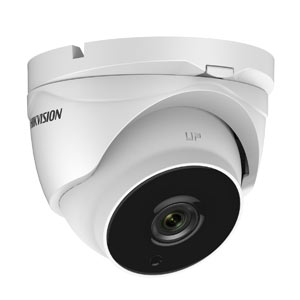

DS-2CE56D8T-IT3Z Hikvision HD TVI Ultra Low Light 1080P Motorised Zoom Turret Camera with 40M EXIR Night Vision

Product ID DS-2CE56D8T-IT3Z
0 reviews | Write a review
Trade Only Item
In Stock 0
Trade Only Item
3 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

About the DS-2CE56D8T-IT3Z

The DS-2CE56D8T-IT3Z is a Hikvision 1080p ultra low light motorised zoom turret camera for HD-TVI (coax) CCTV systems.

Ultra low light means it holds a clear picture in very dim conditions before switching to infrared. EXIR night vision reaches up to 40m and it copes well with bright backgrounds (120dB WDR). The 2.8 to 12mm motorised lens can be zoomed from the recorder. It's weatherproof (IP67).

Key Features

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • 2.8-12mm motorized vari-focal lens
  • True Day/Night, OSD Menu, DNR, Smart IR
  • True WDR, up to 120dB
  • EXIR 2.0, up to 40m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1920(H) x 1080(V)
Min. Illumination Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens Motorized VF lens; 2.8 - 12 mm
angle of view: 32.1° - 103°
Lens Mount Ø14
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Synchronization Internal synchronization
Menu
Auto White Balance Auto/MWB
BLC Support
AGC Support
Language English / Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 8W
Weather Proof Ratings IP67
IR Range up to 40m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimensions 134.3mm × 123.9mm × 111.4mm
Weight Approx. 750g
