**Clearance** ALQ-EPRH-16 ALTEQ 16ch 5in1 Hybrid (AHD/TVI/CVI/CVBS/IP) DVR
Product ID ALQ-EPRH-16

**Clearance** ALQ-EPRH-16 ALTEQ 16ch 5in1 Hybrid (AHD/TVI/CVI/CVBS/IP) DVR

£60.00
In Stock 0
Sold out

0 reviews | Write a review
1 Year Warranty
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

Details

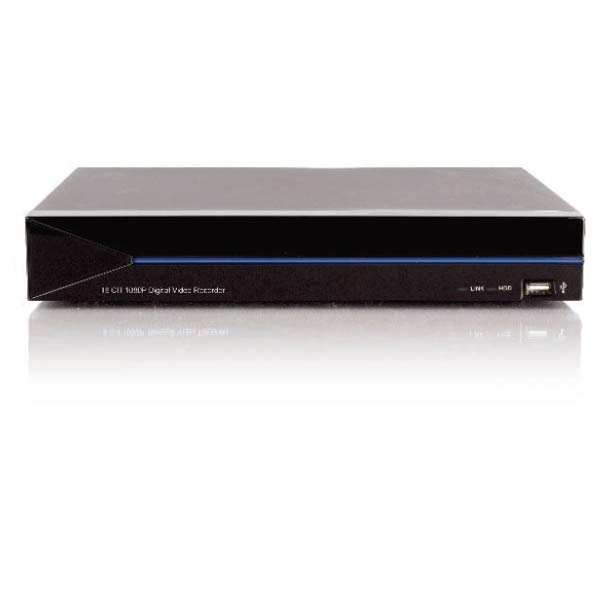

The ALQ-EPRH-16 is a 16 channel 5-in-1 digital video recorder, capable of recording a selection of AHD, TVI, CVI and analogue cameras. The DVR can automatically detect the video signal through coax cable up to 1080p video resolution and IP cameras up to 5MP resolution.

Key Features

  • 16 Channel
  • 1080p Resolution (AHD/TVI/CVI), 5MP Resolution (IP)
  • Up to 12TB HDD Storage
  • Mobile Viewing (RView app)
  • Supports AHD, TVI, CVBS, CVI and IP Cameras
  • H.264 Compression
  • Simultaneous HDMI, VGA & CVBS Output

Download

Manufacturers Spec Sheet (PDF)

Operating System Embedded Linux
Video Compression H.264
Analogue Inputs 16ch
Analogue Connectors 1.0Vpp, 75Ω BNC
Analogue Subtypes CVBS / AHD /TVI / CVI
Video Output Max Resolution 4K (2160P)
VGA Output Yes
BNC Output Yes
Loop Output No
HDMI Output Yes
Audio Input 8CH (RCA Phono)
Audio Output 1CH (RCA Phono)
Recording Mode Schedule, Manual, Motion, External Alarm
Max. Simultaneous Playback 16ch
Search Mode Time, Calendar, Event, Channel
USB Connections 3(2*Rear, 1*Front) USB2.0
Backup file format DAV, AVI
Browsers Internet Explorer
Mobile App RView for Android and iPhone
Alarm input 4ch
Alarm output 1ch
HDD Count 1 or 2 (up to 6TB each)
PTZ Connector 1x RS485
Ethernet port 10 / 100 Mbps Ethernet (RJ-45)
Network protocol TCP/IP, DHCP, DDNS, NTP, SMTP
Dimensions W403mm x D289mm x H58mm
Power supply DC12V / 4A
Working temperature -10°C ~ 60°C
Working humidity 10% ~ 90%
