Clearance ANP08B-P HiLook by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports

Product ID ANP08B-P

0 reviews | Write a review

£18.00

In Stock 0

Clearance ANP08B-P HiLook by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports

Clearance ANP08B-P HiLook by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports #1

Clearance ANP08B-P HiLook by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports #2

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

£18.00

Free Shipping

Summary
Full Spec

About the ANP08B-P

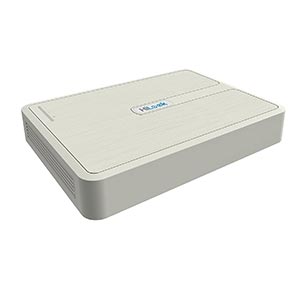

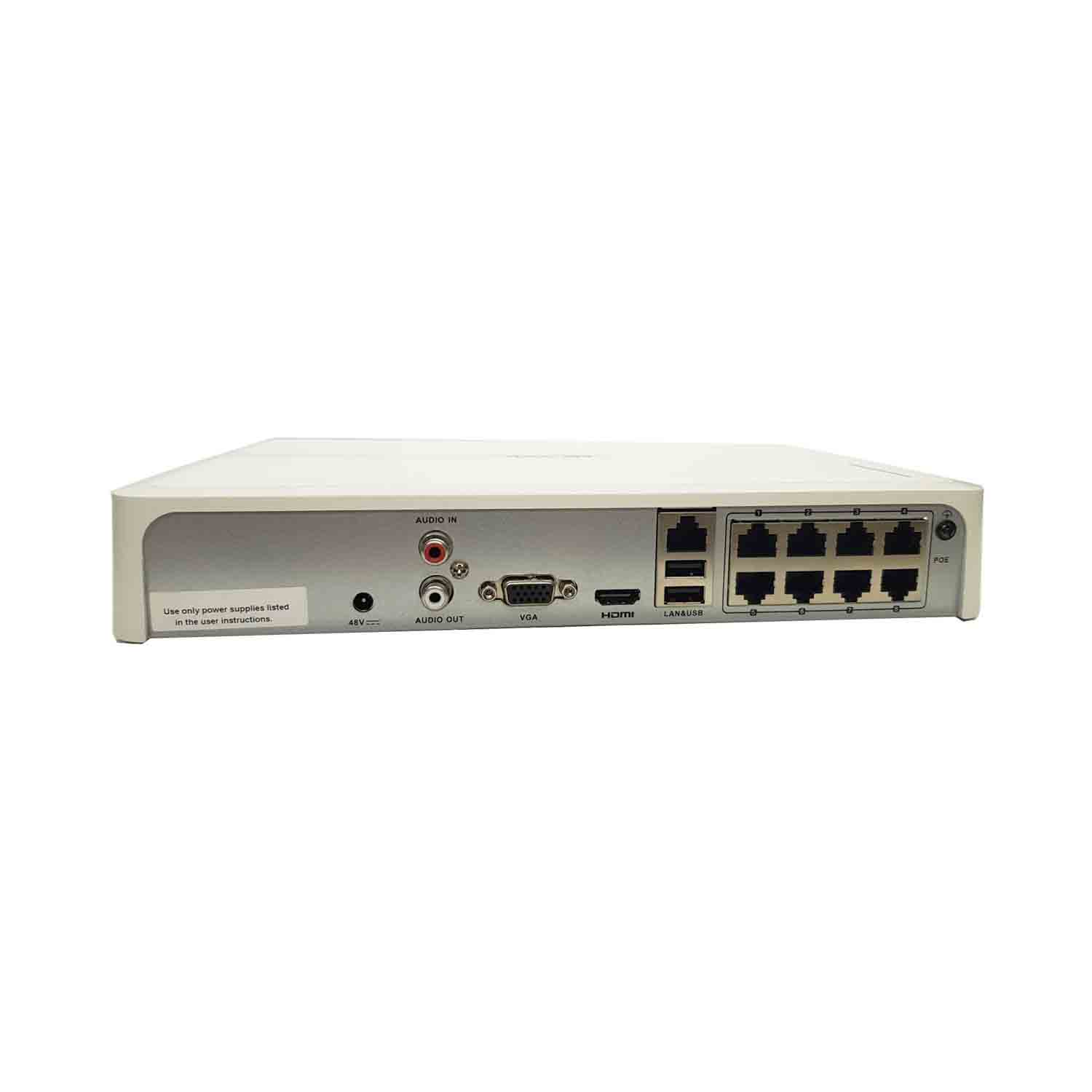

The ANP08B-P is a HiLook by Hikvision 8 channel 4MP mini NVR with 8 built in PoE ports. It's a clearance item.

Each camera plugs straight in with one network cable for power and video. It records cameras up to 4MP and has HDMI and VGA outputs. The hard drive isn't included.

Key Features

8CH Video Input
8CH Synchronous Playback
60Mbps
Up to 4 Megapixels resolution recording
HDMI and VGA Output
8 independent PoE network interfaces

Download

Manufacturers Spec Sheet (PDF)

IP video input	8CH
Two-way audio input	1CH, RCA (2.0 Vp-p, 1 kΩ)
Incoming bandwidth	60Mbps
Outgoing bandwidth	40Mbps
Recording resolution	4MP / 3MP / 1080p / 1.3MP / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI / VGA output	1CH, resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output	1-ch, RCA (Linear, 1 kΩ)
Live View / Playback resolution	4MP / 3MP / 1080P / 1.3MP / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding	2ch @ 4MP / 4ch @ 1080P
SATA	1 SATA interface
Capacity	Up to 6TB
Network interface	1 RJ-45 10 / 100 Mbps self-adaptive Ethernet interface 8 independent 100 Mbps PoE Ethernet interfaces
USB interface	2, USB2.0
Alarm Input	n/a
Alarm Output	n/a
Power supply	48V DC
Consumption	Max 10W (without HDD)
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Dimensions (W x D x H)	285 x 215 x 48mm
Weight	Approx. 1Kg (without hdd)
