| Motion Detection 2.0 |
| Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported. |
| Recording |
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution |
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate |
Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1.
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video bit rate |
32 Kbps - 10 Mbps |
| Audio bit rate |
64 Kbps |
| Dual-stream |
Support |
| Stream type |
Video, Video & Audio |
| Video and Audio |
| Analog and HD-TVI Video Input |
4CH; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HD-TVI Input |
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| AHD Input |
5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVI Input |
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVBS Input |
Support |
| IP Video Input |
2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| HDMI / VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode |
HDMI/VGA simultaneous output |
| Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Audio output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback |
4CH |
| Network Management |
| Total Bandwidth |
96 Mbps |
| Remote Connections |
32 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 10 TB capacity |
| USB interface |
2 x USB2.0 |
| General |
| Power supply |
12v DC, 1.5A |
| Consumption |
Max 15W |
| Working temperature |
-10 °C ~ +55 °C |
| Working humidity |
10% ~ 90% |

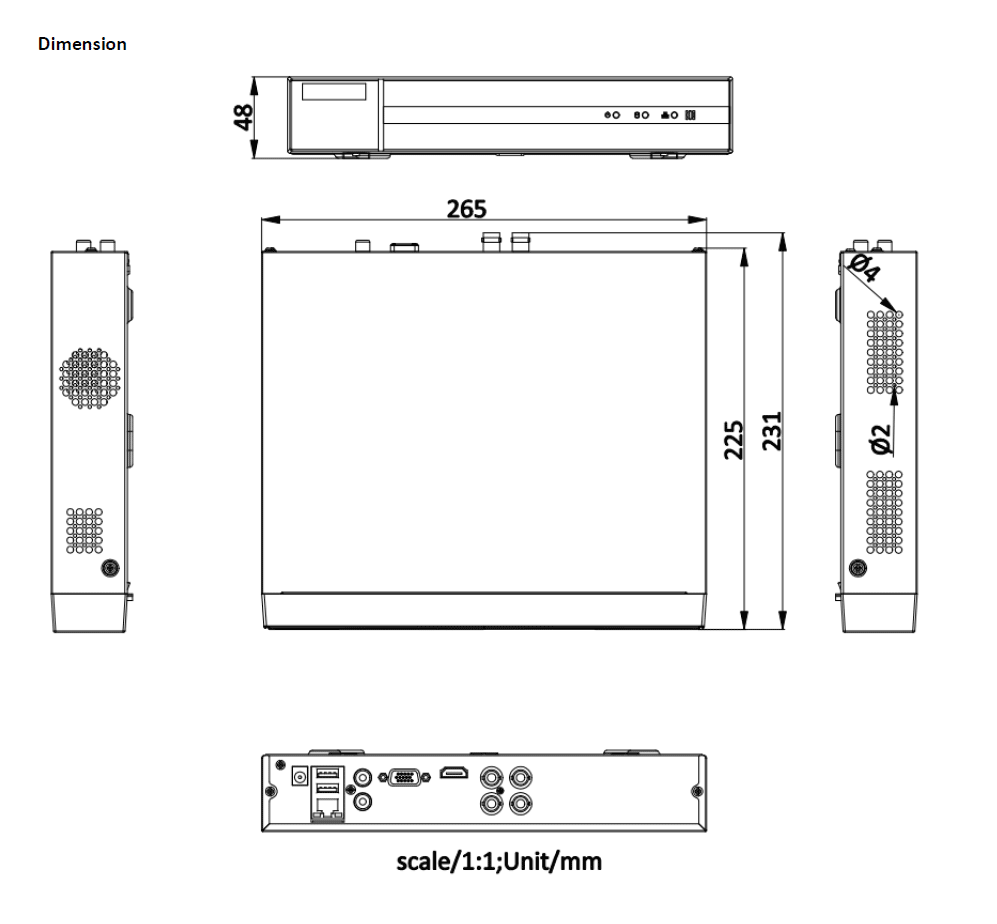

| Dimensions (W x D x H) |
260 × 222 × 45 mm |
| Weight |
Approx. 1.16Kg |
