iDS-7204HUHI-M1/XT Hikvision 4 Channel TVI 5MP AcuSense DVR (AoC)

Product ID iDS-7204HUHI-M1-XT

Trade Only Item

iDS-7204HUHI-M1/XT Hikvision 4 Channel TVI 5MP AcuSense DVR (AoC)

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Dimensions

About the iDS-7204HUHI-M1-XT

The iDS-7204HUHI-M1-XT is a Hikvision 4 channel 5MP AcuSense DVR for HD-TVI (coax) CCTV systems, with audio over coax.

Audio over coax means cameras with built in microphones send sound down the same cable as the video. AcuSense filters out alerts caused by rain, leaves and animals, so you're only alerted to people and vehicles.

It works with TVI, AHD, CVI and analogue cameras, and can take IP cameras too. The hard drive isn't included. It works with the free Hik-Connect app.

iDS-7204HUHI-M1-XT Key Features

4-channel 8MP 1U AcuSense Turbo HD DVR, 1x SATA bay (up to 12TB)
Deep learning Motion Detection 2.0 on all 4 analogue channels, human and vehicle classification
Perimeter Protection up to 4-ch (advanced model), Facial Recognition up to 2-ch, AcuSearch smart playback
5-in-1 signal input adaptively: HDTVI/AHD/CVI/CVBS, with IP camera support also available
HDTVI encoding up to 8MP@8fps (ch1), 3K/5MP@12fps all channels, H.265 Pro+ compression
HDMI output up to 2K (2560x1440), simultaneous VGA output
Hik-Connect remote access, ONVIF, 10/100 Mbps Ethernet, Wi-Fi dongle support via USB
12VDC 1.5A, max 10W (without HDD), 319x235x48mm, under 1.16kg

Download

Manufacturers Spec Sheet (PDF)

Smart Functions
Facial Recognition	Up to 2-ch face picture comparison alarm (HD analog camera), up to 16 face picture libraries
Perimeter Protection	Up to 4-ch human/vehicle analysis (advanced model)
Motion Detection 2.0	All analogue channels, deep learning human/vehicle classification
AcuSearch	4-ch smart playback by target type
Video and Audio
Analogue Video Input	4-ch, BNC (1.0 Vp-p, 75 Ohm), coaxitron connection supported
IP Video Input	4-ch (up to 8-ch), each up to 8MP
HDTVI Input	8MP@8/12fps (ch1 only), 3K@25/20fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
AHD Input	5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
HDCVI Input	8MP@12/15fps, 3K@25fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
CVBS Input	PAL/NTSC
HDMI Output	1-ch, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, simultaneous with VGA
VGA Output	1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, simultaneous with HDMI
CVBS Output	1-ch, BNC, PAL: 704x576, NTSC: 704x480
Audio Input	1-ch RCA (2.0 Vp-p, 1 KOhm), 4-ch via coaxial cable
Audio Output	1-ch RCA (Linear, 1 KOhm)
Two-Way Audio	1-ch RCA (using first audio input)
Synchronous Playback	4-ch
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main: 8MP@8fps (ch1), 3K@12fps, 5MP@12fps, 4MP@15fps, 1080p/720p@25fps(P)/30fps(N). Sub: WD1/4CIF/CIF@25/30fps
Video Bitrate	32 Kbps to 10 Mbps
Audio Compression	G.711u, 64 Kbps
Network
Total Bandwidth	96 Mbps
Network Interface	1x RJ45 10/100 Mbps self-adaptive Ethernet
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Remote Connections	32
Wi-Fi	Via USB Wi-Fi dongle

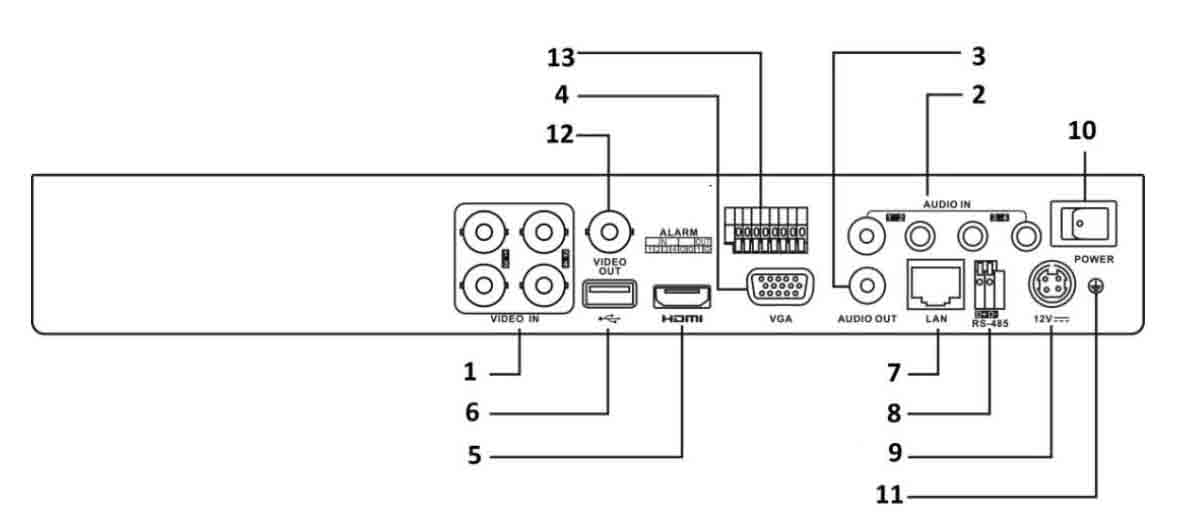

Interfaces and General
SATA	1x SATA, up to 12TB per disk
USB	Front: 1x USB 2.0, Rear: 1x USB 3.0
Serial	RS-485 (half-duplex)
Alarm In/Out	N/A (optional)
Power Supply	12VDC, 1.5A
Max Consumption	10W (without HDD)
Working Temperature	-10°C to 55°C
Working Humidity	10% to 90%
Dimensions (W x D x H)	319 x 235 x 48mm
Weight	Under 1.16kg
