Video / Audio Input |
Audio Input |
4ch |
Video compression |
H.264,H.264+ |
Analog and HD-TVI Video Input |
16CH; BNC interface (1.0Vp-p, 75 Ω) |
Supported Camera Types |
Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input |
Video input Interface |
BNC (1.0 Vp-p, 75Ω) |
Audio compression |
G.711u |
Audio input Interface |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way audio in |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video / Audio Output |
HDMI / VGA output and HDMI2 |
HDMI1 & VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz,
1280 × 720/60Hz, 1024 × 768/60 Hz |
CVBS Output |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
Recording resolution |
3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame rate |
Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps
Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps |
Video bit rate |
32 Kbps - 10 Mbps |
Stream type |
Video, Video & Audio |
Audio output |
2-ch, RCA (2.0 Vp-p, 1 kΩ) |
Playback Resolution |
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous playback |
16CH |
Network Management |
Remote Connections |
128 |
Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS,ONVIF |
Hard Disk |
SATA |
4 SATA interfaces |
Capacity |
Up to 6 TB capacity for each disk |

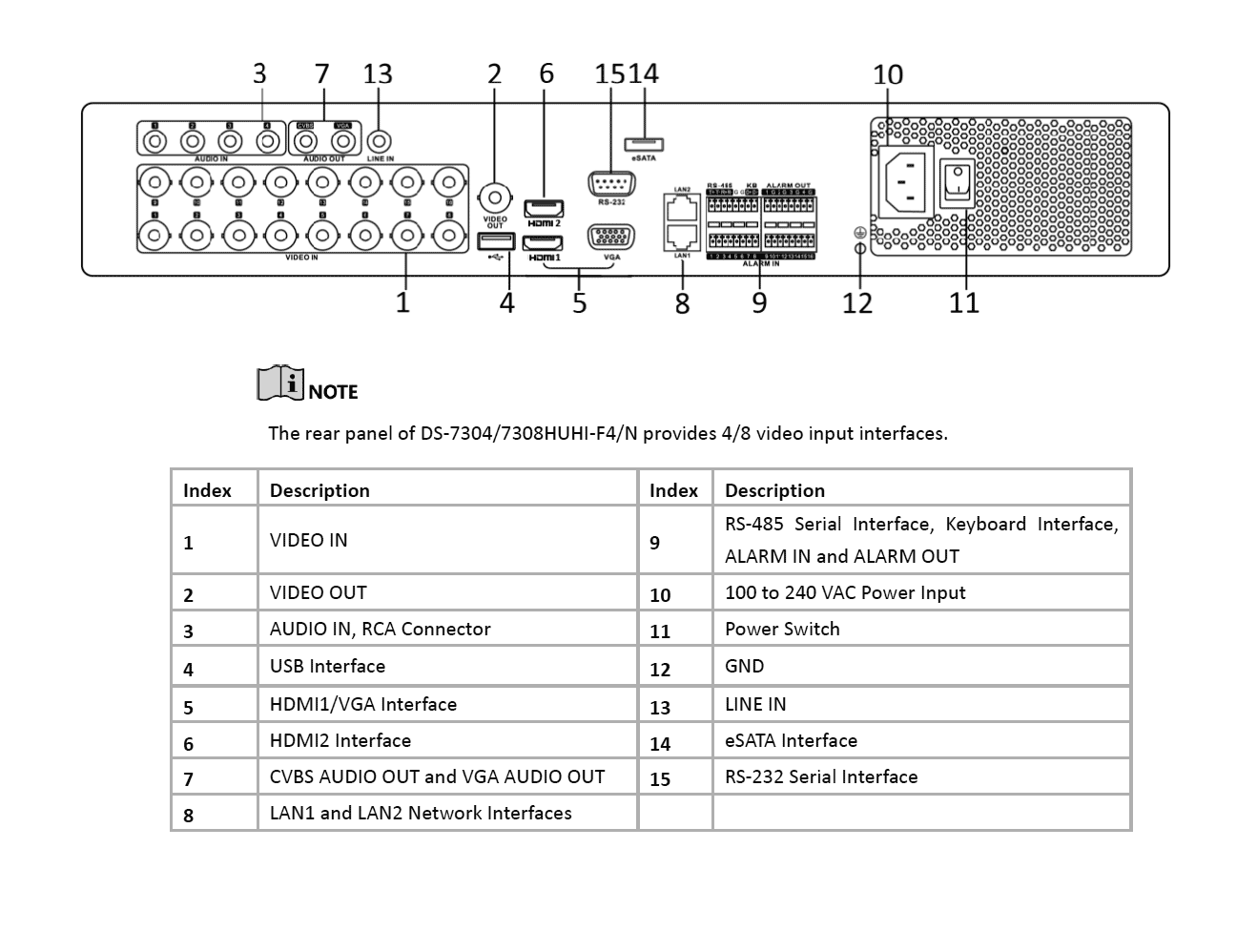

External Interface |
Network interface |
2; 10M / 100M /1000M self-adaptive Ethernet interface |
Serial interface |
1 RJ45 RS-232 interfaceï¼›1 RS-485 interface; 2 RS-485 keyboard interface |
USB interface |
2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
Alarm in / out |
16 / 4 |
General |
Power supply |
100 ~ 240VAC |
Consumption |
Max 65W |
Working temperature |
-10 °C ~ +55 °C |
Working humidity |
10% ~ 90% |
Dimensions (W x D x H)) |
445 x 390 x 70 mm |
Weight |
Approx. 5Kg |
