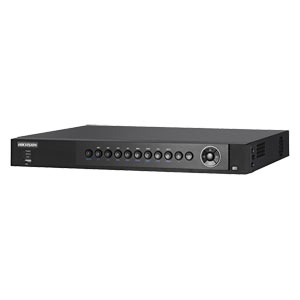

DS-7608HUHI-F2-N Hikvision 8 Channel Hybrid DVR (3MP) / NVR (8MP) with CVBS (Turbo3.0)
Product ID DS-7608HUHI-F2-N

DS-7608HUHI-F2-N Hikvision 8 Channel Hybrid DVR (3MP) / NVR (8MP) with CVBS (Turbo3.0)

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

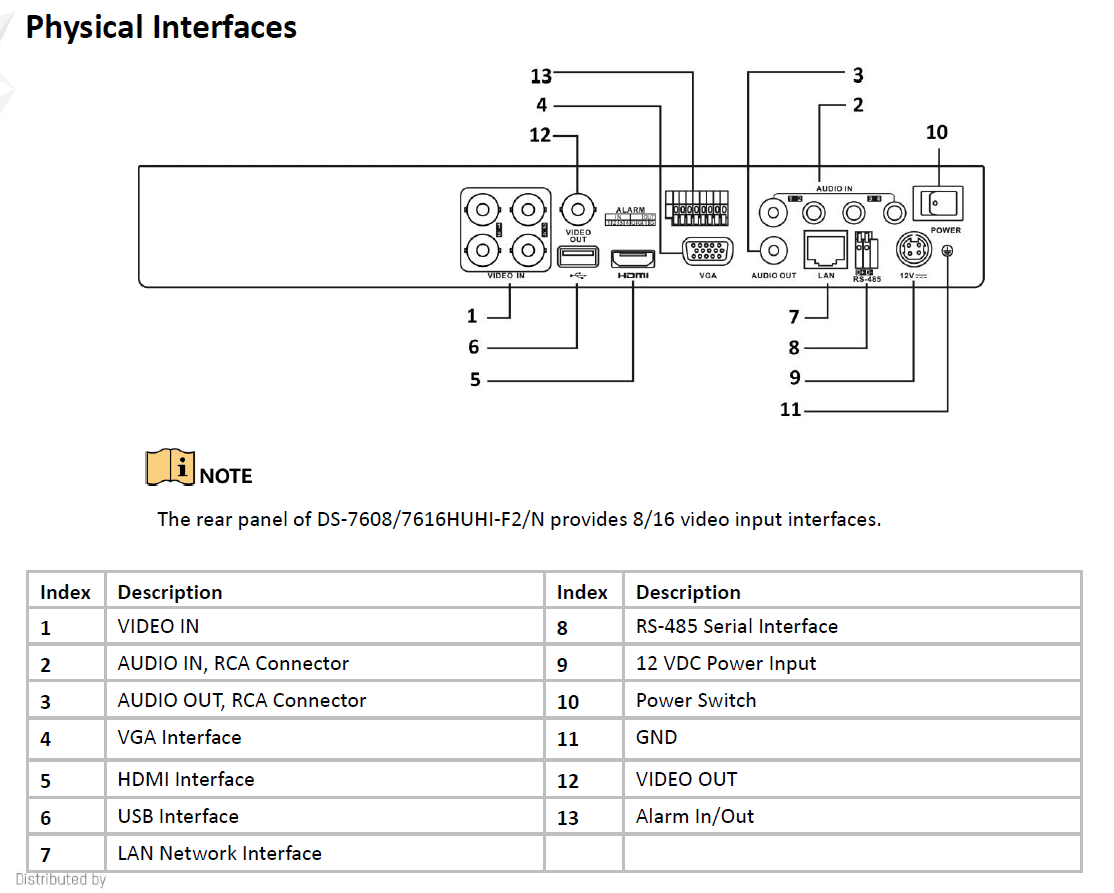

  • Diagram

Key Features

  • Hybrid DVR, 8x HD Cameras (up to 3MP) + 8x IP Cameras (up to 8MP)
  • H.264, H.264+ & Dual-stream video compression
  • Support HD-TVI, IPC,AHD and analog cameras with adaptive access
  • Support Cloud storage (One Drive, Google Drive or Drop Box)
  • Full channel 1080P resolution real-time recording
  • 15fps recording on 3MP
  • HDMI and VGA output can be configured simultaneous or independent. If simultaneous, up to 4K (3840 × 2160) resolution is supported; if independent, up to 1920 × 1080 resolution for VGA output and up to 4K (3840 × 2160) resolution for HDMI output
  • Also includes 1 x BNC (CVBS) Video Output
  • Long transmission distance over coax cable
  • Support up to 8-ch synchronous playback at 1080P resolution
  • Internet & Smart Phone compatible

Download

Manufacturers Spec Sheet (PDF)

Compatibility

  • HD-TVI: Any Hikvision HD-TVI Camera, Including 3MP
  • AHD: Any AHD CCTV Camera
  • Analogue: Any Analogue CCTV Camera
  • Hikvision or Hiwatch IP Cameras
Video / Audio Input
Audio Input 4ch
Video compression H.264, H.264+
Analog and HD-TVI Video Input 8CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Cameras Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface BNC (1.0 Vp-p, 75Ω)
IP Video Input 8-ch Up to 8MP resolution
Network bandwidth 128Mbps
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
CVBS output 1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576
VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate Main stream: 3 MP@15fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps - 10 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Playback Resolution 3MP / 1080P / 720P / VGA / WD1 / 4CIF / CIF
Synchronous playback 8CH
Network Management
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIFF
Hard Disk
SATA 2 SATA interface
Capacity Up to 6 TB capacity for each disk

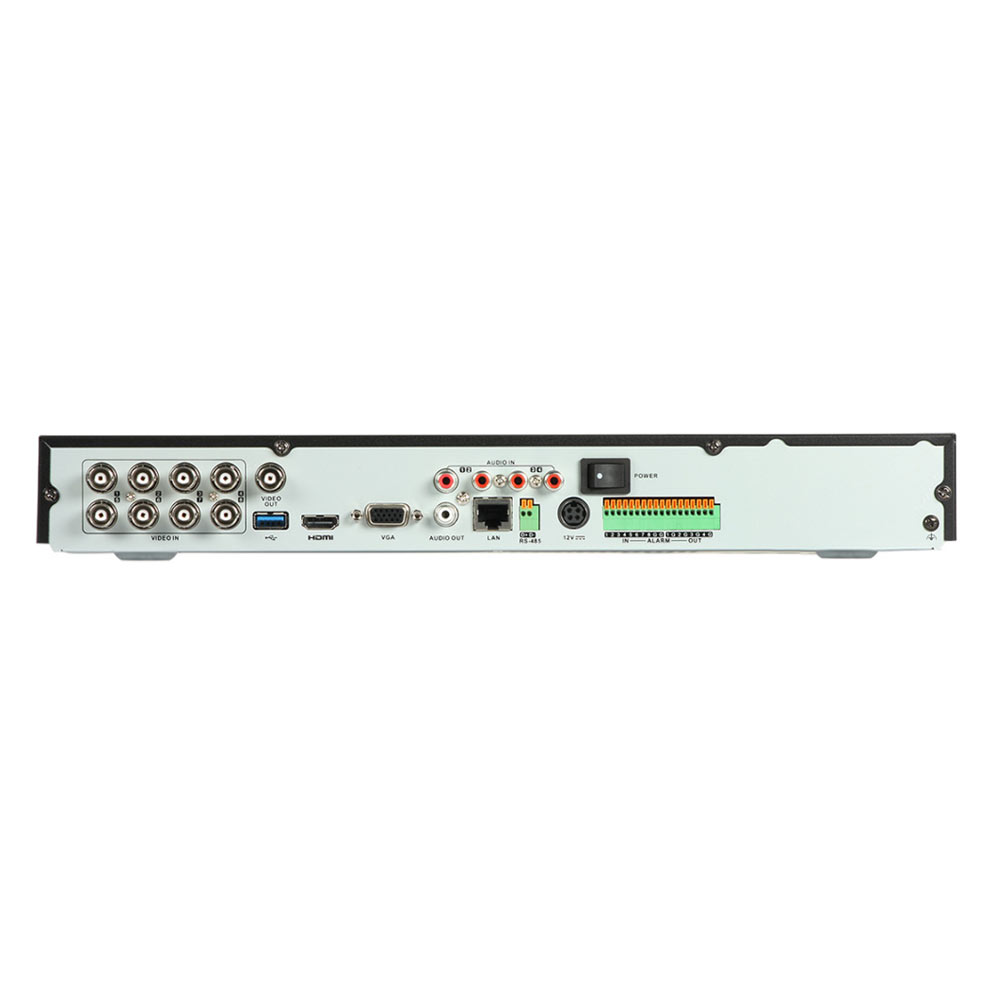

External Interface
Network interface 1; RJ45 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out 8/4
General
Power supply 12v DC
Consumption Max 20W
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Chassis 380mm 1U chassis
Dimensions 380 × 320 × 48 mm
Weight Approx. 2Kg
