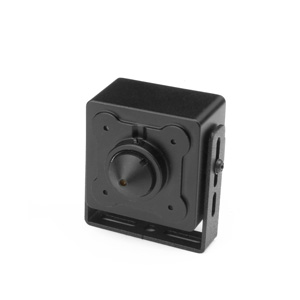

HAC-HUM3101B Dahua HD-CVI 720P Mini Covert Camera with Audio Input
Product ID HAC-HUM3101B

HAC-HUM3101B Dahua HD-CVI 720P Mini Covert Camera with Audio Input

Login For Prices
In Stock 0
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/3" 1Megapixel CMOS
  • 25fps@720P
  • High speed, long distance real-time transmission
  • HD and SD switchable
  • OSD Menu, control over coaxial cable, Audio
  • WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • 3.6mm fixed lens
  • DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor 1/3” 1Megapixel CMOS
Effective Pixels 1280(H) × 720(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@720P
Synchronization Internal
Min. Illumination 0.05Lux/F2.8
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night Auto(Electronic) / Color / B/W
Backlight Compensation WDR (120dB)
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 3.6mm
Angle of View H: 79.7º
Mount Type M12
General
Power Supply DC12V±10%
Power Consumption Max 2.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
(Video & Data)		 Over 800m via 75-3 coaxial cable
Ingress Protection n/a

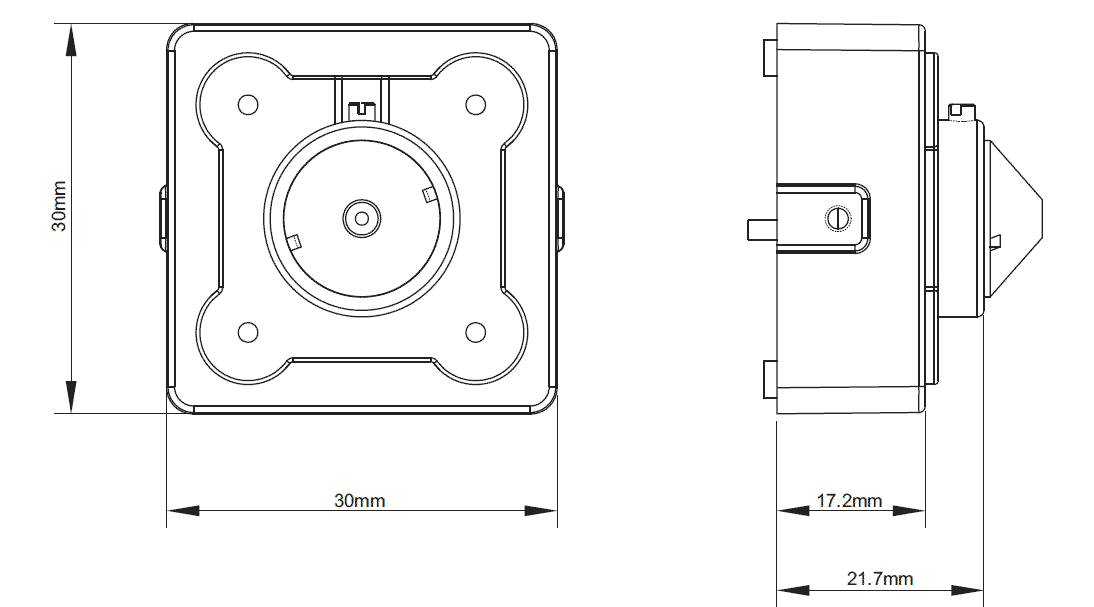

Dimensions 30mm × 30mm × 21.7mm
Weight 0.06kg
Material Metal
Others 1-channel audio in
