Product ID IPN5108P

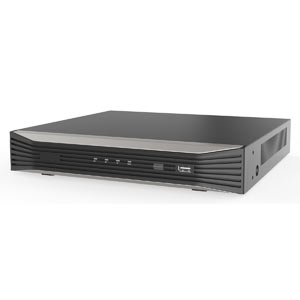

IPN5108P iSentry 8 Channel h.265 4K NVR with 8 PoE ports

In Stock 0
0 reviews | Write a review
1 Year Warranty

Free Shipping

  • Summary
  • Full Spec

Key Features

  • 8 IP Camera Video Inputs
  • 60Mbps
  • Support PnP for easy IPC discovery and usage
  • Up to 8 Megapixels resolution recording,storage and playback
  • Simultaneous HDMI and VGA output, the resolution is up to 1080P
  • Up to 8 channels synchronously playback
  • Intergrated 8x 100M PoE interfaces
Video / Audio Input
IP Video Input 8CH
Two-way audio input 1CH, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 60Mbps
Outgoing bandwidth 64Mbps
HDMI / VGA output 1 each
Audio output 1-ch, RCA
Live view / Playback resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/VGA/D1/CIF
Recording resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/VGA/D1/CIF
Synchronous playback 8 CH ; 1 x 4K @ 25fps, 3 x 4MP @ 20fps, 4 x 1080p @ 25fps, 8 x 720p @ 25, 16 x D1
Capacity Up to 6TB
External Interface
Network interface 1 x RJ-45 10/100Mbps self-adaptive Ethernet interface
Serial Interface n/a
USB interface 2 x USB2.0
Alarm In 4
Alarm Out 1
Interface 8 independent 100Mbps PoE Ethernet interfaces
Max. Power Max 30W for single port
Max 108W in total ( 13.5W for each
Supported Standard 802.3at
Power supply 52V DC
Consumption Max 8W
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 44mm × 260mm × 240mm
Weight Approx. 1.2Kg (without hdd)
