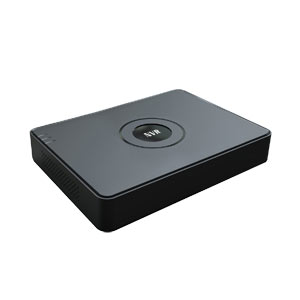

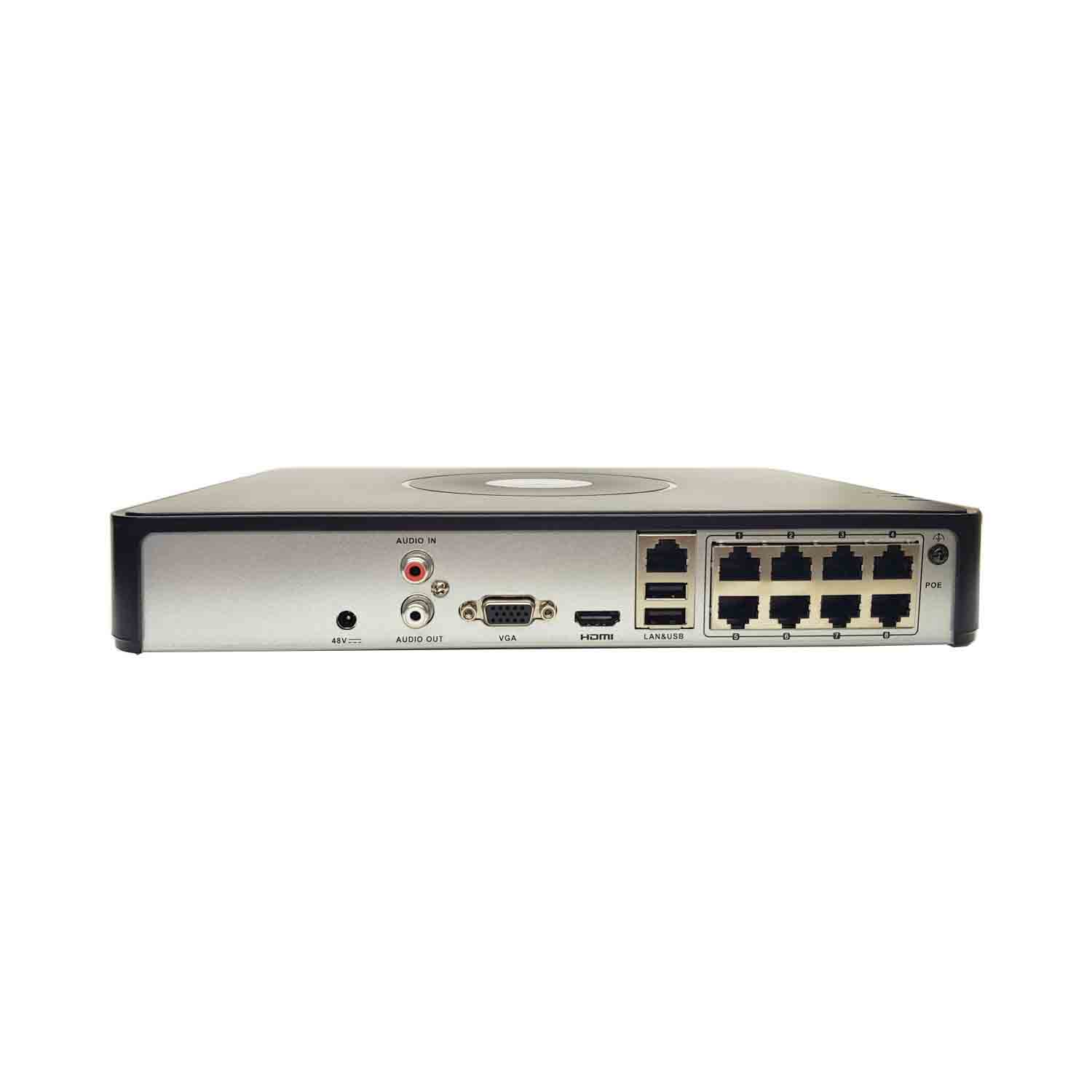

NVR-108-A-8P HiWatch by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports
Product ID NVR-108-A-8P

NVR-108-A-8P HiWatch by Hikvision 8 Channel 4MP Mini NVR with 8 PoE Ports

£75.00
In Stock 0
Sold out

0 reviews | Write a review
1 Year Warranty
IP CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Videos
  • Full Spec

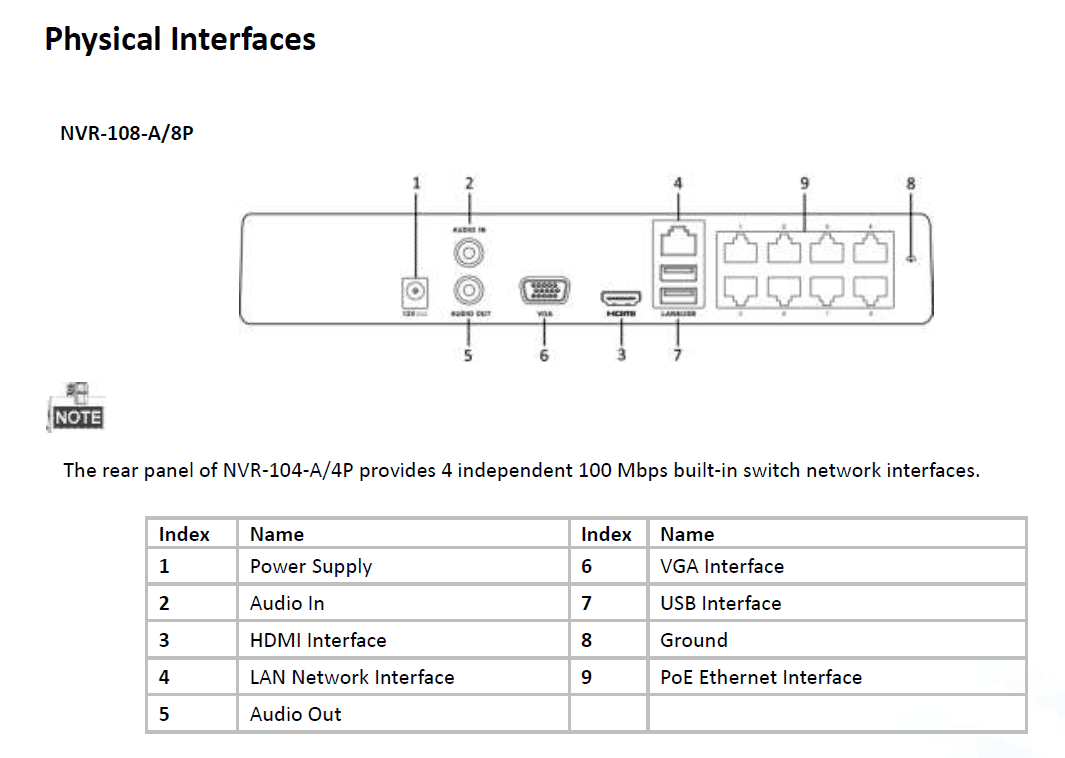

  • Diagram

Key Features

  • 8CH Video Input
  • 60Mbps
  • Up to 4 Megapixels resolution recording
  • HDMI and VGA Output
  • 8 independent PoE network interfaces

Download

Manufacturers Spec Sheet (PDF)

Please make sure you select the highest resolution when viewing this footage.

Video Tutorials - HiWatch NVR

IP video input 8CH
Two-way audio input 1CH, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 60Mbps
Outgoing bandwidth 40Mbps
Recording resolution 4MP / 3MP / 1080p / 1.3MP / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rates Main stream: 50fps
Sub stream: 50fps
HDMI / VGA output 1CH, resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Live View / Playback resolution 4MP / 3MP / 1080P / 1.3MP / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding 2ch @ 4MP / 4ch @ 1080P
SATA 1 SATA interface
Capacity Up to 6TB
Network Protocols TCP/IP, DHCP, Hik-Connect, DDNS, NTP, SADP, SMTP, UPnPâ„¢
Network interface 1 RJ-45 10 / 100 Mbps self-adaptive Ethernet interface
8 independent 100 Mbps PoE Ethernet interfaces
USB interface 2, USB2.0
Alarm Input n/a
Alarm Output n/a
Power supply 48V DC
Consumption Max 18W (without HDD)
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 285 x 215 x 48mm
Weight Approx. 1Kg (without hdd)
