**Clearance** NVR-216M-A-8P HiWatch by Hikvision 16 Channel 6MP NVR with 8 PoE Ports
Product ID NVR-216M-A-8P

**Clearance** NVR-216M-A-8P HiWatch by Hikvision 16 Channel 6MP NVR with 8 PoE Ports

£109.00
0 reviews | Write a review
1 Year Warranty
IP CCTV

  • Summary
  • Videos
  • Full Spec

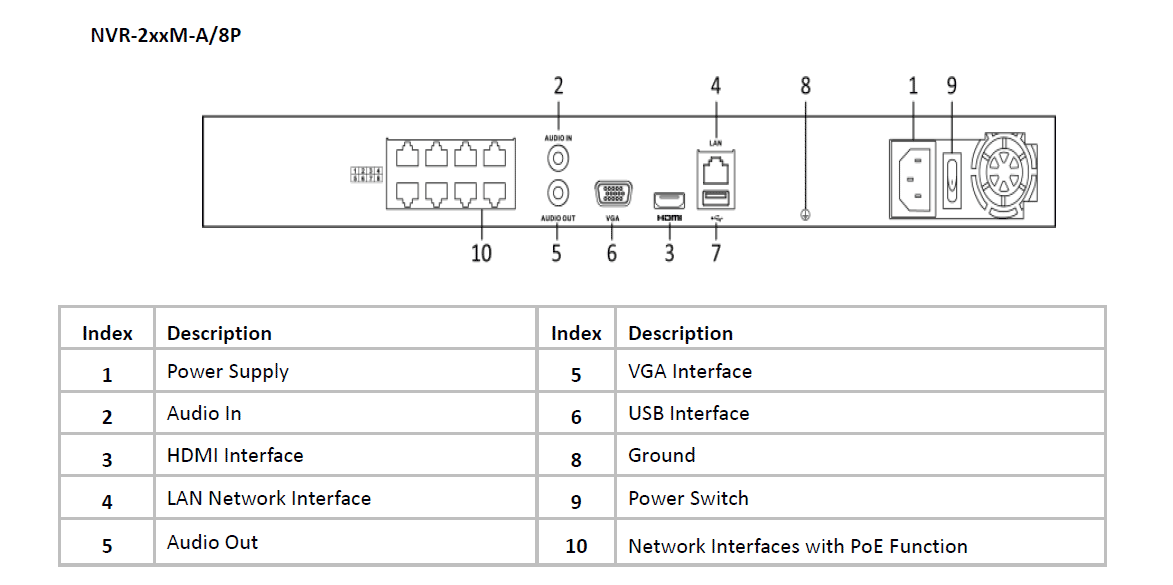

  • Diagram

Key Features

  • Up to 8/16 ch ONVIF conformant IP cameras input
  • Live view of the connected camera at up to 6 MP resolution
  • H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
  • Full channel recording at up to 6MP resolution
  • HDMI output and VGA output at up to 1920×1080p resolution
  • Up to two SATA interface s (up to 4 TB of capacity per HDD)
  • Up to 16 ch synchronous playback at 4CIF resolution
  • Smart search for efficient playback
  • USB 3.0 provides high speed file transfer and backup
  • Supports multiple VCA(Video Content Analytics) events for IP cameras
  • Hik Connect for easy network management
  • Gigabit E thernet network interface
  • 8 independent PoE network interfaces provided

Download

Manufacturers Spec Sheet (PDF)

Please make sure you select the highest resolution when viewing this footage.

Video Tutorials - HiWatch NVR

IP video input 16CH
Two-way audio input 1CH, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 160Mbps
Outgoing bandwidth 80Mbps
Recording resolution 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rates Main stream: 50fps
Sub stream: 50fps
HDMI / VGA output 1CH, resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Live View / Playback resolution 6MP / 5MP / 4MP / 3MP / 1080P / 1.3MP / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding 6ch @ 1080P / 12ch @ 720P / 16ch @ 4CIF
SATA 2 SATA interface
Capacity Up to 6TB each
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
8 independent 100 Mbps PoE Ethernet interfaces
USB interface 1 x USB2.0, 1 x USB3.0
Alarm Input n/a
Alarm Output n/a
Power supply 100 to 240 VAC
Consumption Max 10W (without HDD / PoE)
PoE Power: Max 120W
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 385 x 315 x 52mm
Weight Approx. 1Kg (without hdd)
