| Main Processor |
Quad-core embedded processor |
| Operating System |
Embedded Linux |
| Video |
| IP Camera Input |
16 channel |
| Display |
| Interface |
1 HDMI, 1 VGA |
| Resolution |
3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(22 x 18), Video Loss & Camera Blank |
| Alarm Input |
16 Channel, Low Level Effective,
Green Terminal Interface |
| Relay Output |
4 Channel, NO/NC Programmable,
Green Terminal Interface |
| Playback & Backup |
| Sync Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device / Network |
| Storage |
| Internal HDD |
4 SATA III ports, up to 6TB each disk |
| HDD Mode |
Single |
| Auxiliary Interface |
| USB |
2 USB Ports (1 USB2.0, 1 USB3.0) |
| RS232 |
1 port, For PC communication & Keyboard |
| RS485 |
1 port, For PTZ control |
| Recording |
| Compression |
H.265/H.264 |
| Resolution |
8Mp, 6Mp, 5Mp, 4Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. |
| Record Rate |
Max 200Mbps |
| Bit Rate |
16Kbps ~ 20Mbps Per Channel |
| Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Network |
| Interface |
1 x RJ-45 port (10/100M/1000M) |
| Ethernet |
1 x Independent 1000Mbps Ethernet Port |
| PoE |
16 ports (IEEE802.3at/af) |
| Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access |
128 users |
| Smart Phone |
iPhone, iPad, Android |
| General |
| Power Supply |
AC 100~240V, 50/60 Hz |
| Power Consumption |
NVR: 13.7W(without HDD) / PoE Port: Max 25.5W for single port,150W in total |
| Working Environment |
-10°C ~+55°C / 10~90%RH / 86~106kpa |

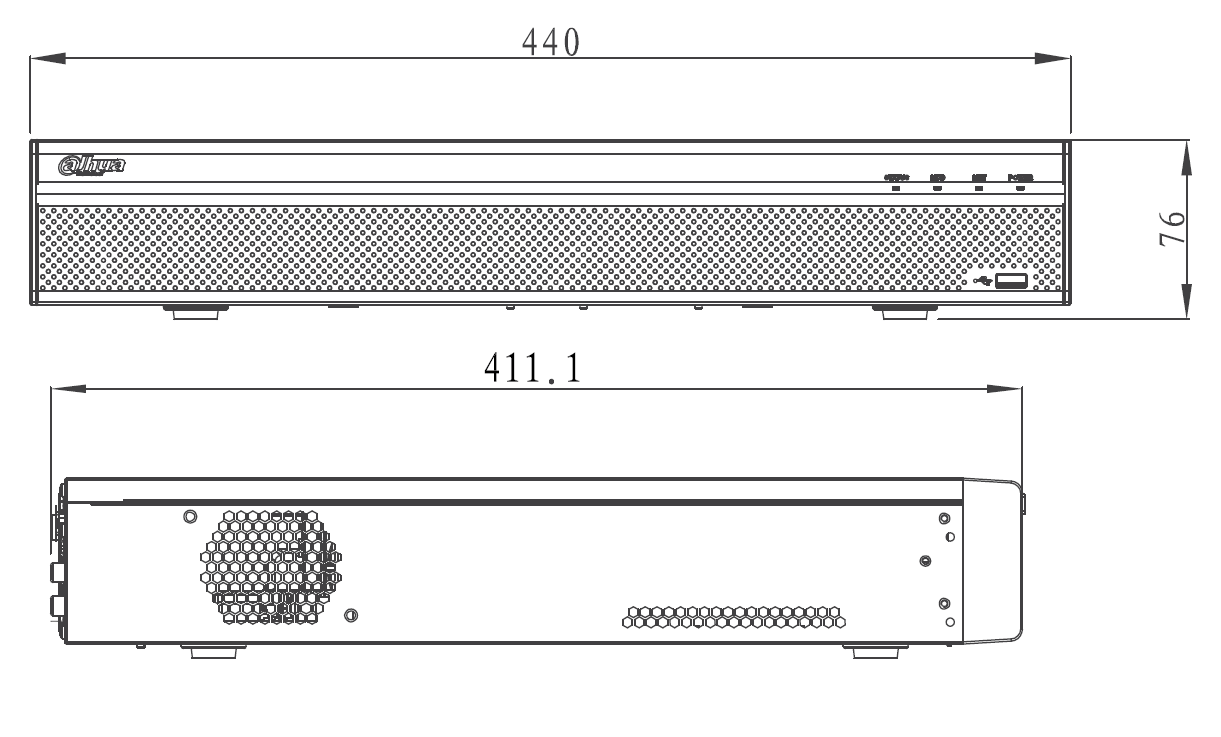

| Dimension |
1.5U, 440mm x 411.1mm x 76mm |
| Weight |
Approx. 4.7Kg |
