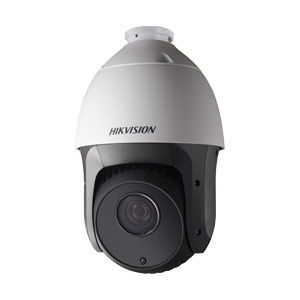

DS-2AE5223TI-A Hikvision HD-TVI 1080P Pan Tilt & 23X Zoom Camera with 150M Night Vision
Product ID DS-2AE5223TI-A

DS-2AE5223TI-A Hikvision HD-TVI 1080P Pan Tilt & 23X Zoom Camera with 150M Night Vision

Trade Only Item
In Stock 0
0 reviews | Write a review
2 Year Warranty
HD-TVI CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec
  • Diagram

Description

This is an amazing camera, it provides full HD 1080P resolution and has full control of Pan Tilt & Zoom - with up to 23 Times Zoom and 150 Metres Night Vision!

Key Features

  • 2MP CMOS Image Sensor
  • Full HD 1080P
  • 23X optical zoom, 16X digital zoom
  • DWDR
  • Up to 150m IR distance
  • True Day / Night

Download

Manufacturers Spec Sheet (PDF)

Compatibility

To make full use of the motorised pan tilt & zoom camera we strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 1/3" CMOS
Effective Pixels 1920 x 1080
Signal System PAL
Min. Illumination F1.4, AGC On: Color: 0.05lux, B/W: 0.005lux
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S/N Ratio More than 50dB
BLC On/Off
Digital WDR Support
Shutter Time 1/1s~1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 8 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10-1000mm (Wide-Tele)
Max Aperture F1.4~F3.5
Pan and Tilt
Pan Range 360° endless
Pan Speed Pan Manual Speed: 0.1°-400° / s; Pan Preset Speed: 400° / s
Tilt Range -15°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°-120° / s; Tilt Preset Speed: 200° / s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power loss recovery Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Freeze Frame Support
Alarm
Alarm Input 2
Alarm Output 1
Infrared
IR Distance 150m
Input / Output
Turbo HD Output 1 turbo HD720P/1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language English, Chinese
Power 24VAC, Max. 20W
Working Temperature / Humidity -30°C~+65°C / 90% or less
Protection Level IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection

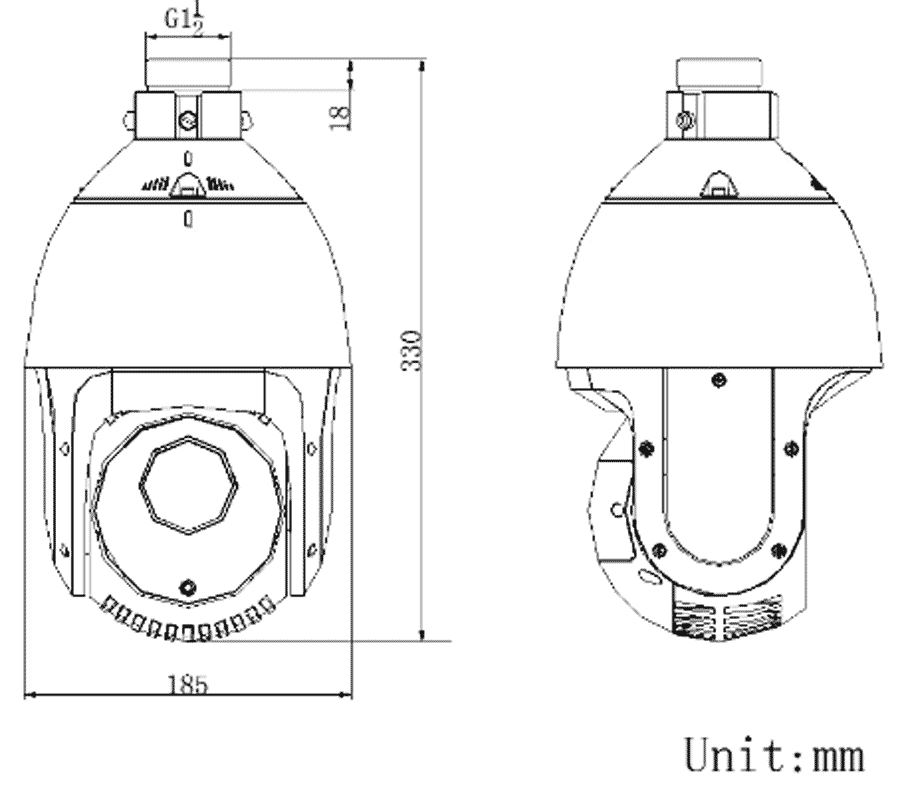

Dimensions Φ185mm × 330(mm)
Weight 4kg
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
