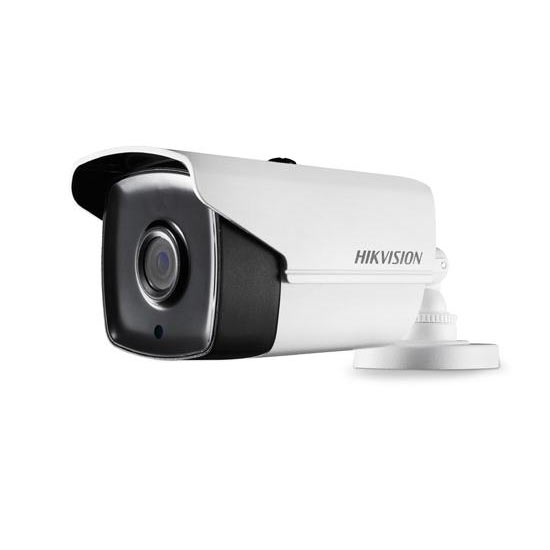

DS-2CE16F1T-IT5 Hikvision HD-TVI 3MP Camera with 80M EXIR Night Vision (Turbo3.0/12mm ONLY)
Product ID DS-2CE16F1T-IT5

DS-2CE16F1T-IT5 Hikvision HD-TVI 3MP Camera with 80M EXIR Night Vision (Turbo3.0/12mm ONLY)

Login for Price
0 reviews | Write a review
1 Year Warranty
HD-TVI CCTV
Clearance Item 1Yr Warranty

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 3 Megapixel high-performance CMOS
  • Analog HD output, up to 3MP resolution
  • True Day/Night, OSD Menu, Smart IR
  • EXIR technology, up to 80m IR distance
  • IP66 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI (Turbo 3.0) recorders only:

Camera
Image Sensor 3MP CMOS Image Sensor
Effective Pixels 2052(H) x 1536(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 3.6mm - Angle of View: 67.8° (Sold Out)
12mm - Angle of View: 20.2°
Lens Mount M12
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Video Frame Rate 1920 × 1536 @18fps
HD Video Output 1 Analog HD output
Synchronization Internal synchronization
S/N Ratio Over 62dB
up the Coax Support
Menu
Auto White Balance Auto/MWB
BLC Support
AGC Support
Language English / Chinese
Functions Digital Noise reduction; Mirror; SMART IR
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range up to 80m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)

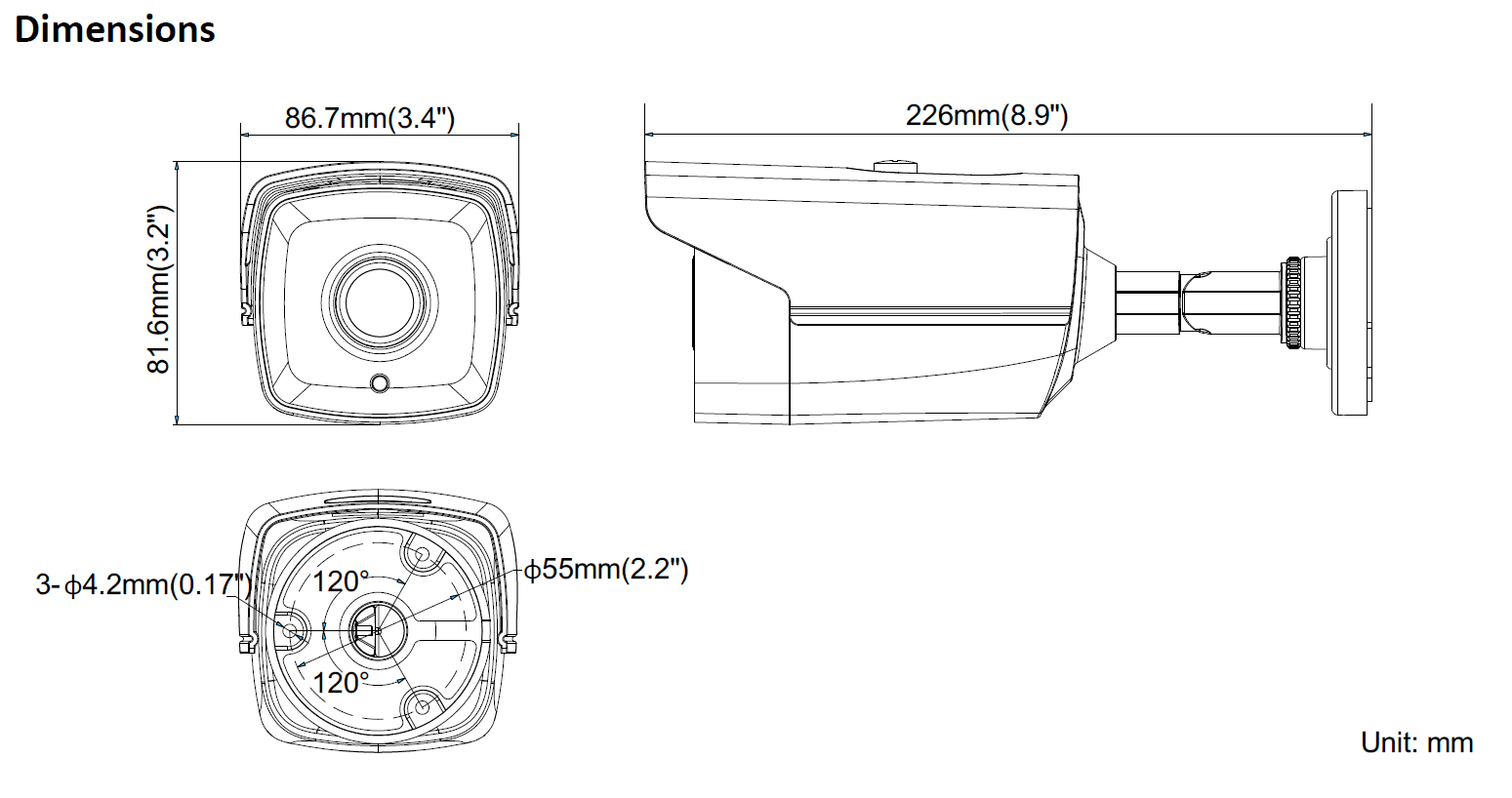

Dimensions 86.7mm × 81.6mm × 226mm
Weight Approx. 680g
