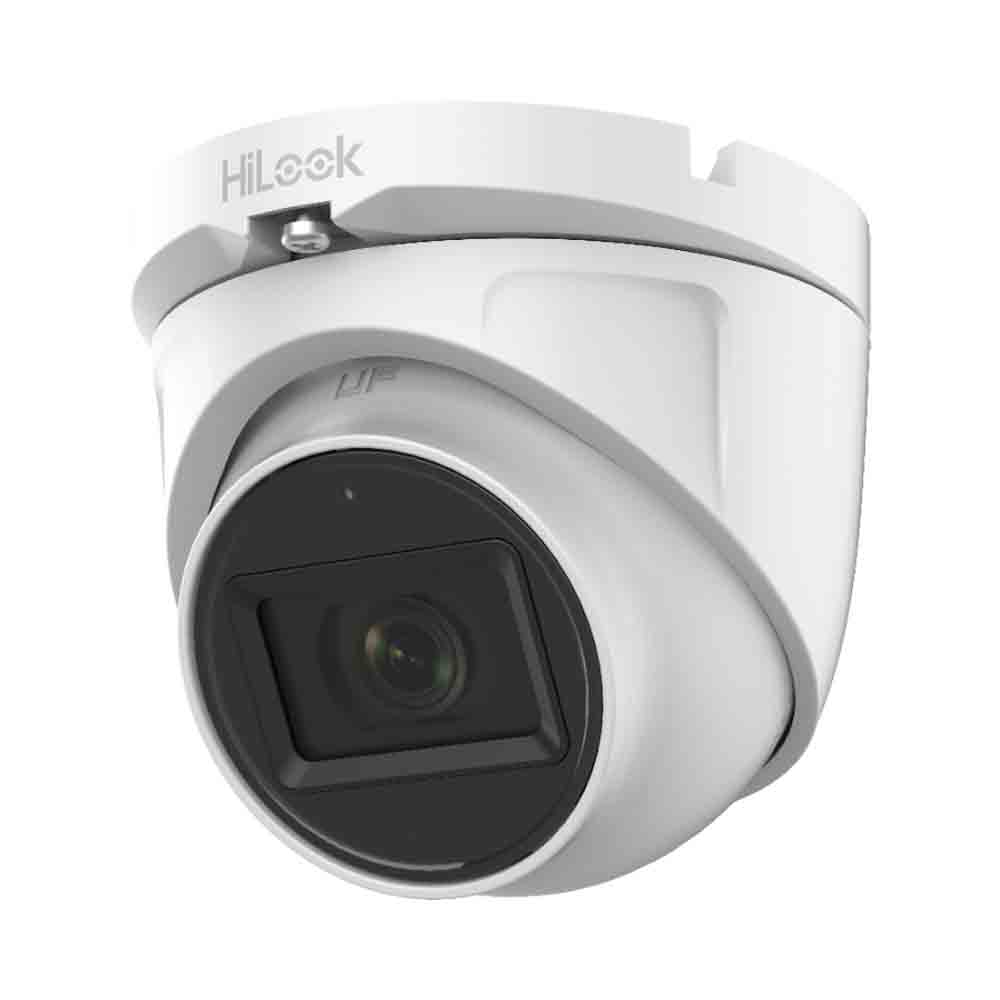

THC-T120-MS HiLook by Hikvision 2MP / 1080P Turret Camera with 20m IR Nightvision and Built in Mic (AoC / 2.8mm Lens)

Product ID THC-T120-MS

Rating: 3/5 based on 1 review

£21.50

In Stock 0

THC-T120-MS HiLook by Hikvision 2MP / 1080P Turret Camera with 20m IR Nightvision and Built in Mic (AoC / 2.8mm Lens)

Add Plug n Play Cable

20m

Add Power Supply

Yes

£21.50

Free Shipping

Summary
Full Spec

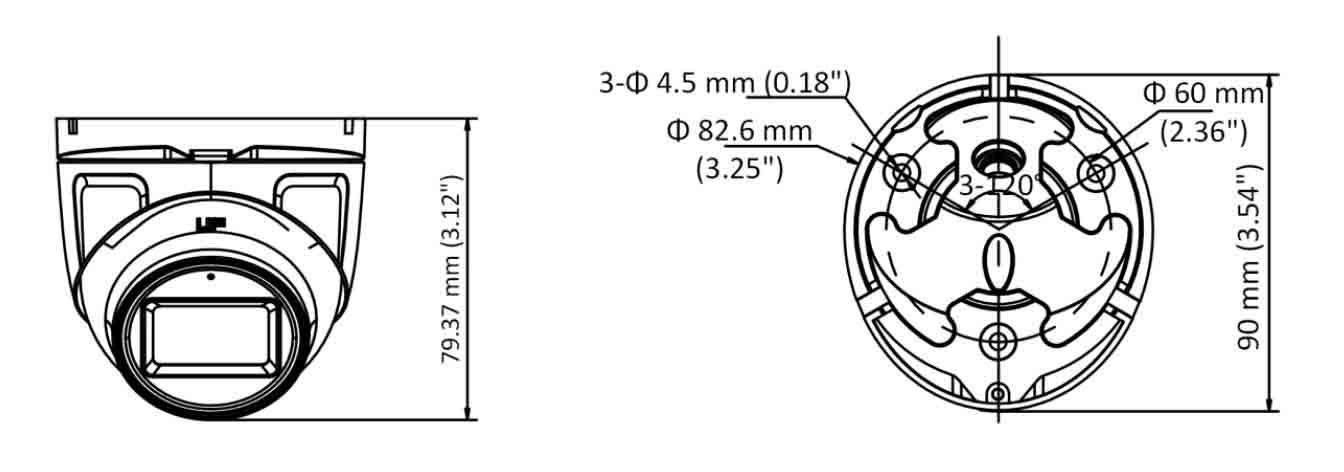

Diagram

Key Features

1080p turret camera
2.8mm lens, horizontal FOV: 106.4°
Smart IR, up to 20 m IR distanceWater resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together

The THC-T120-MS is a HiLook by Hikvision 1080p turret camera with a built in microphone, for HD-TVI (coax) CCTV systems.

The 2.8mm lens gives a wide 106 degree view, and infrared night vision reaches up to 20m. The microphone sends sound down the coax with the video, so there's no extra cable to run.

It works on TVI, AHD, CVI or analogue recorders and is weatherproof (IP66). For the audio to work, use it with a HiLook or Hikvision DVR that supports audio over coax (AoC).

Download

Manufacturers Spec Sheet (PDF)

Specifications
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
Menu
Day/Night Mode	Auto/Color/BW (Black and White)
DWDR (Digital Wide Dynamic Range)	Support
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Backlight Compensation	Support
Camera
Image Sensor	2 MP CMOS
Signal System	PAL/NTSC
Frame Rate	TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Resolution	1920 (H) × 1080 (V)
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Min. Illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens	2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field Of View	2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount	M12
Day & Night	Auto/Color/BW (Black and White)
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
Power Supply	12 VDC ± 25%
Power Consumption	Max. 3.7 W
Material	Metal
IR Range	Up to 30 m
Dimensions	82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12") Approx. 289.5 g (0.64 lb.)
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress Protection	IP66
