Hikvision DS-2CE12DFT-F28 2MP ColorVu Fixed Bullet Camera

Product ID DS-2CE12DFT-F28

0 reviews | Write a review

Trade Only Item

In Stock 0

Hikvision DS-2CE12DFT-F28 2MP ColorVu Fixed Bullet Camera

Trade Only Item

Free Shipping

Summary
Full Spec

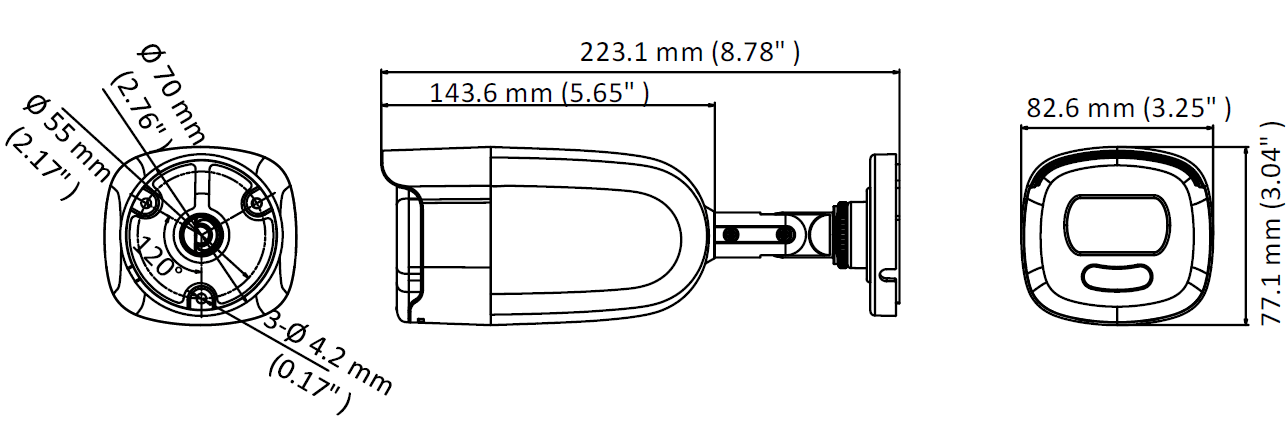

Diagram

About the DS-2CE12DFT-F28

The DS-2CE12DFT-F28 is a Hikvision 2MP (1080p) ColorVu bullet camera for HD-TVI (coax) CCTV systems.

ColorVu keeps the footage in colour day and night, with a white light up to 40m when it's dark. The 2.8mm lens gives a wide 104 degree view, it copes well with bright backgrounds (130dB WDR) and it's weatherproof (IP67). It works with TVI, AHD, CVI or analogue recorders.

Key Features

2 MP, 1920 x 1080 resolution
24-hour color image
130dB true WDR, 3DDNR
2.8 mm fixed focal lens, FOV: 104°
Smart Light, up to 40 m white light distance
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor	2 MP CMOS
Signal System	PAL/NTSC
Frame Rate	PAL: 1080p@25fps
Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm fixed lens
Horizontal Field Of View	2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
Lens Mount	M16
Day & Night	Color
WDR (Wide Dynamic Range)	130 dB
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Menu
Image Mode	STD/HIGH-SAT
AGC	Yes
Day/Night Mode	Color
White Balance	ATW/MANUAL
HLC	Yes
BLC (Backlight Compensation)	Yes
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart Light
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Condition	-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 4.2 W
Protection Level	IP67
Material	Front Cover: Metal Main Body: Plastic
IR Range	Up to 40 m
Communication	HIKVISION-C
Dimensions	223.1 mm × 77.1 mm × 82.6 mm
Weight	Approx. 436 g (0.96 lb.)
