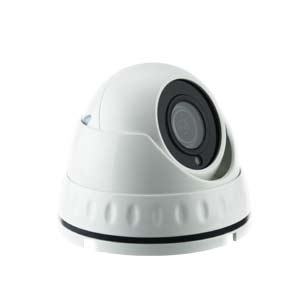

HDTCA5MPFD-W iSENTRY 5MP HD-TVI Eyeball Dome Camera with 20m IR Night Vision

HDTCA5MPFD-W iSENTRY 5MP HD-TVI Eyeball Dome Camera with 20m IR Night Vision

In Stock 3
0 reviews | Write a review
1 Year Warranty
Happy Bday
Happy Bday
Happy Bday

Free Shipping

  • Summary
  • Full Spec
  • Diagram


The HDTCA5MPFD (available in both white or grey) is a 5 Megapixel HD over Coax camera - compatible with HD-TVI (5MP) / AHD (5MP) / HD-CVI (4MP) and CVBS so should work with the latest super high definition DVRs but also the older analogue recorders. Please make sure your DVRs support 5MP resolutions before ordering.

This cameras offers exceptional value for money - most 5MP cameras are more than double the price.

The cameras can be installed indoors or outdoors and can be installed on walls or ceilings and pointed in the required direction.

Key Features

  • 1/2.5" 5MP CMOS sensor
  • TVI 5MP / AHD 5M / CVI 4M / CVBS 4 IN 1
  • 3.6mm Lens
  • IR Distance max 20m
  • IP66 outdoor, OSD & UTC support
Image Sensor 1/2.5" 5MP CMOS sensor
Image Resolution 5MP / 960H
Effective Pixels 5M: 2592 x 1944 / 4M: 2560 x 1440
Electronic Shutter 1/25s ~ 1/50,000s
S/N Ratio more than 50dB
Scanning System Progressive Scan
Focus Length 3.6mm
Focus Control Fixed
Lens Type Fixed
Pixels 5M Pixels
Auto Iris Support No
Night Vision
Infrared LED 14µ x 18PCS
Infrared Distance up to 20M
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Camera Features
Starlight N/A
Day/Night Yes
OSD Menu Yes
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction DNR
Picture Adjustment Yes
OSD Support Yes
Dip Switch N/A
Housing Metal, IP66
Bracket No
Dual Voltage No
IR Cut Filter Yes
Heater No
Audio No
Operation Temperature -10°C - 50°C RH95% Max
Storage Temperature -20°C - 60°C RH95% Max
Power Source DC12V 550mA

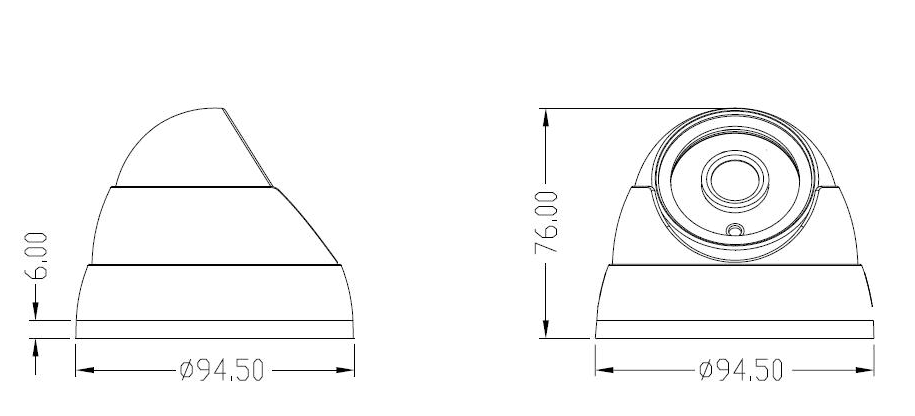

Dimension ¢94.5 x 76(H)mm
Weight 450g
