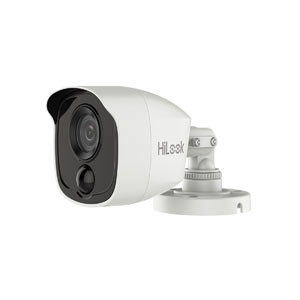

THC-B120-MPIRL HiWatch by Hikvision HD-TVI 1080P Metal Bullet Camera with 20M IR Night Vision, PIR Sensor and White Light Alarm
Product ID THC-B120-MPIRL

THC-B120-MPIRL HiWatch by Hikvision HD-TVI 1080P Metal Bullet Camera with 20M IR Night Vision, PIR Sensor and White Light Alarm

£25.00
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

Description

The THC-B120-MPIRL offers 1080P HD resolution at very competitive price, ideal for home or small business security. The camera is nice and discreet, one of the smallest HD cameras available - it can be installed indoors or outdoors and provides night vision up to a maximum of 20 metres.

The THC-B120-MPIRL has a 2.8mm lens which provides an angle of view of 106° - suitable for many applications but on top of these great features this camera also has a built in PIR sensor and white light LED.

This has two great benefits, the PIR sensor will cut down on the false alerts that all CCTV suffers from (especially at night) and then the White Light will notify the intruder that they have triggered an alarm and of course light them up for anyone in the area to easily notice (of course if the white light was not wanted there is the option to disable it).

Please note, to use the PIR sensor as a recording trigger you will need to use one of the hikvision / HiLook "Q" or "U" model DVRs.

Key Features

  • 2 Megapixel High Performance CMOS
  • 1920 × 1080 resolution
  • 2.8mm fixed lens - FOV 106.4°
  • PIR detection, visual alarm
  • Day/Night switch
  • up to 20m EXIR distance
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with HiLook "Q" or "U" model DVRs.

Camera
Image Sensor 2 MP CMOS image sensor
Effective Pixels 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 106.4°
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Menu
White Light Alarm/Off
AGC High/Medium/Low
D/N Mode Auto/Color/BW (Black and White)
BLC Support
DWDR Support
Language English
Functions Brightness, Sharpness, DNR, Mirror
Interface
HD Video Output 1 Analog HD output
General
Operating Conditions -40 °C to 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 3.6W
Protection level IP66
Material Metal
IR Range up to 20m

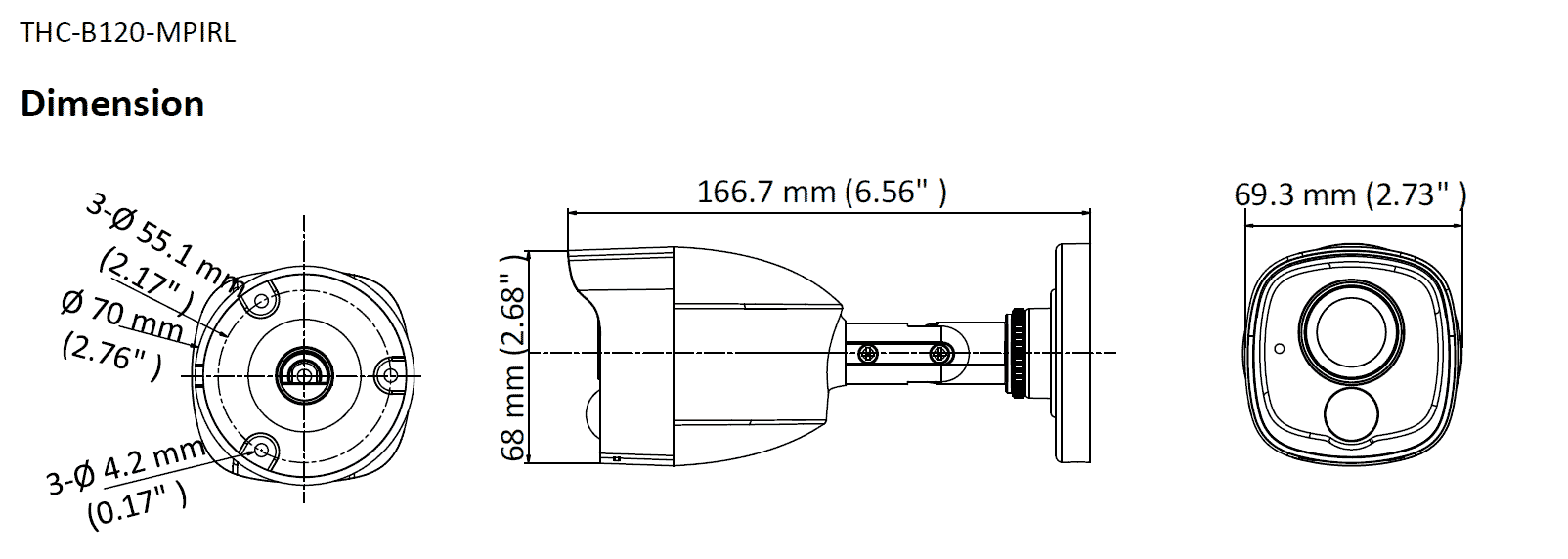

Dimensions 166.7 mm × 68 mm × 69.3 mm
Weight Approx. 296g
