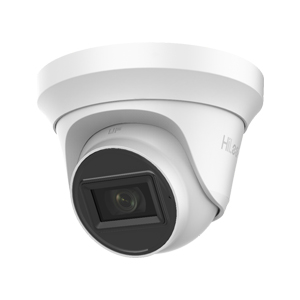

THC-T220-MS HiLook by Hikvision 2 MP / 1080P Turret Camera with 40m IR Nightvision and Built in Mic (AoC / 2.8mm Lens)

Product ID THC-T220-MS

0 reviews | Write a review

£24.00

THC-T220-MS HiLook by Hikvision 2 MP / 1080P Turret Camera with 40m IR Nightvision and Built in Mic (AoC / 2.8mm Lens)

Add Plug n Play Cable

20m

Add Power Supply

Yes

£24.00

Quantity

Free Shipping

Summary
Full Spec

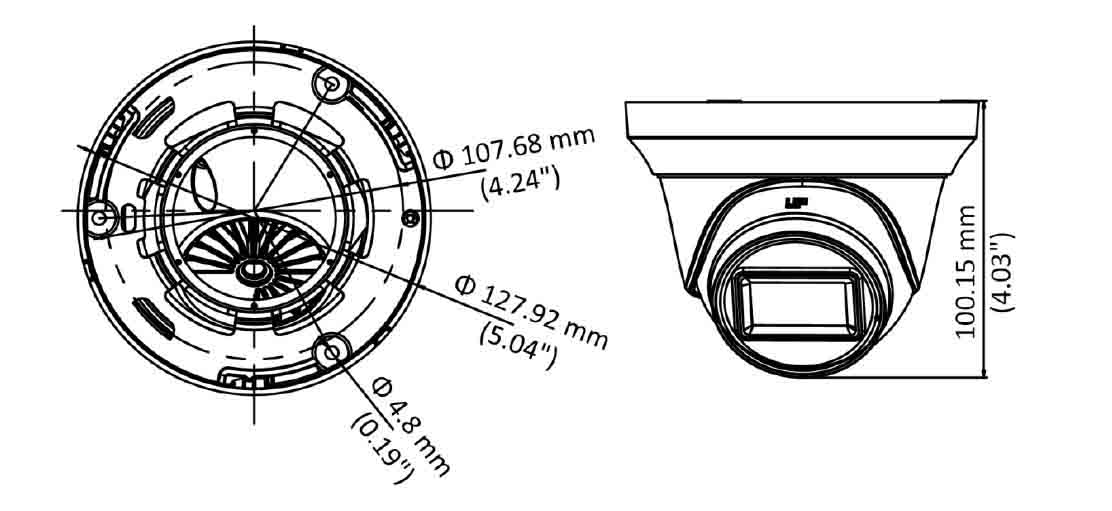

Diagram

Key Features

1080p turret camera
2.8mm lens, horizontal FOV: 106.4°
Smart IR, up to 40 m IR distanceWater resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together

The THC-T220-MS is a HiLook by Hikvision 1080p turret camera with a built in microphone, for HD-TVI (coax) CCTV systems.

The 2.8mm lens gives a wide 106 degree view, and infrared night vision reaches up to 40m. The microphone sends sound down the coax with the video, so there's no extra cable to run.

It works on TVI, AHD, CVI or analogue recorders and is weatherproof (IP66). For the audio to work, use it with a HiLook or Hikvision DVR that supports audio over coax (AoC).

Download

Manufacturers Spec Sheet (PDF)

Specifications
Camera
Image Sensor	2 MP CMOS
Signal System	PAL/NTSC
Resolution	1920 (H) × 1080 (V)
Frame Rate	TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Min. illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm, 3.6 mm, 6 mm fixed lens
Field of View	2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount	M12
Day & Night	ICR
WDR (Wide Dynamic Range)	Digital WDR
Audio	Built-in mic
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image Mode	STD/HIGH-SAT
AGC	Yes
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	Auto/Manual
AE (Auto Exposure) Mode	DWDR/BLC/HLC/Global
Noise Reduction	2D DNR
Language	English
Function	Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25%
Power Consumption	Max. 3.7 W
Protection Level	IP66
Material	Metal
IR Range	Up to 40 m
Communication	HIKVISION-C
Dimensions	Ø 127.92 mm × 100.15 mm (Ø 5.04" × 4.03")
