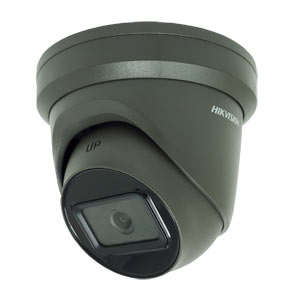

DS-2CD2365G1-I Hikvision Dark Fighter 6MP 120dB WDR IP Turret Camera with 30m EXIR Night Vision & PoE in Grey
Product ID DS-2CD2365G1-I-G

DS-2CD2365G1-I Hikvision Dark Fighter 6MP 120dB WDR IP Turret Camera with 30m EXIR Night Vision & PoE in Grey

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Description

The Hikvision DS-2CD2365G1-I-G is a 6 megapixel (3072 × 2048) Ultra HD 6MP Turret camera with 120dB Wide Dynamic Range. The camera has built in IR with a range of up to 30m and is housed in an IP67 rated housing suitable for indoor or outdoor use. Some of the great features this camera includes are triple streaming, day/night function and wide dynamic range. The camera can be powered over Ethernet (PoE) for quick and easy installation when used with the plug and play features of our Hikvision NVRs.

This is an amazing value 6MP Camera - that provides 3 times the image quality of a 1080P HD camera!.

On top of this stunning resolution the DS-2CD2365G1-I-G also supports Micro SD card recording, so you can not only record on to your Hikvision NVR but you can have a second short term recording taking place on the camera itself. Perfect for high risk areas or as back up in case the NVR is compromised.

Last but not least this is part of the new "Powered by DarkFighter" range from Hikvsion meaning they have better night vision and can soemtimes can even stay in colour all night due to the very low lux levels of 0.008lux.

Key Features

  • Up to 6 megapixel high resolution
  • Max. 3072 × 2048 @ 20fps
  • 2.8mm Lens
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • IR illuminators: up to 30m
  • DC12V & PoE (802.3af)
  • Support on-board storage, up to 128 GB (Not Included)
  • IP67
  • Powered by Darkfighter

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Time 1/3s ~ 1/100,000s
Slow Shutter Support
Lens 2.8mm, horizontal FOV: 99°
4mm, horizontal FOV: 80°,
Angle adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day & Night IR cut filter
Digital noise reduction 3D DNR
WDR 120 dB WDR
Compression Standard
Video compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Bit rate 32 Kbps ~ 16 Mbps
Triple Streams Yes
Max. Image Resolution 3072 x 2048
Frame rate 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
Image Enhancement BLC/ 3D DNR/ HLC
Image settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, Anti-Flicker, three streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), ISAPI
Interface
Communication interface 1 RJ45 10M / 100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SVC H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Exception Detections Scene change detection
Face Detection Yes
General
Operating Conditions -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption 12 VDC, 0.5 A, max: 6 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 7.5 W
Weather Proof Ratings IP67
Impact Protection n/a
IR Range up to 30m
Dimensions Camera: Φ138.3 × 125 mm
Weight Approx. 725g

dvr dimensions
