| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8 mm, horizontal field of view 105.8° [2.0 mm (126°), 4 mm (83°), coming soon] |
| Day & Night |
ICR |
| Digital noise reduction |
3D DNR |
| WDR |
120dB |
| Compression Standard |
| Video compression |
H.264 / MJPEG / H.264+ |
| H.264 code profile |
BaseLine Profile/Main Profile |
| Bit rate |
32 Kbps ~ 8 Mbps |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate |
G.711/G.722.1/G.726/MP2L2 |
| Dual Stream |
Yes |
| Image |
| Max. Image Resolution |
2688 × 1520 |
| Frame rate |
50Hz: 20fps (2688 × 1520), 25fps (1920 × 1080, 1280×720) |
| Image settings |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Day / Night Switch |
Support auto, scheduled, and triggered by alarm input |
| Network |
| Network Storage |
Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
| Alarm trigger |
Intrusion detection, Defocus detection, Motion detection, Face detection, line crossing detection,
Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Security |
One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface |
| Audio |
Internal Microphone and Speaker |
| Communication interface |
1 RJ45 10 M / 100 M Ethernet port |
| Alarm Input |
1 |
| Alarm Output |
1 |
| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button |
Yes |
| Wi-Fi |
| Wi-Fi standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency range |
2.4 GHz ~ 2.4835 GHz |
| Channel bandwidth |
Support 20/40 MHz |
| Modulation Mode |
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power |
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm |
| Receive Sensitivity |
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical) |
| Transmission rate |
11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range |
50m(depend on environment) |
| Protocols |
802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| General |
| Operating Conditions |
-10 °C ~ 40 °C (14°F ~ 104 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 10% , PoE (802.3af) |
| Power Consumption |
Max. 5W |
| Weather Proof Ratings |
n/a |
| IR Range |
up to 10m |

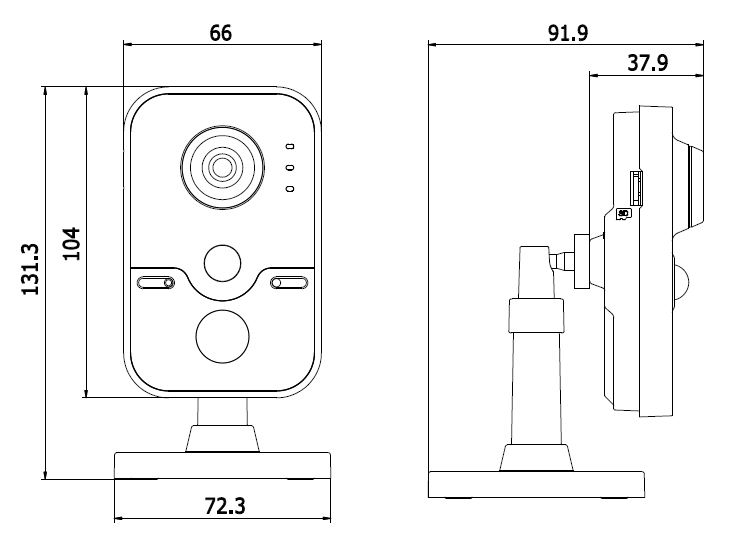

| Dimensions |
72.3 x 91.9 x 131.3 |
| Weight |
Approx. 400g |
