| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.005 Lux @(F1.2, AGC ON), 0 Lux with IR
Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Angle adjustment |
Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
| Day & Night |
ICR |
| Digital noise reduction |
3D DNR |
| WDR |
120 dB WDR |
| Lens |
| Focal Length |
2.8mm |
| Aperture |
F1.6 |
| FOV |
4mm: Horizontal field of view: 87° |
| IR |
| IR Range |
up to 10m |
| Wavelength |
850nm |
| Compression Standard |
| Video compression |
Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264 |
| H.264 type |
Main Profile/High Profile |
| H.264+ |
Main stream supports |
| H.265 Type |
Main Profile |
| H.265+ |
Main stream supports |
| Video bit rate |
32Kbps to 16Mbps |
| Audio Compression |
n/a |
| Audio Bit Rate |
n/a |
| Smart Feature-set |
| Behavior Analysis |
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Exception Detection |
Scene change detection |
| Face Detectionl |
Yes |
| Region of Interest |
Support 1 fixed region for main stream and sub-stream separately |
| Image |
| Max. Image Resolution |
2048 x 1536 |
| Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 720) |
| Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| Image settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Image Enhancement |
BLC/3D DNR/HLC |
| Day/Night Switch |
Day/Night/Auto/Schedule |
| Network |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger |
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, Ipv6 |
| General Function |
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View |
Up to 6 channels |
| User/Host |
Up to 32 users
3 levels: Administrator, Operator and User |
| Client |
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser |
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Interface |
| Communication interface |
1 RJ45 10 M / 100 M Ethernet interface |
| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| SVC |
Support H.264 and H.265 encoding |
| Reset Button |
Yes |
| General |
| Operating Conditions |
-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% , PoE (802.3af, class 3) |
| Power Consumption |
Max. 7.5W |
| Impact protection |
up to IK08 |
| Weather Proof Ratings |
IP66 |

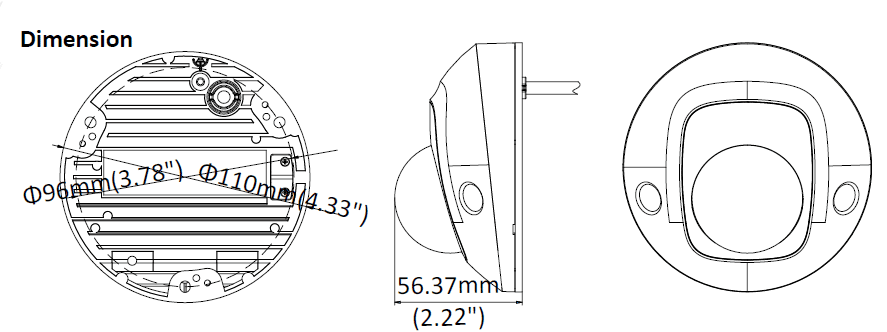

| Dimensions |
Φ110mm × 56.4mm |
| Weight |
Approx. 400g |
