HiLook by Hikvision ColorVu Lite THC-B159-MS 5MP Full Time 24/7 Colour (White Light) Bullet Camera with Built in Mic (AoC ONLY)

Product ID THC-B159-MS

0 reviews | Write a review

£44.00

HiLook by Hikvision ColorVu Lite THC-B159-MS 5MP Full Time 24/7 Colour (White Light) Bullet Camera with Built in Mic (AoC ONLY)

Add Plug n Play Cable

20m

Add Power Supply

Yes

£44.00

Quantity

Free Shipping

Summary
Full Spec
Diagram

About the THC-B159-MS

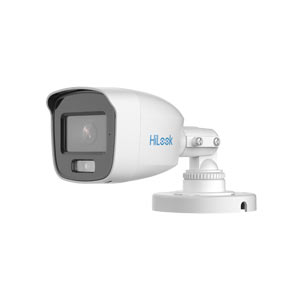

The THC-B159-MS is a HiLook by Hikvision 3K (5MP) ColorVu Lite mini bullet camera with a built in microphone, for HD-TVI (coax) CCTV systems.

The 2.8mm lens gives a very wide 113 degree view. ColorVu Lite keeps the footage in colour day and night, with a white light up to 20m when it's dark. The microphone only works over coax (AoC), so you'll need a DVR that supports audio over coax. It's weatherproof (IP66).

Key Features

5MP (3K), 2960 x 1665 resolution
24/7 color imaging with F1.0 aperture
High quality audio with audio over coaxial cable
2.8mm fixed lens - FOV: 113°
Up to 20m white light distance for bright night imaging
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP66
Mini Bullet Shape

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor	3K CMOS
Signal System	PAL/NTSC
Resolution	2960 (H) × 1665 (V)
Frame Rate	TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC
Min. illumination	0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm fixed lens
Horizontal Field of View	2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°
Lens Mount	M12
Light Alarm	Solid Light Alarm (White Light)
Day & Night	24/7 Color Imaging
WDR (Wide Dynamic Range)	Digital WDR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White Light	Auto/ Off
Image Mode	STD/HIGH-SAT/HIGHLIGHT
AGC	Yes
Day/Night Mode	Color
White Balance	Auto/Manual
AE (Auto Exposure) Mode	DWDR,BLC,HLC,Global
Noise Reduction	2D DNR
Language	English
Function	Brightness, Sharpness, Anti-Banding
Lighting Mode	White Light
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 2.9 W
Protection Level	IP66
Material	Metal
White Light Range	Up to 20 m
Dimensions	161.2 mm × 70 mm × 70 mm
Weight	Approx. 265g (0.58 lb)
