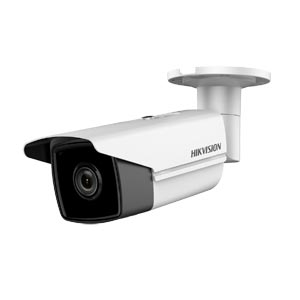

Camera |
Image Sensor |
1/2.5" Progressive Scan CMOS |
Min. Illumination |
Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR |
Shutter Time |
1/3s ~ 1/100,000s |
Slow Shutter |
Support |
Lens |
4 mm, horizontal field of view: 88° |
Angle adjustment |
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
Day & Night |
IR cut filter with auto switch |
Digital noise reduction |
3D DNR |
WDR |
120 dB WDR |
Compression Standard |
Video compression |
Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264 |
H.264 type |
Main Profile/High Profile |
H.264+ |
Main stream supports |
H.265 Type |
Main Profile |
H.265+ |
Main stream supports |
Bit rate |
32 Kbps ~ 16 Mbps |
Image |
Max. Image Resolution |
2688 × 1520 |
Frame rate |
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
Sub Stream |
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
Third Stream |
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) |
Image Enhancement |
BLC/3D DNR/ROI/HLC |
Image settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
ROI |
Support 1 fixed region for each stream, and face dynamic tracking |
Day/Night Switch |
Day / Night / Auto / Schedule |
Network |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
System Compatibility |
ONVIF (Profile S, Profile G), ISAPI |
Interface |
Communication interface |
1 RJ45 10M / 100M Ethernet interface |
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button |
Yes |
Smart Feature-set |
Behavior Analysis |
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
Line Crossing Detection |
Cross a pre-defined virtual line |
Intrusion Detection |
Enter and loiter in a pre-defined virtual region |
Unattended Baggage |
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal |
Objects removed from the pre-defined region, such as the exhibits on display |
Exception Detections |
Scene change detection |
Recognition |
Face Detection |
General |
Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption |
Max. 12.9W |
Weather Proof Ratings |
IP67 |
IR Range |
up to 80m |
Dimensions |
Camera: Φ104.8 × 299.7 mm
Package: 386 × 156 × 155 mm |
Weight |
Approx. 1200g |
