Product ID DS-2CE56H0T-ITME-G

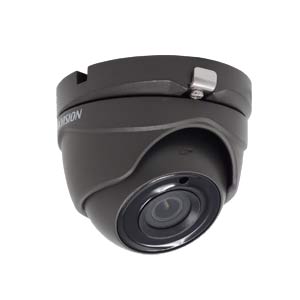

DS-2CE56H0T-ITME-G Hikvision HD-TVI 5MP Mini Dome Camera with 20M EXIR Night Vision (PoC / Grey / 2.8mm Lens)

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 5 Megapixel high-performance CMOS
  • 2.8mm fixed lens - FOV 85.5°
  • 2560 × 1944 resolution
  • True Day/Night, OSD Menu, DNR, Smart IR
  • EXIR technology, up to 20m IR distance
  • IP67 weatherproof
  • (Power over Coax)
  • Up the Coax (HIKVISION-C)


Manufacturers Spec Sheet (PDF)


Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Image Sensor 5MP CMOS Image Sensor
Effective Pixels 2560(H) x 1944(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 94.4°
Lens Mount M12
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Video Frame Rate 2560 × 1944@20fps, 2560 × 1944@12.5fps
2560 × 1440@30fps, 2560 × 1440@25fps (default)
1920 × 1080@30fps, 1920 × 1080@25fps
* Under the PoC mode, 2560 × 1944@12.5fps is not available.
Synchronization Internal synchronization
AGC Support
D/N Mode Auto / Color / B/W
Auto White Balance Auto/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English / Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Video Output 1 HD analog output
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC /
Power Consumption Max. 4.5W
Weather Proof Ratings IP67
Material Metal
IR Range up to 20m
Communication Up the coax
Protocol: HIKVISION-C (TVI output)
Dimensions 91mm × 82.6mm × 68.3mm
Weight Approx. 350g
